Building industry ,structural roofing Color Coated PPGI/PPGL/Ppal/Gi/Gl/Sheet/Coil/Plate/Panel Strip/Roll AZ coating

Categories Color Coated Steel Coil
Brand Name: Decho Building Materials
Model Number: S320GD PRE-PAINTED GAVALUME STEEL
Certification: MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV
Place of Origin: China
MOQ: 25 TONS
Price: USD 700~1050
Payment Terms: L/C, T/T
Supply Ability: 500 tons per day
Delivery Time: 30~45days
Packaging Details: Standard Exporting Packing(Eye to Side) , No pallet Vertical Packing (Eye to Sky) with Wooden Pallet, Horizontal Packing (Eye to Side) with Wooden Pallet
Color: RED
thickness: 0.5mm~1.2mm
Z-coating: AZ50~180g/㎡
steel grade: S320GD
STEEL GRADE: DX51D
PAINT SYSTEM: SMP
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Building industry ,structural roofing Color Coated PPGI/PPGL/Ppal/Gi/Gl/Sheet/Coil/Plate/Panel Strip/Roll AZ coating

Building industry ,structural roofing Color Coated PPGI/PPGL/Ppal/Gi/Gl/Sheet/Coil/Plate/Panel Strip/Roll AZ coating

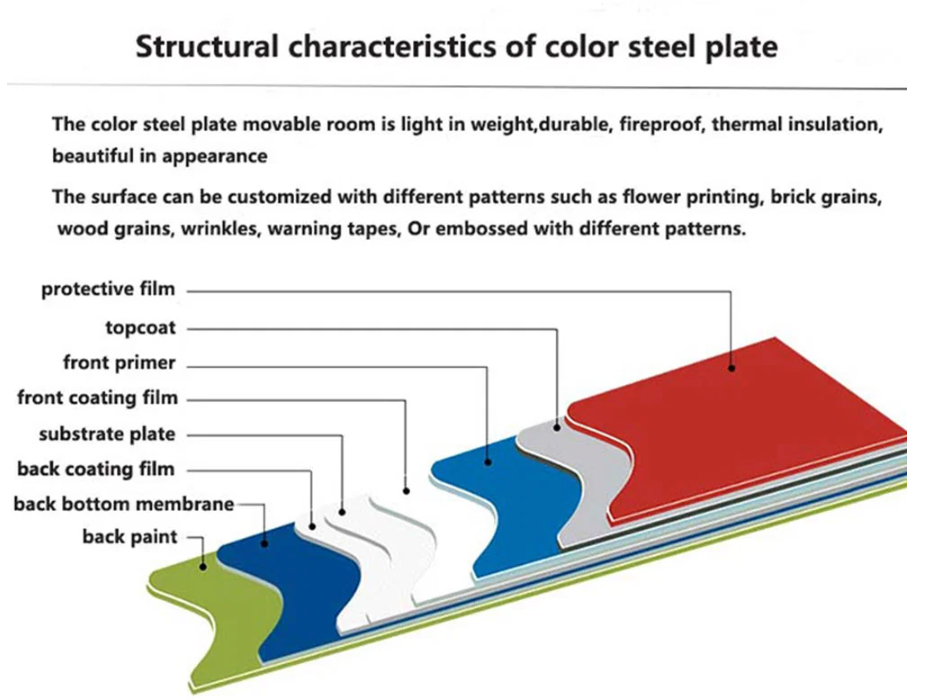

Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.
Classification


According to the substrate: cold rolled substrate, hot-dip galvanized substrate, electro-galvanized substrate, aluminum zinc plated substrate, etc.


According to the type of coating: polyester, silicone-modified polyester, vinylidene fluoride (fluorocarbon), plastisol.


According to the color: it can be divided into many kinds according to the user's requirements, such as white-gray, scarlet, sea-orchid, porcelain-orchid, withered-yellow, ivory-white, deep-bean-green, sky-orchid, ivory-white and so on.


According to the surface state: coated board, embossed board, printed board, etc.

Product features
(1) Longer service life than galvanized sheet metal;
(2) Good heat resistance than galvanized steel at high temperatures; not easy to change color;
(3) Good heat reflection;
(4) Processing and coating properties similar to hot-dip galvanized steel; (5) Good welding properties.
(5) Good welding performance.
(6) Excellent economy, performance and competitive price. As a result, architects, engineers and manufacturers widely use zinc-aluminum coated steel sheets in industrial buildings, steel structures and civil engineering equipment, including garage doors, gutters and roofs.

Product Description

NamePPGI steel coil
Type of
substrate
Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled
steel, Aluminum
Thickness0.125-2mm
ToleranceThickness: ± 0.01mm
Width600-1250mm ( Normal:1250, 1200,1000,914 mm)
Top Paint10-25 micron(Normal:10-12mic)
Back paint5-12 micron(Normal:5-7mic)
CoatingZn coatingAZ coating
30-400gsm30-400gsm
Coil weight3-5 tons or as your requirement.
Coil ID508/610 mm
GradeGalvanizedGalvalume
SGCC/DX51D+Z, DX52D+Z,
SGCD/DX53D+Z,SGCE/DX54D+Z,
SGCH.......
DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,SGLC4
40,SGLHC........
Coating typeTop paint: PE, SMP, HDP, PVDF, PU
Functions: Decorative, Machinability, Weather resistance, Scrath
resistance, Stain resistance, Chemical resistance, Adhesion resistance
Primer paint: Polyurethane, Epoxy, PE
Functions:Machinability, Corrosive resistance, Adhesion, Scrath
resistance
Back paint: Epoxy, Modified polyester
Functions: Scrath resistance, Bending adhesion, Corrosive resistance
Type of
coating
process
Front: Doulbe coated & double drying
Back: Double coated & double drying, single coated & double drying
Double coated & double drying is used for corrugated sheet
Double coated & single drying is for sandwich panel
PackingStandard export package .Plastic film in the first layer,second layer is Kraft
paper. Third layer is galvanized sheet.
ApplicationBuilding industry ,structural use, roofing, commercial use ,household
appliance, industry facilities, office buildings

Structural GradesCMnPSAlSiCuNiCrMoVCbTiN
30,33,36,400.250.90.0350.040.20.20.150.060.0080.0080.025
36T2,45-800.251.350.0350.040.20.20.150.060.0080.0080.025
45T2.02- 0.08.30- 1.0.03- .070.025.02- .080.60.20.20.150.060.0080.0080.025.01- .03

HSLA GradesCMnPSAlSiCuNiCrMoVCbTiN
45C10.221.350.040.040.20.20.150.060.0050.0050.005
45C20.151.350.040.040.20.20.150.060.0050.0050.005
50C10.231.350.040.040.20.20.150.060.0050.0050.005
50C2 & 55C20.151.350.040.040.20.20.150.060.0050.0050.005
55C10.251.350.040.040.20.20.150.060.0050.0050.005
60C1 & 65C10.261.50.040.040.20.20.150.060.0050.0050.005
60C2 & 65C20.151.50.040.040.20.20.150.060.0050.0050.005
70C10.261.650.040.040.20.20.150.160.0050.0050.005
70C20.151.650.040.040.20.20.150.160.0050.0050.005
