| Categories | Magnesium Alloy Plate |
|---|---|
| Brand Name: | high broad |
| Model Number: | AZ31 H24 |
| Certification: | ISO ASMTB90 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | depends on order quantity |
| Payment Terms: | L/C, D/A, T/T, Western Union, Paypal |
| Supply Ability: | 5 mt / month |
| Delivery Time: | 7 days |
| Packaging Details: | in carton |
| Grade: | ZK61A M1A MB6 MB3 MB1 MA8 MA1 MA14 MA5 MA2 |
| Engrave: | Magnesium Alloy Sheet AM60B for Engraving Stamping |
| application: | luggage nameplate, bags |
| Dimensions: | customized |
| Company Info. |
| China Hunan High Broad New Material Co.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

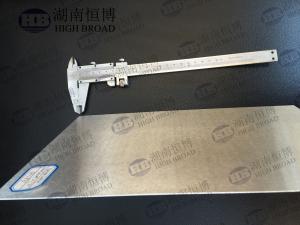

ASMTB90 Mg Alloy Az31b Magnesium Plate Sheet 5mm X 250 Mm X 500mm
Size
Magnesium Alloy Sheet AM60B for Etching Engraving Stamping
laser engraving sheet/magnesium alloy sheet az91d/magnesiumprinting
plate
Elements | AZ31B | AZ61A | AZ91D | |||
Min % | Max % | Min % | Max % | Min % | Max % | |
Al | 2.50 | 3.50 | 5.80 | 7.20 | 8.50 | 9.50 |
Zn | 0.60 | 1.40 | 0.45 | 1.50 | 0.45 | 0.90 |
Mn | 0.20 | 1.00 | 0.15 | 0.50 | 0.17 | 0.50 |
Si | - | 0.10 | - | 0.10 | - | 0.08 |
Fe | - | 0.005 | - | 0.005 | - | 0.004 |
Cu | - | 0.05 | - | 0.05 | - | 0.025 |
Ni | - | 0.005 | - | 0.005 | - | 0.001 |
Ca | - | 0.04 | - | - | - | - |
Others, Total | - | 0.3 | - | 0.3 | - | 0.3 |
Mg | Balance | Balance | Balance | Balance | Balance | Balance |
Product specifications: Extruded sheet: thickness 5mm—105mm, width
10mm—400mm, can be customized for special needs
Rolled plates: thickness 0.3mm-5mm, width 10mm-500mm, special
requirements can be customized. Product application: Magnesium
alloy plate is widely used in aerospace, electronics, 3C, chemical
and other industries.
Because magnesium alloy has good thermal conductivity and low
cutting force, the heat dissipation rate during processing is very
fast, so the tool life is long and the amount of sticking is small.
As a result, tool costs can be reduced, and the downtime required
for tool replacement can be shortened. Because magnesium is easy to
cut, its chip breaking performance is very good, under normal
circumstances, only one finishing process can achieve the required
final surface finish.

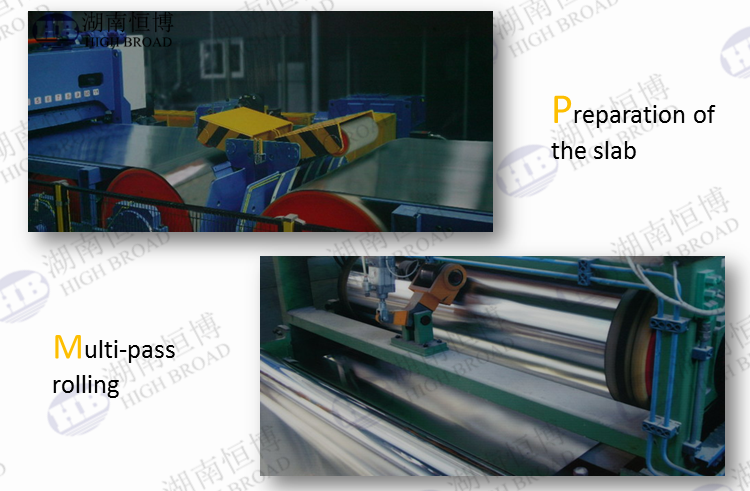

Magnesium alloy strips are produced by hot rolling ingots and
coils, which are flexible in production and can produce ultra-wide
and large-size magnesium strips to meet the needs of various
industries. Magnesium alloy machined plates are used as vibration
parts, and their service life is 5 times that of aluminum parts.
Magnesium alloy plates-grades AZ31, AZ91, MB8, ZK61M. The thickness
is: 0.5mm-200mm.
