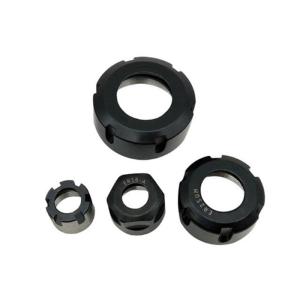

High Precision ER32um Clamping Nuts For Tool Holding Systems Er Collet Nut

ER32UM collet nut is a type of nut used in conjunction with ER32 collets in machining operations. It is designed to securely hold the collet in place and provide a clamping force to grip the workpiece or tool. The ER32 collet nut typically has external threads that match the internal threads of the collet chuck, allowing it to be tightened or loosened to secure or release the collet. It is commonly used in milling machines, lathes, and other machining equipment.

ER32um Nut Product introduction:
1. Clamping Nut Material: 42CrMo or 20CrMTi;
2. High Precision Clamping Nut Heat treatment hardness: 50-53HRC;
3. ER Collet Nut Cryogenic treatment and thermal aging treatment are used in the process to improve the accuracy and dimensional stability.
4. Thread and 30 degree inclined surface are processed once. The tolerance grade of thread is 4H, and the accuracy is gradually tested.
5. Preset dynamic balance G6.3 18000 RPM G2.5 20000/30000 RPM;
6. ER Nut Surface sandblasting, coating treatment, improve surface hardness, wear resistance, improve cleanliness, better rust and corrosion resistance, more stable accuracy, smoother surface, more comfortable feel, more beautiful appearance;

ER collet nut is a type of nut used in conjunction with ER collets in tool holding systems. ER collets are commonly used in milling and turning machines to securely hold cutting tools or workpieces.

The ER collet nut is threaded onto the collet and tightened to secure the tool or workpiece in place. It typically has a hexagonal shape for easy tightening with a wrench or collet nut wrench.

ER collet nuts come in various sizes and types to match the corresponding collet size. They are typically made of high-quality steel or other durable materials to ensure reliable and long-lasting performance.

Overall, the ER collet nut plays a crucial role in tool holding systems, providing a secure and reliable connection between the collet and the tool or workpiece.

CNC engraving machine Carbide nut fastener fixture ,Selection of high quality spring steel, has a higher flexibility and service life.The clamping force, clamping range, high precision, used for boring, milling, drilling, tapping, grinding and engraving processing. ER collet all through high precision grinding, precision manufacturing line with the German DIN 6499

ACCESSORIES.pdf

JINING QINFENG MACHINERY HARDWARE CO.,LTD Chinese Machine ToolAssociation member units,production of spring chuck`s professional factory , known as machine tool accessory manufacturing experts. The fixed assets of 10million yuan,with CNC Lathes,CNC milling machines,machining centers,high-precision grinding,cylindrical griding, etc.more than 180 sets of advanced equipment.Self-development, Production of collets,milling chuck,quick change chuck ,tapping chucks,machine tool accessories and other top-selling across the country To, and exported to the U.S.,JAPAN,Taiwan and other countries and regions, and can take over fro m sample to map processing. Advanced production Equipment, strong technical force and perfect management system, excellent product quality ,the majority of uses. We always adhere to the [dry quality, fist class" business policy and [the pursuit of customer satisfaction is the biggest,"the service Business philosophy.

JINING QINFENG MACHINERY HARDWARE CO.,LTD. is willing to work with friends to create a better tomorrow. Main product o services: machine tool accessories;milling chuck series; top series; collet series; tapping chuck system column; quick-change chuck series; adjustable sets of series; to sample processing. Industry: machine tool accessories chuck top, thimble CNC tool. JINING QINFENG MACHINERY HARDWARE CO.,LTD, the company all staff sincerely hope to establish business relations with customers from home and abroad on the basis of mutual benefit, for the development of bilateral economic, hand in hand, create brilliance.
