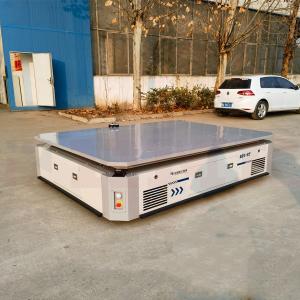

5 Ton automated guided AGV handling robot
AGV, also known as Automatic Guided Vehicle, is an intelligent
mechanical device that can operate autonomously without human
intervention. AGVs have unique characteristics such as automatic
navigation, intelligent scheduling, precise positioning, safety
performance, scalability, and flexibility, making them widely used
in the medical, electronic, food, logistics, and industrial
production industries.

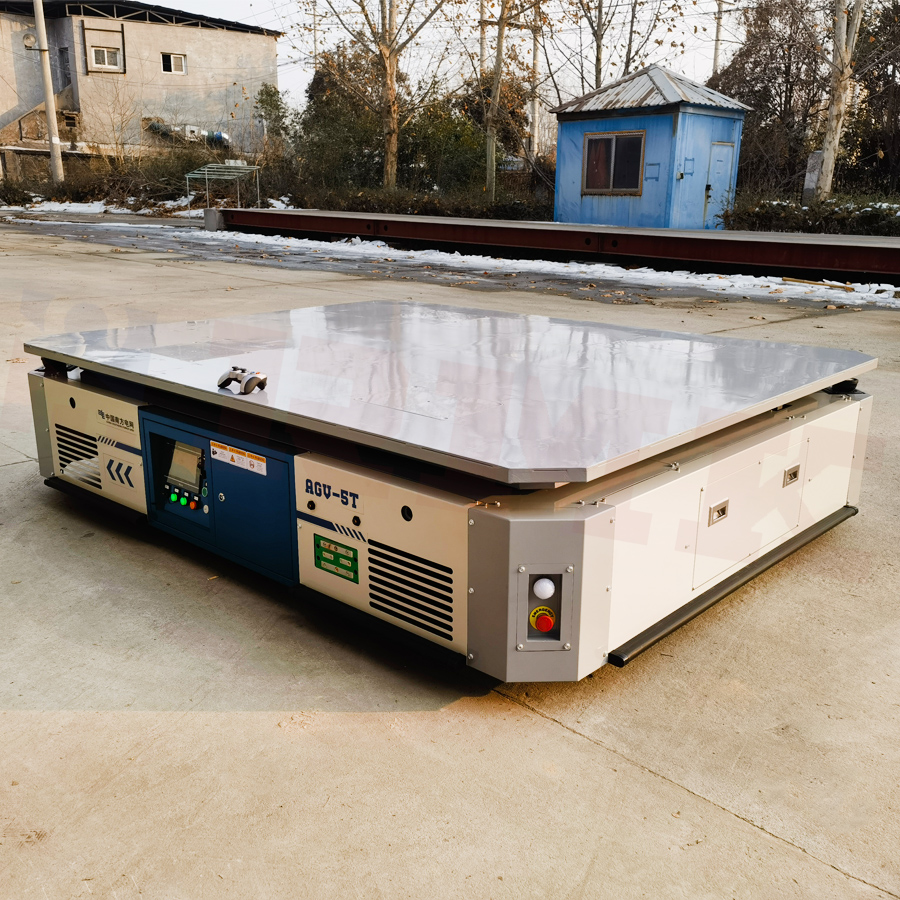

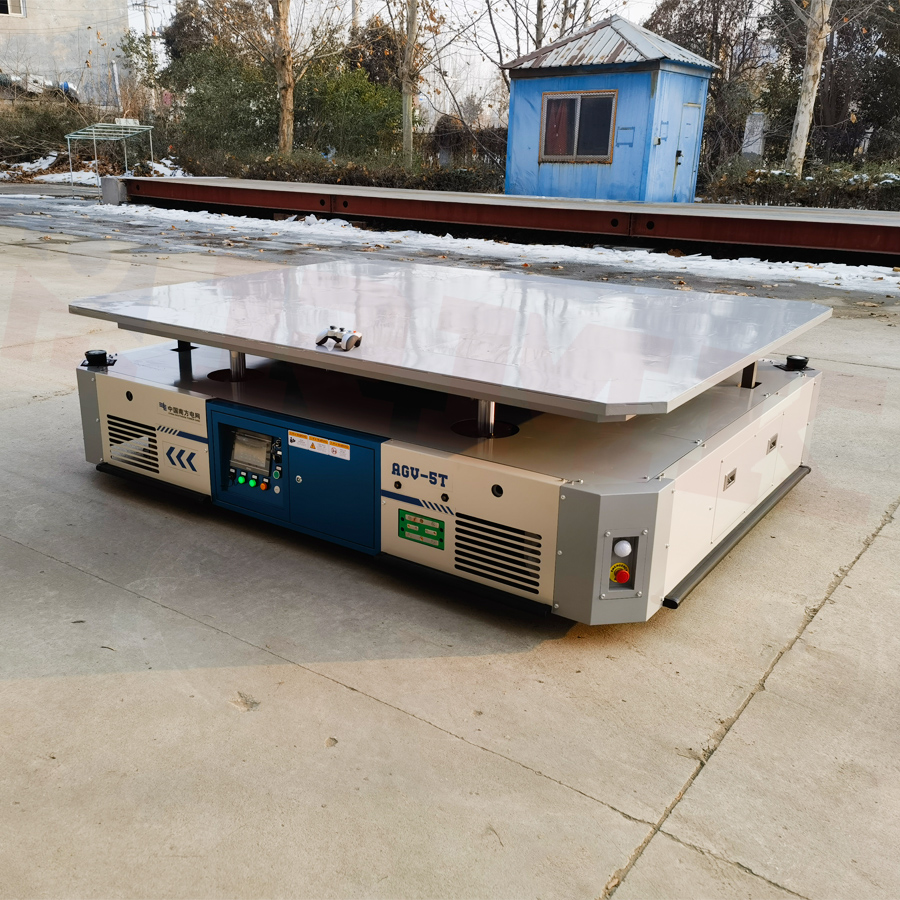

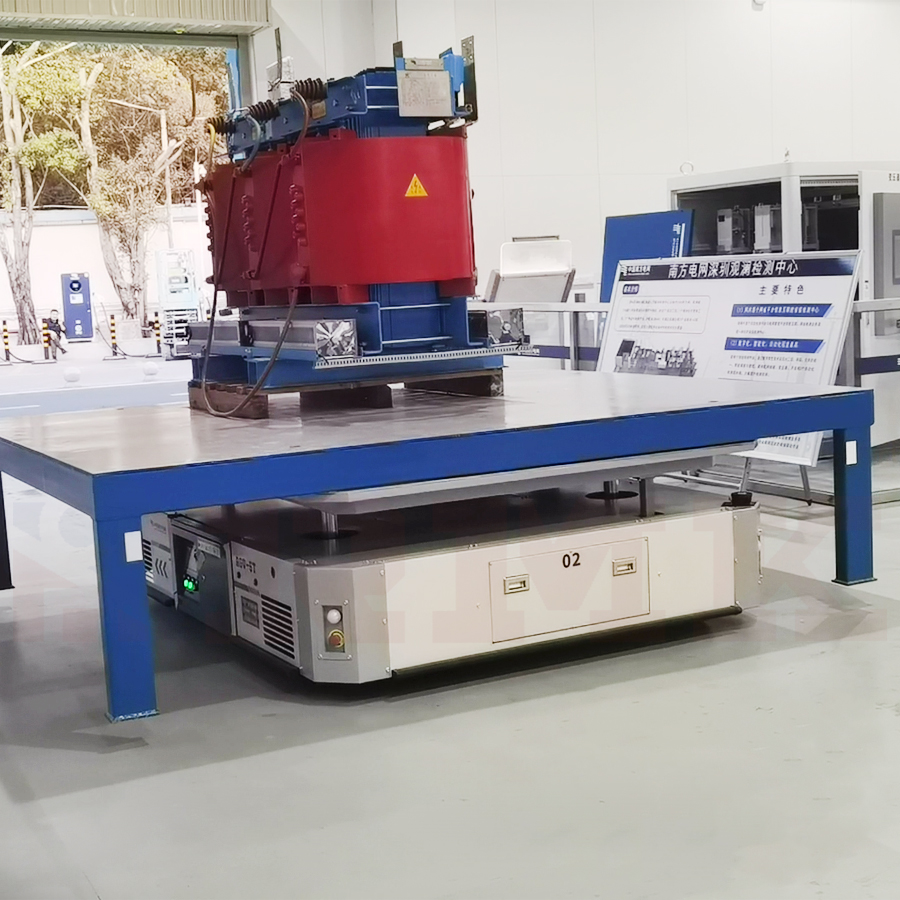

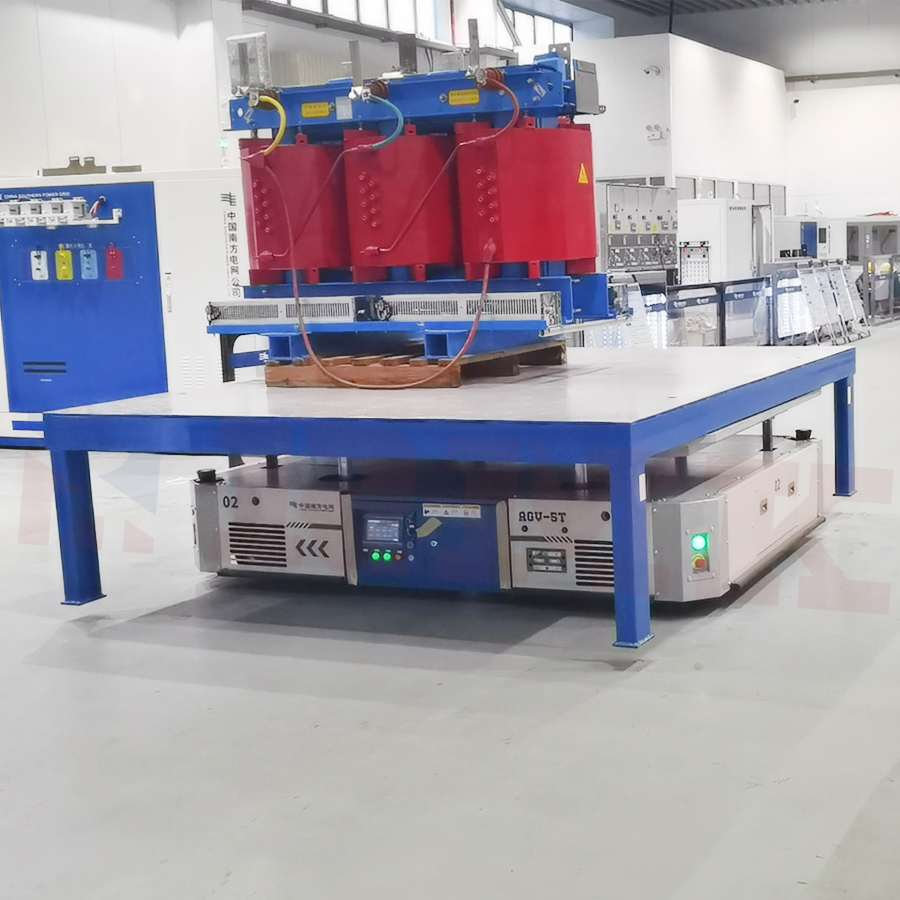

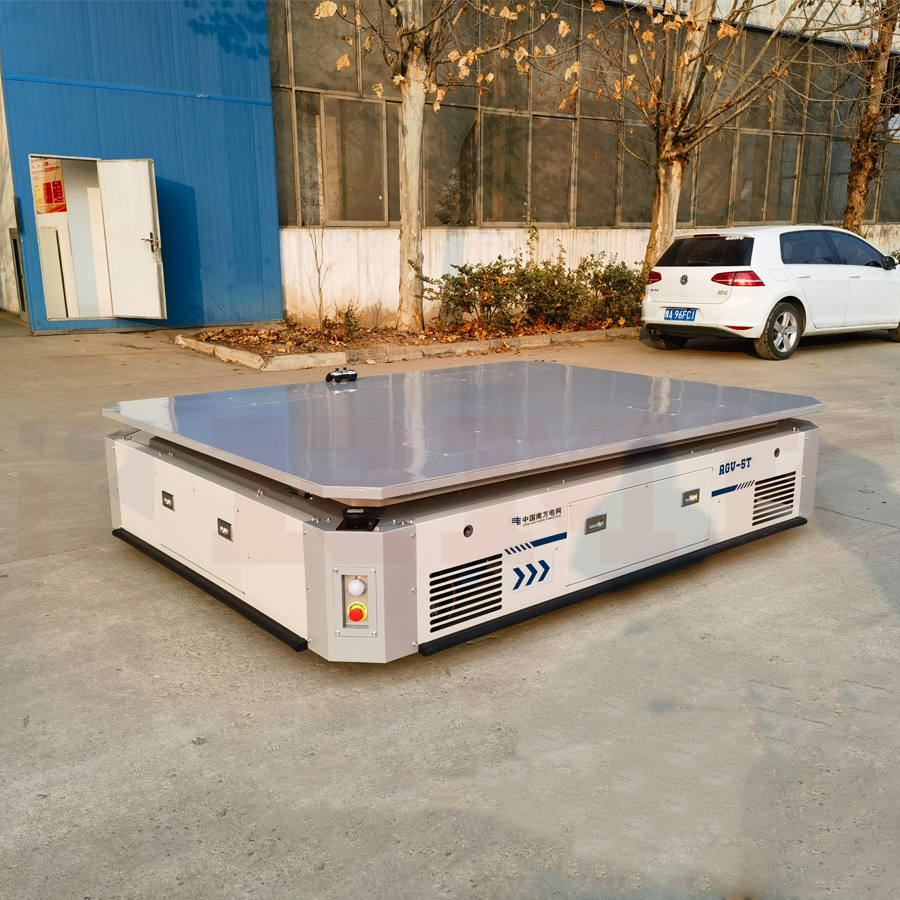

This 5-ton AGV is controlled and operated by a PLC intelligent
control system, consisting of a table, drive wheels, universal
wheels, wheel group, motor, sound and light alarm, emergency stop
button, and collision block. Intelligent control system and other
components. Equipped with laser navigation and obstacle avoidance
functions, it automatically stops when encountering people. AGV has
a wide range of applications, flexible operation, and can operate
in narrow spaces with high automation, saving time and effort.

An unmanned automated vehicle with magnetic stripe navigation
function that can travel along a planned path, powered by
batteries, and equipped with safety protection and various
auxiliary mechanisms (such as transfer and assembly mechanisms).


Technical parameters for trackless electric transfer carts |
rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
structure of frame | steel plates welded, beam structure |
max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
ground requirement | cement floor | steel plate ground |
|
table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
ground clearance(mm) | 50 | 75 |
wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
turning type | turning while driving with no stop |
control method for turning | control button |
turning structure | mechanical |
motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
wheel material | ZG55+hydropur ture |
running speed(m/min) | 0-15 | 0-12 |
brake principle | electric magnetic brake |
operation method | with wire or no wire |
battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
battery maintenance | free of maintenance |
charger's installation | installed on cart | split-type |
charger function | automatic charging |
radar control | 3-0.3m, automatic stop for obstacles |
warning equipment | sound and light |
other functions | turning light, night light and power display |
