| Categories | Water Circulating Vacuum Pump |
|---|---|
| Place of Origin: | China |
| Brand Name: | Labtech |
| Certification: | ISO, CE |
| MOQ: | 1 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 100 units/month |
| Model Number: | XDYQ-5/10 ,XDYQ-5/20 |
| Product Name: | Low Temperature Cooling Circulating Pump |
| Main Components: | Compressor Unit,Circulating Water Pump,Refrigeration Unit |
| Features: | Large,Fast,Greatly improved |
| Company Info. |
| Changsha Labtech Group Limited. |
| View Contact Details |
| Product List |

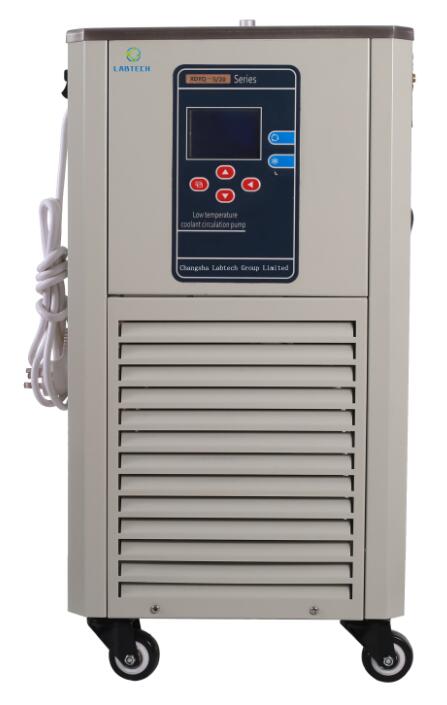

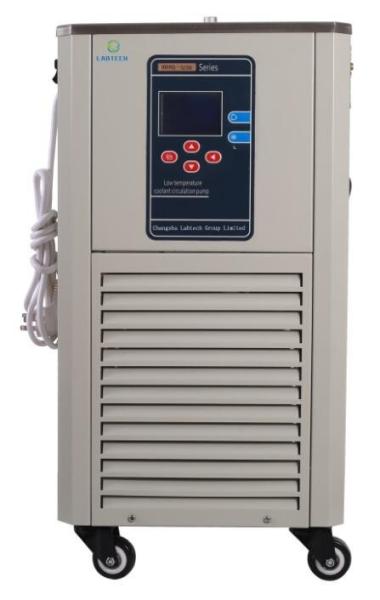

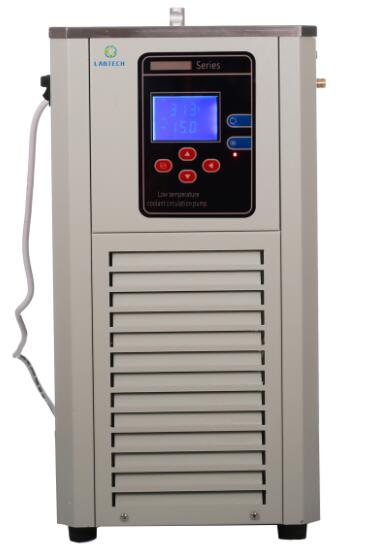

XDYQ series low temperature cooling circulating pump
Product Description
This kind of Low Temperature Cooling Circulating Pump is mainly equipped with compressor unit, circulating water pump, refrigeration unit and so on. It is a cryogenic liquid circulation device that uses mechanical refrigeration to provide a cryogenic liquid and a low temperature water bath. It can be matched with a variety of instruments, such as rotary evaporator, fermenter, chemical reactor, freeze drying equipment, bio-pharmaceutical reactor, etc. for chemical reaction operations and drug storage at low temperature.
In addition, the Low Temperature Cooling Circulating Pump has a large cooling capacity, fast cooling speed, thus the working efficiency is greatly improved. What’s more, the flow rate of the circulating pump can be adjusted or customized, which greatly meets the actual needs of different users. And all models of the pump can be used according to user requirements in low temperature and cooling capacity. The Low Temperature Cooling Circulating Pump wins a good reputation among our customers all over the world.
Technical parameter
Model | XDYQ-5/10 | XDYQ-5/20 | |
Working temp. range | °C | -20℃----RT | |
Operating environment temp. | °C | 5 -32 | |
Temp. display | High accuracy (LED) screen display | ||
Temp. display accuracy | K | 0.1 | |
Temp. stability | K | ±0.1 | |
Controlled temp. sensor | PT100 | ||
Refrigerant | R134a | ||
Refrigerant weight | g | 220 | |
Refrigerating capacity (10°C) | W | 300 | 550 |
Pump max flow | L | 18 (0 bar) | |
Pump pressure | bar | 0.3 | |
Pump suction | bar | 0.2 | |
Bath liquid filling volume | L | 2 | 5 |
Dimension(W * L * H) | mm | 400*280*540mm | 460*320*680 |
Weight | kg | 23.0 | 40.0 |
Voltage | VAC | 220 | |
Frequency | Hz | 50/60 | |
Power | W | 330 | 630 |
WHY CHOOSE US
Our Factory Introduction
We boast a standardized production workshop operated by a dedicated team committed to upholding seriousness and responsibility in every product manufactured. Our R&D division comprises versatile professionals including design engineers, technology specialists, qualified experts, and process control managers. With a stringent adherence to our quality process control system, our qualified specialists rigorously oversee the entire production process, encompassing product design, research and development, testing, production, quality inspection, and packaging.
Packaging & Shipping
Our product packaging has a long-standing track record of reliability. Typically, we utilize plywood boxes or cartons with trays, chosen based on the weight and size of the goods. However, we're flexible and open to accommodating your preferred packaging option.
After-Sale WARRANTY
|
