| Categories | Full Automatic Bread Production Lines |
|---|---|
| Brand Name: | OBESINE |
| Model Number: | OBX300,500,1000,1500 |
| Certification: | CE ,ISO |
| Place of Origin: | CHINA |
| MOQ: | One pieces |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 sets per Year |
| Delivery Time: | 30 days |
| Packaging Details: | Wooden crates , pallets , |
| Material: | stainless steel 304 |
| PLC: | Siments |
| Motors: | Servo |
| Bearing: | NSK |
OBESINE Series Spiral Freezer ,quick-freezing Machine
Product parameters:
Equipment Material: The inside and outside of the equipment chamber
are made of 2mm SUS304 stainless steel, durable and stainless.
Working temperature: - 20 - 120 C;
Temperature Control Accuracy: +1
Temperature Uniformity: +2 C
Cooling rate: 1-20 C/min
Heating rate: > 5 C/min
Distribution Specification: 380V/50HZ 220V/50HZ (optional)
Temperature sensor: A class PT100 platinum resistance.
Equipment insulation: 160mm thick, double insulation, excellent
insulation performance.
Sprial Machine Details and Advantages :
Vertical screw conveyor saves more space. For continuous
transportation from low to high, food cooling. Conveying capacity
is large, continuous and uninterrupted. For the cooling equipment
of the automatic production line of bread, film, moon cake,
dumpling and other foods, it is widely used in large bread, moon
cake and film production enterprises in various regions.
Our company is the first one to specialize in the production and
promotion of spiral cooling towers in the baking industry. At
present, this product has spread to many well-known bread and
mooncake manufacturers in China, making the production of
enterprises more continuous and automated. It greatly improves the
production efficiency, makes the sequence time from baking to
cooling to packaging completely consistent, and greatly improves
the quality of products.

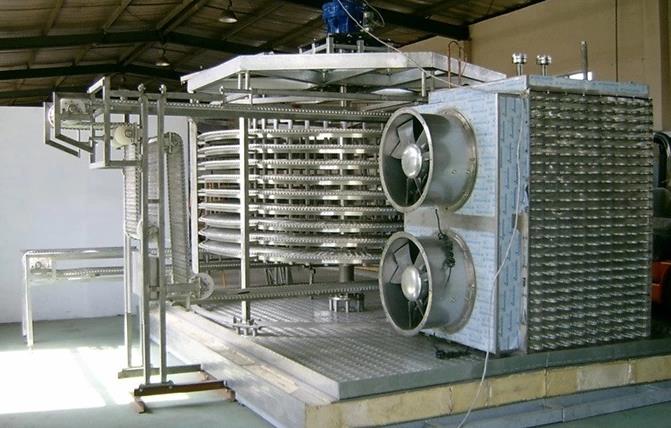

The spiral cooling tower adopts stainless steel spiral mesh belt
carrier with a width of 600-900mm. The layer spacing and the number
of layers are customized according to the output. The cooling time
is 20-120 minutes.
Cooling output is large. It can directly cool hamburgers, toast,
sweet bread, moon cakes, milk fragrance bags, etc. Customized
flexible, according to site and capacity design diameter and mesh
belt.
Single tower is up-down or down-in and up-out; double tower is
down-in and down-out. The screw conveyor has become an important
equipment in the whole production process. Advanced structure,
strong adaptability, small resistance, long service life,
convenient maintenance and complete protection equipment are the
remarkable characteristics of screw conveyor.
Before the operation of the screw conveyor, it is necessary to
confirm that the equipment, personnel and conveyed goods of the
screw conveyor are in a safe and intact state; secondly, check that
there are no foreign bodies in the moving parts, check that all
electrical circuits are normal, and then the belt conveyor can be
put into operation only when it is normal. After that, the
difference between the supply voltage and the rated voltage of the
equipment should not exceed (+5%).
Flexible customization: The diameter and height of the spiral
cooling tower can be customized according to the specific
conditions of the customer workshop.
| Model | Output | Installed Power | Refrigeration Consumption | Dimension | Belt Width |
OBX200 | 200 kg/h | 3.55 kw | 30 kw | 4.0*3.3*2.1 m | 300 mm |
OBX300 | 300 kg/h | 5.15 kw | 43.5kw | 4.9*4.1*2.5 m | 450 mm |
OBX500 | 500 kg/h | 11.2 kw | 75 kw | 5.6*4.0*2.9 m | 450 mm |
| OBX1000 | 1000 kg/h | 22.0 kw | 145 kw | 6.8*5.0*3.3 m | 600 mm |
| OBX1500 | 1500 kg/h | 31.0 kw | 225 kw | 6.8*5.2*4.5 m | 600 mm |
It is a kind of energy saving and quick freezing machine which is well-knowen because of it's compact structure,wide application,small occupation and large freezing capacity.It's the first choice for food processing enterprises all over the world especially in frozen meat and other frozen products with large thickness,large volume and high feeding temperature.
Servo Motors and PLC Screen Controller , speeds is adjustable according to the production .
|
