| Brand Name: | FLY |
| Model Number: | AC1425-2 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiation |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Delivery Time: | within 1-30 working days after payment |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Model code: | AC1425-2 |
| Color: | black |
| Body Material: | Iron |
| Name: | shock absorber |
| Stroke: | 25 mm |
| Company Info. |
| FLY AUTOMATION |
| Verified Supplier |
| View Contact Details |
| Product List |

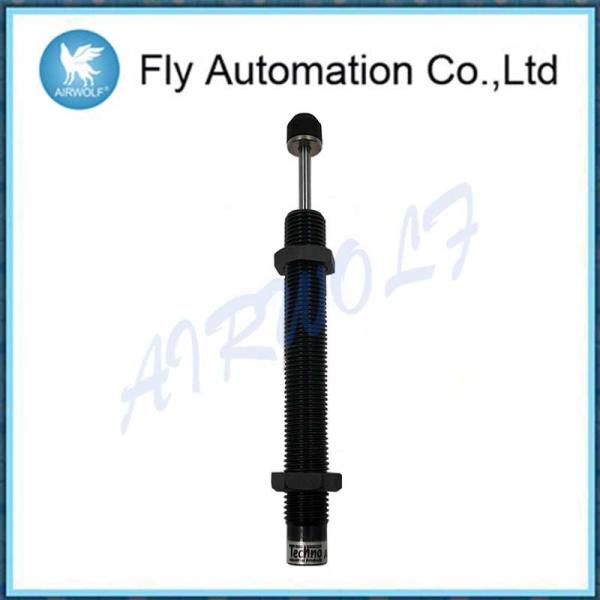

AC Series Nonadjustable Hydraulic Shock Absorber AC1425-2 middle impact speed
Description
The AC series Self-compensation Shock absorber can absorb the kineticobject energy as soon as possible. It converts kinetic energy into thermal energy and outputs it to the air to avoid the mechanical damage and enhance the safety of mechanical operation, prolong the service life of the machine also.
Application
Mainly used in the fields of manipulator, pneumatic cylinder, Conveyor Systems, Factory Automation, medical instruments etc.

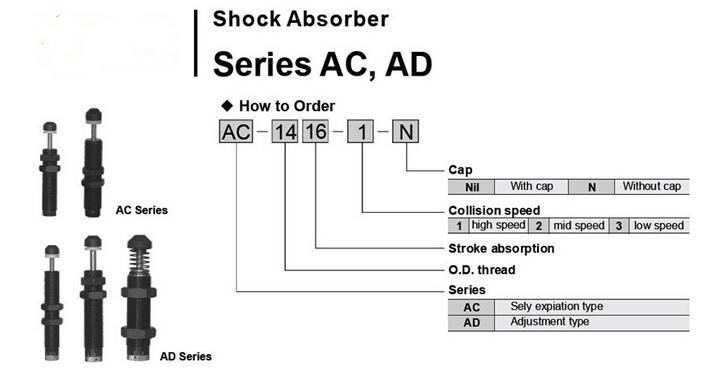

Ordering Code

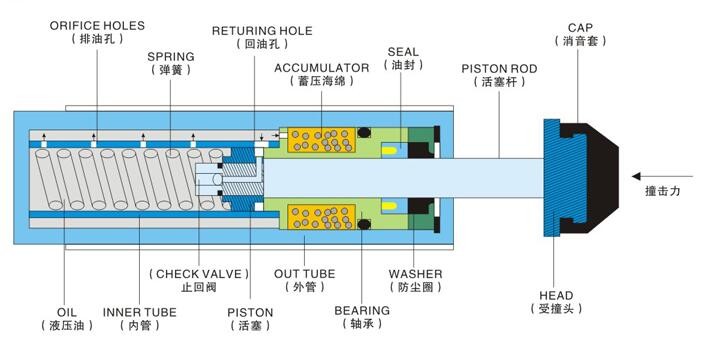

Principle
When piston rod is impacted, it will drive piston to press oil in
inner tube. Oil will be pressed out through orifice holes of inner
tube. At the same time, the oil returns to inner tube through
returning hole of inner tube.
After outside force vanishes, spring makes piston rod immediately return to its position. Oil will return to inner tube through check valve. Then shock absorber will return to be ready position waiting for next action.
Feature
| Model | Stroke (mm) | Max. Impact Speed (m/s) |
| AC1410-2 | 10 | 2 |
| AC1420-2 | 20 | 2 |
| AC1425-2 | 25 | 2 |
| AC2020-2 | 20 | 2 |
| AC2030-2 | 30 | 2 |
| AC2050-2 | 50 | 2 |
| AC2525-2 | 25 | 2 |
| AC2550-2 | 50 | 2 |
| AC3660-2 | 60 | 2 |
Attention
1. It is strictly prohibited to knock or collide the shaft, which
may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or
dirty oil, and the shaft must operate in a clean environment.
Otherwise, it will increase the probability of product leakage and
reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and
axis, otherwise it will affect the heat dissipation effect and oil
leakage.
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
Serves time
0:00 - 23:59
From Monday to Sunday
|
