| Categories | National Mud Pumps |
|---|---|
| Brand Name: | National Oilwell NOV Mission |
| Model Number: | 10P130 MUD PUMP |
| Certification: | API |
| Place of Origin: | CHINA |
| Delivery Time: | In stock |
| Packaging Details: | Suitable to shipment by air and sea |
| MOQ: | 1 |
| Price: | 1-500 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1-2000 |
| Usage: | Oil,Water,sewage with sand,drill rig |
| Power: | Electric,Pneumatic,diesel |
| Pressure: | High Pressure,Low Pressure,low pressure submersible mud pump sand dredging slurry pump,Medium pressure |
| Application: | Sewage,Conveying mud and flushing fluids,mining,oil,Chemical |
| Structure: | Piston Pump,Screw Pump,Diaphragm Pump,centrifugal mud suction pump |
| Fuel: | Diesel,Gasoline,Electric |
| Standard or nonstandard: | Standard |
| Theory: | Centrifugal Pump,Reciprocating Pump,Diaphragm pump |
| Type: | Mud Pump |
| Weight: | 100-3700kg |
| Color: | blue,red and so on,Green,yellow,Green or per customer design |
| Material: | cast iron/stainless steel mud suction pump,Chrome alloy,Stainless steel aluminum plastic etc |
| Warranty: | 12 Months |
| Product name: | Mud Pump |
| Oem: | Applicable |
| Condition: | new |

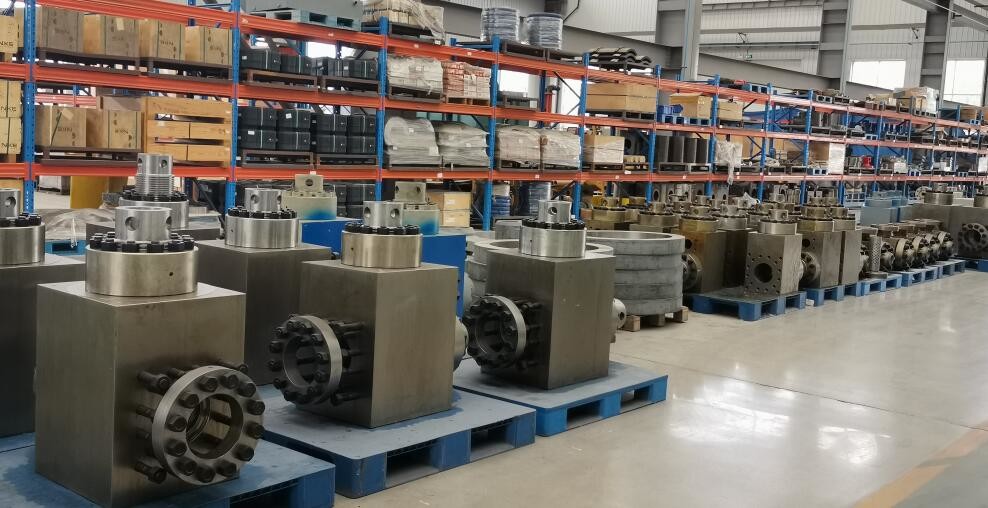

Premium can produce the spare parts of National 7P50 MUD PUMP ,
8P80 MUD PUMP, 9P100 MUD PUMP, 10P130 MUD PUMP, 12P160 MUD PUMP,
14P220 MUD PUMP.| NATIONAL 10-P-130 W/ TAPR-LOK VALVE COVERS FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| FEMNAT10PCA | ASSY, FLUID END MODULE COMPLETE (INCLUDES ITEMS 1, 2, 3-10, 13-24, 32-35) | 3 | ||
| 1 | 1290335 | FEMNATDIS10P | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) | 3 |
| 1A | 1290601 | MODULE, STUDDED FLUID END DISCHARGE W/ AUTOFRETTAGE (INCLUDES ITEMS 1A, 3-10) | 3 | |
| 2 | 1290338 | FEMNATSUC8P9P | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2-4) | 3 |
| 2A | 1290604 | MODULE, STUDDED FLUID END SUCTION W/ AUTOFRETTAGE (INCLUDES ITEMS 2A-4) | 3 | |
| 3 | 2408019 | 8P80TRS | STUD, THREADED RING | 72 |
| 4 | 6300220 | 8P80TRSN | NUT, THREADED RING STUD | 72 |
| 5 | 2408020 | 10P130PFS | STUD, POWER FRAME | 24 |
| 6 | 6300240 | 12P160TRSN | NUT, POWER FRAME STUD | 24 |
| 7 | 2408018 | 2408018 | STUD, LINER BUSHING | 18 |
| 8 | 6300160 | PZ789TRSN | NUT, LINER BUSHING STUD | 18 |
| 9 | 2408034 | 8P80DSUCS | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 |
| 10 | 6300241 | 6300241 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 |
| 11 | 2402560 | 8P80DMS | STUD, DISCHARGE SPACER | 16 |
| 12 | 6300200 | PZ789LCSN | NUT, DISCHARGE SPACER STUD | 16 |
| 13 | 6511416 | PEP70 | PIN, DOWELL | 6 |
| 14 | 1292140 | NATVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
| 15 | 1292141 | NATVGB | BUSHING,VALVE GUIDE | 6 |
| 16 | 1540126 | 1540126 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 17 | 1290174 | NAT8PRETSEAL | RETAINER, SEAL | 6 |
| 18 | 1290178 | NATAWS | SCREW, ADJUSTING WEDGE | 6 |
| 19 | 6300160 | EMSFB13LCSN | NUT, WEDGE ADJUSTING SCREW | 6 |
| 20 | 1290315 | 8PAWSW | WASHER, WEDGE ADJUSTING SCREW | 6 |
| 21 | G1290376 | 8P80LWA | ASSEMBLY, WEDGE (INCLUDES ITEM #22 WEDGE SPRING) | 6 |
| 22 | 1290181 | 8P80WS | SPRING, WEDGE | 6 |
| 23 | 1290308 | NAT8PFLG | RING, THREADED | 6 |
| 24 | 1290307 | NAT8PCAP | CAP, VALVE COVER (THREADED) | 6 |
| 25 | 2410031427 | 2410031427 | PACKING, DISCHARGE CONNECTOR & DISCHARGE ADAPTER | 4 |
| 26 | 1290343 | NAT8PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 27 | 2410031348 | 2410031348 | PACKING, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 1290342 | NAT8PDSMC | CONNECTOR, DISCHARGE | 2 |
| 28A | 1290175 | 1290175 | BACK UP RING, DISCHARGE CONNECTOR | 2 |
| 29 | 7006607 | 7006607 | CAPSCREW, DISCHARGE SPACER FLANGE | 16 |
| 30 | 700030511 | 700030511 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 31 | 7619050 | 7619050 | WASHER, DISCHARGE CONNECTOR SCREW (NOT SHOWN) | 16 |
| 32 | 1290357 | PP602000 | PLATE, WEAR | 3 |
| 33 | 1290165 | 10PLCA | BUSHING, LINER | 3 |
| 34 | 1290166 | 10P130LC | ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, & 34F) | 3 |
| 34A | 700044811 | 700044811 | CAPSCREW, LINER CLAMP | 6 |
| 34B | ** | ** (OPTIONAL) LOCK WASHER 5/8" | 6 | |
| 34C | 6309120 | 6309120 | NUT, LINER CAPSCREW | 6 |
| 34D | 1290169 | 1290169 | PIN, CONNECTOR | 6 |
| 34E | G1290168 | G1290168 | CONNECTOR, LINER CLAMP | 6 |
| 34F | 6571420 | 6571420 | PIN, SPRING | 4 |
| 35 | 1290344 | 1290344 | SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 36 | 1590051 | 1590051 | SEAL, SUCTION MANIFOLD | 3 |
| 37 | 700048510 | 700048510 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 38 | 1290348 | SPACER, STUDDED DISCHARGE | 2 | |
| 39 | 1290345 | SEAL, SPACER TO FLUID END | 2 | |
| NATIONAL 10-P-130 POWER END SPARES | ||||
| 1 | 1290083 | 10-P-130 | PONY ROD | |
| 2 | ZT-14500 | 10-P-130 | BEARING, MAIN | |
| 3 | ZB-7370 | 10-P-130 | BEARING, CROSSHEAD PIN | |
| 4 | ZB-26250 | 10-P-130 | BEARING, CONNECTING ROD | |
| 5 | ZB-8662 | 10-P-130 | BEARING, PINIONSHAFT | |
| 6 | 1290028 | 10-P-130 | PIN, CROSSHEAD | |
| 7 | 1290015 | 10-P-130 | CROSSHEAD, RIGHT AND CENTER HAND | |
| 8 | 1290017 | 10-P-130 | LINER, CROSSHEAD | |
| 9 | 1290090 | 10-P-130 | CROSSHEAD, LEFT HAND | |
| 10 | 1290007 | 10-P-130 | CONNECTING ROD | |
| 11 | 1290005 | 10-P-130 | CRANKSHAFT | |
| 12 | 1290008 | 10-P-130 | GEAR, CRANKSHAFT | |
| 13 | 1290010 | 10-P-130 | PINION | |
| NATIONAL 9-P-100 POWER END SPARES | ||||
| 1 | 1293083 | 10-P-130 | PONY ROD | |
| 2 | ZT-13127 | 10-P-130 | BEARING, MAIN | |
| 3 | ZB-7120 | 10-P-130 | BEARING, CROSSHEAD PIN | |
| 4 | ZB-26250 | 10-P-130 | BEARING, CONNECTING ROD | |
| 5 | ZB-7873 | 10-P-130 | BEARING, PINIONSHAFT | |
| 6 | 1293028 | 10-P-130 | PIN, CROSSHEAD | |
| 7 | 1293015 | 10-P-130 | CROSSHEAD, RIGHT AND CENTER HAND | |
| 8 | 1293017 | 10-P-130 | LINER, CROSSHEAD | |
| 9 | 1293090 | 10-P-130 | CROSSHEAD, LEFT HAND | |
| 10 | 1293007 | 10-P-130 | CONNECTING ROD | |
| 11 | 1290005 | 10-P-130 | CRANKSHAFT | |
| 12 | 1293008 | 10-P-130 | GEAR, CRANKSHAFT | |
| 13 | 1293010 | 10-P-130 | PINION | |
NOV offer a full line of triplex mud pumps to handle any drilling
requirement.
These tough field-proven models cover input horse power ratings in
the 500 to 2,200 range. Our extensive product line include the
National P-Series and Continental Emsco FD-Series and F-Series
pumps.
National Oil well Varco (NOV) is an American multinational
corporation based in Greater Sharps town, Houston, Texas. It is a
leading worldwide provider of equipment and components used in oil
and gas drilling and production operations, oilfield services, and
supply chain integration services to the upstream oil and gas
industry. The company conducts operations in more than 1,200
locations across six continents.
Products include all the heavy hardware for oil well drilling as
well as drilling instrumentation and controls and drilling power
generation and control. A partial list of heavy hardware includes
top drives, rotary, draw works, derricks, BOPs (blowout
preventers), mud pumps, riser equipment, and complete drilling
rigs. Products also include instruments and controls required on
the rig floor for the drilling operation. This includes
sophisticated electronics for precise control, such as the control
system Cyber base. NOV also produces control electronics for power
generation and control of drilling motors and motor control centers
for AC motor control.
NOV is the Houston area’s largest energy employer, with more than
14,500 workers in the region
| SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING | |||||||
| PISTONS LINERS | LINER SEALS | ||||||
| SIZE | FAIL-SAFE | DUAL-DURO® | BLACK CAT | GRAYLOY® | ZIRCONIA | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 76BBC | 1376G06 | 2930-06 | 2930-06U | |
| 4 1/4" | 77BFS | 77BDD | 77BBC | 1376G07 | 2930-07 | 2930-07U | |
| 4 1/2" | 78BFS | 78BDD | 78BBC | 1376G08 | 1376ZIR08 | 2930-08 | 2930-08U |
| 4 3/4" | 79BFS | 79BDD | 79BBC | 1376G09 | 1376ZIR09 | 2930-09 | 2930-09U |
| 5" | 81BFS | 81BDD | 81BBC | 1376G1 | 1376ZIR1 | 2930-1 | 2930-1U |
| 5 1/4" | 82BFS | 82BDD | 82BBC | 1376G2 | 2930-2 | 2930-2U | |
| 5 1/2" | 83BFS | 83BDD | 83BBC | 1376G3 | 1376ZIR3 | 2930-3 | 2930-3U |
| 5 3/4" | 84BFS | 84BDD | 84BBC | 1376G4 | 1376ZIR4 | 2930-4 | 2930-4U |
| 6" | 85BFS | 85BDD | 85BBC | 1376G5 | 1376ZIR5 | 2930-5 | 2930-5U |
| 6 1/4" | 86BFS | 86BDD | 86BBC | 1376G6 | 1376ZIR6 | 2930-6 | 2930-6U |
| 6 1/2" | 87BFS | 87BDD | 87BBC | 1376G7 | 1376ZIR7 | 2930-7 | 2930-7U |
| 6 3/4" | 88BFS | 88BDD | 88BBC | 1376G8 | 2930-8 | 2930-8U | |
| 7" | 89BFS | 89BDD | 89BBC | 1376G9 | 1376ZIR9 | 2930-9 | 2930-9U |
| 7 1/4" | 91BFS | 91BDD | 91BBC | 1376G10 | 1376ZIR10 | 2974-11 | 2974-11U |
| 7 1/2" | 92BFS | 92BDD | 92BBC | 1376G11 | 2974-11 | 2974-11U | |
| NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC. | |||||||
SOUTHWEST 8482-25A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | ||
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| 1 | FEMPZ789CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-22) | 3 | OK | |
| 1A | 200PZL029F | FEMPZ789 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-9) | 3 | OK |
| 205PZL029D | OK | ||||
| 1B | 80721012 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-9) | OK | ||
| 2 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 | OK |
| 3 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 48 | OK |
| 4 | 79L73 | PZ789GPFS | STUD, FRAME | 12 | OK |
| 5 | 50AQ30 | PZ789PFSN | NUT, FRAME STUD | 12 | OK |
| 6 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 | OK |
| 7 | 50B34 | PZ789TRSN | NUT, VALVE COVER STUD | 48 | OK |
| 8 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 | OK |
| 9 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | OK |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 | OK |
| 11 | 2011862 | 7916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | OK |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 | OK |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 | OK |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED (2 1/2" THICK) | 6 | OK |
| 14A | PZ789HFLG | RING, HEAVY VALVE COVER THREADED (3" THICK) | 6 | OK | |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 | OK |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 | OK |
| 17 | 2011700 | PZ789LVG | GUIDE, LOWER VALVE SUCTION | 3 | OK |
| 18 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 | OK |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 | OK |
| 20 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 | OK |
| 21 | 25G41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 | OK |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 | OK |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 | OK |
| 24 | 75A74N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 | OK |
| 25 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 | OK | |
| 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | OK | ||
| Liners, Pistons and Valves | |||||
| 1 | 202PZL482A | PZ7/8/9 | FLUID VALVE ASSY | OK | |
| 2 | 202PZL039 | PZ7/8/9 | SEAT, THREE WEB | OK | |
| 3 | 2010512 | PZ7/8/9 | INSERT, VALVE | OK | |
| 4 | 201PZG456 | PZ7 | LINER 4-1/2" | OK | |
| 5 | 200PZG456 | PZ7 | LINER 5" | OK | |
| 6 | PY13995 | PZ7 | LINER 5.5" | OK | |
| 7 | PY13960 | PZ7 | LINER 6" | OK | |
| 8 | PY13965 | PZ7 | LINER 6.5" | OK | |
| 9 | PY13970 | PZ7 | LINER 7" | OK | |
| 10 | 206PZJ456 | PZ8/9 | LINER 4" | OK | |
| 11 | 205PZJ456 | PZ8/9 | LINER 4-1/2" | OK | |
| 12 | 204PZJ456 | PZ8/9 | LINER 5" | OK | |
| 13 | 203PZJ456 | PZ8/9 | LINER 5.5" | OK | |
| 14 | 202PZJ456 | PZ8/9 | LINER 6" | OK | |
| 15 | 201PZJ456 | PZ8/9 | LINER 6.5" | OK | |
| 16 | 2067PZJ456 | PZ8/9 | LINER 7" | OK | |
| GARDNE DENVER PZ7/8/9 POWER END SPARES | |||||
| 1 | 66D13 | PZ-7 | MAGNETIC PLUG | OK | |
| 2 | 12W75 | PZ-7 | PINION BEARING (JACK SHAFT BEARING) | OK | |
| 3 | 12BA20 | PZ-7 | MAIN BEARING (ECCENTRIC) | OK | |
| 4 | 12BA18 | PZ-7 | BEARING, CONROD-ECCENTRIC | OK | |
| 5 | 74D18 | PZ-7 | RING RETAINER FOR CON ROD BEARING | OK | |
| 6 | 12BA19 | PZ-7 | BEARING ROLLER, CROSSHEAD PIN | OK | |
| 7 | PZ838 | PZ-7 | PIN LOCK | OK | |
| 8 | 200PZG309 | PZ-7 | CROSSHEAD SLIDE | OK | |
| 9 | 200PZG005 | PZ-7 | CROSSHEAD | OK | |
| 10 | 200PZG189 | PZ-7 | PIN-CROSSHEAD | OK | |
| 11 | 202PZG168 | PZ-7 | PLATE RETAINER, CROSSHEAD PIN | OK | |
| 12 | 300PZG839 | PZ-7 | ROD EXTENSION | OK | |
| 13 | 300PZL362 | PZ-7 | SEAL HOUSING -OIL STOP HEAD | OK | |
| 14 | 301PZL362 | PZ-7 | SEAL HOUSING -OIL STOP HEAD | OK | |
| 15 | 20011872 | PZ-7 | SEAL OIL | OK | |
| 16 | 25BC69N | PZ-7 | GASKET | OK | |
| 17 | SFXK840 | PZ-7 | BAFFLE | OK | |
| 18 | 40L17 | PZ-7 | GAUGE OIL LEVEL SIGHT | OK | |
| 19 | 27H11 | PZ-7 | GAUGE, OIL TEMPERATURE | OK | |
| 20 | 26C18 | PZ-7 | FILTER-OIL | OK | |
| 21 | 200PZG309 | PZ-7 | SLIDE-crosshead | OK | |
| 22 | 60DD39 | PZ-7 | SEAL, Oil | OK | |
| 23 | 200PZG309 | PZ-7 | PZ7 GUIDE, CROSSHEAD | OK | |
| 24 | 60DD39 | PZ-7 | PZ7 OIL SEAL | OK | |
| 25 | 200 PZG2555 | PZ-7 | ECCENTRIC | OK | |
| 26 | 200PZG280 | PZ-7 | GEAR-DRIVEN | OK | |
| 27 | 200PZG003 | PZ-7 | CONNECTING ROD | OK | |
| 28 | 200PZG069 | PZ-7 | MANIFOLD SUCTION | OK | |
| 29 | 200PZG071 | PZ-7 | MANIFOLD- DISCHARGE | OK | |
| 30 | 2012507 | PZ-8 | JACKSHAFT | OK | |
| 31 | 2009633 | PZ-8 | SEAL–OIL | OK | |
| 32 | 2012503 | PZ-8 | ECCENTRIC | OK | |
| 33 | 2012508 | PZ-8 | GEAR–DRIVEN | OK | |
| 34 | 2012506 | PZ-8 | CONNECTING ROD | OK | |
| 35 | 200PZH005 | PZ-8 | CROSSHEAD | OK | |
| 36 | 200PZH189 | PZ-8 | PIN–CROSSHEAD | OK | |
| 37 | 12W58 | PZ-8 | BEARING–ROLLER, Jackshaft | OK | |
| 38 | 12GF38 | PZ-8 | BEARING–ROLLER, Eccentric | OK | |
| 39 | 12W85 | PZ-8 | BEARING, Connecting Rod to Eccentric | OK | |
| 40 | 12BA44 | PZ-8 | BEARING–ROLLER, Crosshead Pin | OK | |
| 41 | 1PO183 | PZ-8 | ROD–EXTENSION | OK | |
| 42 | 2009634N | PZ-8 | GASKET, Oil Stop Head | OK | |
| 43 | 2012513 | PZ-8 | HEAD–OIL STOP | OK | |
| 44 | 1PZ371 | PZ-9 | JACKSHAFT | OK | |
| 45 | 60G242 | PZ-9 | SEAL–OIL | OK | |
| 46 | 2013705 | PZ-9 | ECCENTRIC | OK | |
| 47 | 1PZ180 | PZ-9 | GEAR–DRIVEN | OK | |
| 48 | PZ417 | PZ-9 | CONNECTING ROD | OK | |
| 49 | 200PZJ005 | PZ-9 | CROSSHEAD | OK | |
| 50 | PZ189 | PZ-9 | PIN–CROSSHEAD | OK | |
| 51 | PZ183 | PZ-9 | ROD–EXTENSION | OK | |
| 52 | 1PZ226 | PZ-9 | HEAD–OIL STOP | OK | |
| 53 | 12W60 | PZ-9 | BEARING–ROLLER, Jackshaft | OK | |
| 54 | 12GF36 | PZ-9 | BEARING–ROLLER, Eccentric | OK | |
| 55 | 12W84 | PZ-9 | BEARING, Connecting Rod to Eccentric | OK | |
| 56 | 12AM3 | PZ-9 | BEARING–ROLLER, Crosshead Pin | OK | |
| TSC PART # | DESCRIPTION |
| TS-202PZL029B | FLUID END MODULE STUDDED (INCLUDES 1-8) |
| TS-201PZL110 | STUD, FRAME & LINER CLAMP LONG |
| TS-205PZL110 | STUD, SHORT |
| TS-50B36 | NUT, FRAME & LINER CLAMP STUD |
| TS-204PZL110 | STUD |
| TS-50B34 | NUT (FOR ABOVE) |
| TS-202PZL110 | STUD, DISCHARGE MANIFOLD |
| TS-50B34 | NUT (FOR ABOVE STUD) (SAME AS ITEM 6) |
| TS-200PL387 | RING, VALVE COVER THREADED |
| TS-204PZL715(G-798Z) | GASKET, VALVE COVER |
| TS-2007674 | BUSHING, VALVE GUIDE |
| TS-200PZL147 | COVER, VALVE |
| TS-25AL37(G-692) | LINER GASKET |
| TS-200PZL587 | CAP, VALVE COVER LOCK |
| TS-2011701 | PLATE, RETAINER |
| TS-200PZL483 | GUIDE, VALVE SUCTION |
| TS-95W2 | WASHER, LOCK 1/2" 316SS |
| TS-655EE065 | SCREW 1/2" x 1 3/4" 316SS HX HD C/S |
| TS-25AL35 | GASKET, DISCHARGE MANIFOLD |
| TS-25G41 | GASKET, SUCTION MANIFOLD |
| TS-200PZL455 | CLAMP, LINER |
| TS-200PZL483A | ASSY., LOWER VALVE GUIDE ( INCLUDES ITEMS 15-18.) |
|
FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump
FB1600 Drilling mud pump, FB1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ9 mud pump, PZ8 MUD PUMP, PZ7 mud pump
F1600 Drilling mud pump, F1300 mud pump, 14P220 mud pump, 12P160 mud pump, PZ10 mud pump, PZ8 MUD PUMP, T1600 mud pump
F1600 Drilling mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, PZ10 mud pump, 14T2200 MUD PUMP
F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, MISSION "L" MODULE FOR PZ-10, PZ-11
F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump
National 14P220 mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P160, 10P130 mud pump
National 14P220 W/ FAST CHANGE VALVE COVERS mud pump fluid end liner, zirconia liner, pistons, valves and seats
National 12P160/ 14P220, 9P100 mud pump fluid end liner, zirconia liner, BREWSTER mud pump B-1600T
National 12P160， 14P220， 10P130， 9P100， 8P80 mud pump Power end spares, Crankshaft, Pinionshaft, bull gear, Crosshead
