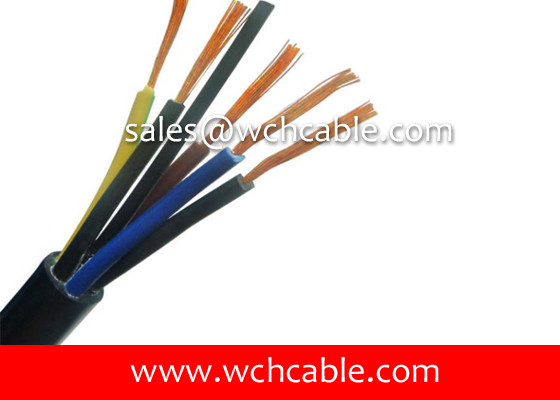

UL PVC Cable, AWM Style UL2103 18AWG 5C FT2 105°C 300V, TPE / PVC

UL PVC Cable, AWM Style UL2103 18AWG 5C FT2 105°C 300V, TPE / PVC

Conductor size: 18AWG

Wire assembly: 5 cores

Insulation color: Black, blue, brown, violet, yellow/green.

Insulation material: TPE

Shield: optional.

Sheath color: Black

Sheath material: PVC

Sheath thickness: 0.38mm

Flammability: FT2

Rated temperature: 105°C

Rated voltage: 300V

Conductor resistance: 24.7Ω/km

Insulation resistance: 100mΩ/km

Recommended application: electronic equipment wiring.

Applied standard: UL758, UL1581.

Remark: color of wires or sheath can be changed according to customer's requirement.
