| Categories | Telescopic Boom Crane |
|---|---|
| Brand Name: | OUCO |
| Model Number: | OUCO-TB-1T2M |
| Certification: | CE/ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiation |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 40 days |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| Boom Type: | Telescopic Boom |
| Power type: | Electric |
| Type: | movable |
| Material: | Steel Structure |
| Condition: | New |
| Application: | Lifting/unloading |

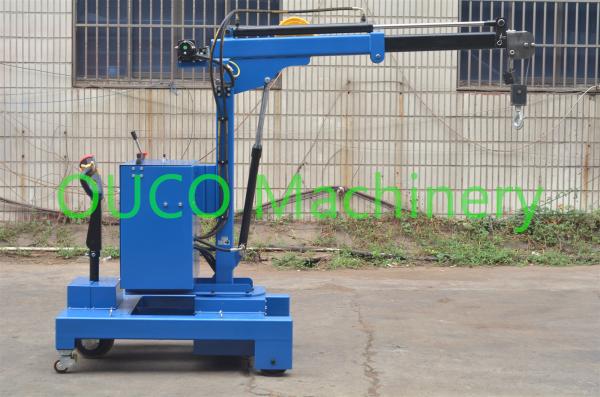

Portable electric crane with luffing and slewing Industries Floor Crane
Product Feature
1. Running smoothly.
2. Rates of speed can be changed.
3. 270 degrees continually rotary.
4. Both electro and manual to control.
5. Operate conveniently.
6. Safety and reliability.
Technical Parameters
| Item | Full electric slewing crane | ||||
| Hoisting type | Electric type | ||||
| Max boom length for every section(mm) | 1070 | 1710 | 1960 | 2210 | 2410 |
| Max loading capacity for every section(kg) | 450 | 210 | 185 | 145 | 120 |
| Max height from hook to ground for every section(mm) | 1960 | 2420 | 2560 | 2710 | 2840 |
| Max distance from hook to end for every section(mm) | 700 | 1160 | 1350 | 1570 | 1730 |
| Height from hook to ground when boom is horizontal(mm) | 1340 | 1340 | 1340 | 1340 | 1340 |
| Distance from hook to end when boom is horizontal(mm) | 665 | 1305 | 1555 | 1805 | 2005 |
| Max slewing angle | 270° | ||||
| Max working radius(mm) | 2410 | ||||
| Min working radiu(mm) | 1070 | ||||
| Battery(V/Ah) | 12/80*2 | ||||
| Charger(V/A) | 24/15 | ||||
| Dimension:length* width *height(mm) | 1310*1010*1910 | ||||
| Diameter of wheels(PU)(mm) | Ф180/Ф250 | ||||
| Net weight(kg) | 1204KG | ||||
| Specification of pump station | 24V/2.2kw | ||||
| Specification of driving wheel | 0.7kw | ||||
| Dimension of driving wheel(mm) | 250*80 | ||||

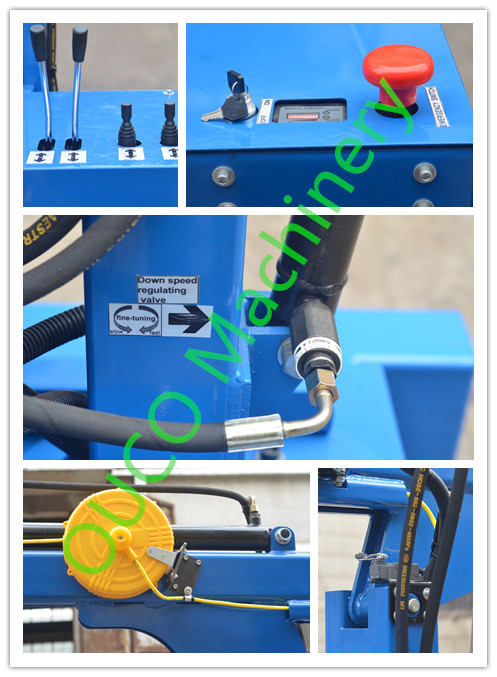

Details
Our Company
We are an integrated company of industry and trade,our factory specialize in this field for many years.Our factory
can design andmanufacture any type marine/offshore cranes based on your technical requirements. To deliver the
best possible products for the bestpossible price and quality. We are competitive as we have low labor cost, and
deliver quality because we use Europeancomponentsin our cranes.Not only to deliver a good product, by experience
we know that a crane is a one time investment for a client and howimportant it is to do repairs at location in a short
time as most clients have to deal with a high day-rate from their vessels; “Down-time” is expensive.
Do not be hesitate, please feel free to "SEND" inquiry to us.
FAQ
1. Q: Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
|
