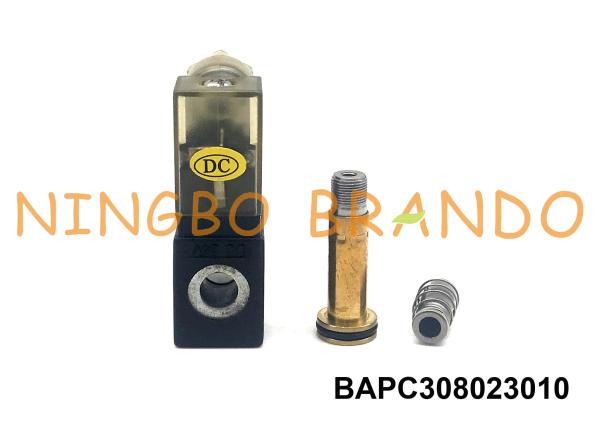

The S8 & S9 solneoid operator armature assembly or anchoring system is the valve plate of a modular solenoid valve system. An internal stainless steel marble moves up and down, sealing the top and bottom seats of the valve. We provide armatures in various sizes depending on the traffic requirements of the application. Outer diameter tube sizes range from 7.4mm to 18.2mm and flow rates range from 12 l/min to 165 l/min. Seat hole sizes range from 0.6 mm to 4.0 mm or higher for special applications. Choose the right materials for application as we offer brass and stainless steel tubes.

There are four common aerodynamic functions, including:

1) 2/2 normally closed (NC),

2) 3/2 normally closed (NC),

3) 2/2 normally open (NO),

4) 3/2 normally open (NO).

Technical parameter of Amisco Type S8 3/2 Way Flange Solenoid Operator:

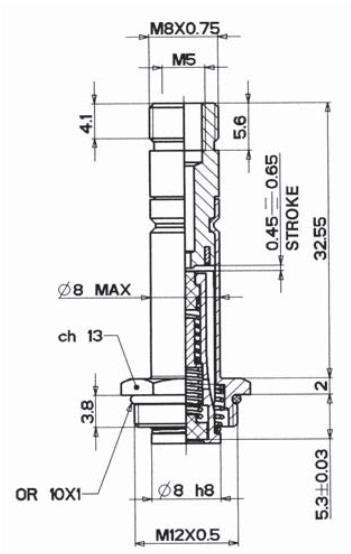

Main dimension & Application of Amisco Type S8 3/2 Way Flange Armature Assembly:

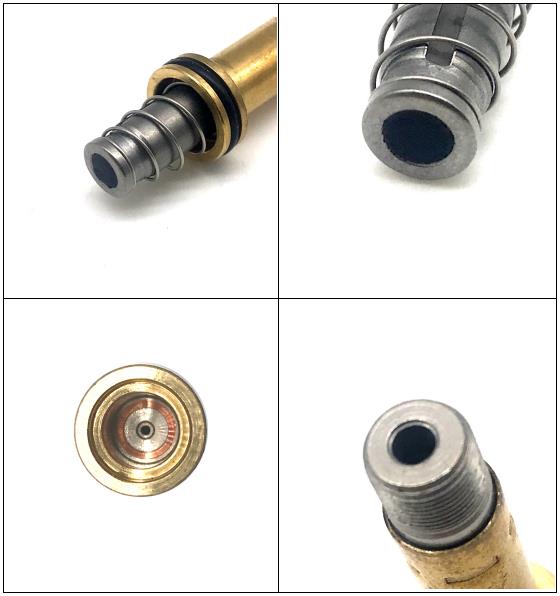

Detail enlargement of Amisco Type S8 3/2 Way Flange Solenoid Operator:

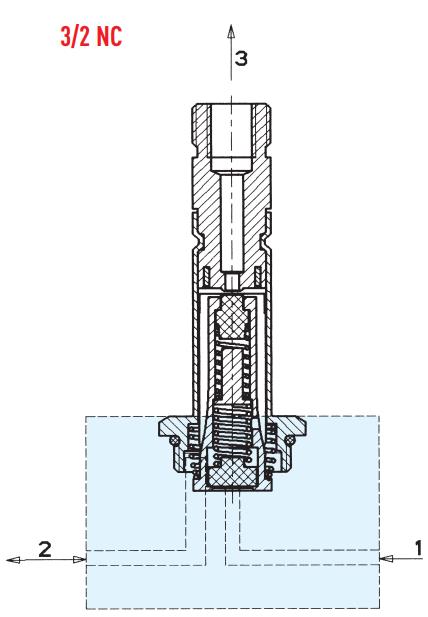

Deconstruction diagram of Amisco Type S8 3/2 Way Flange Armature Assembly:

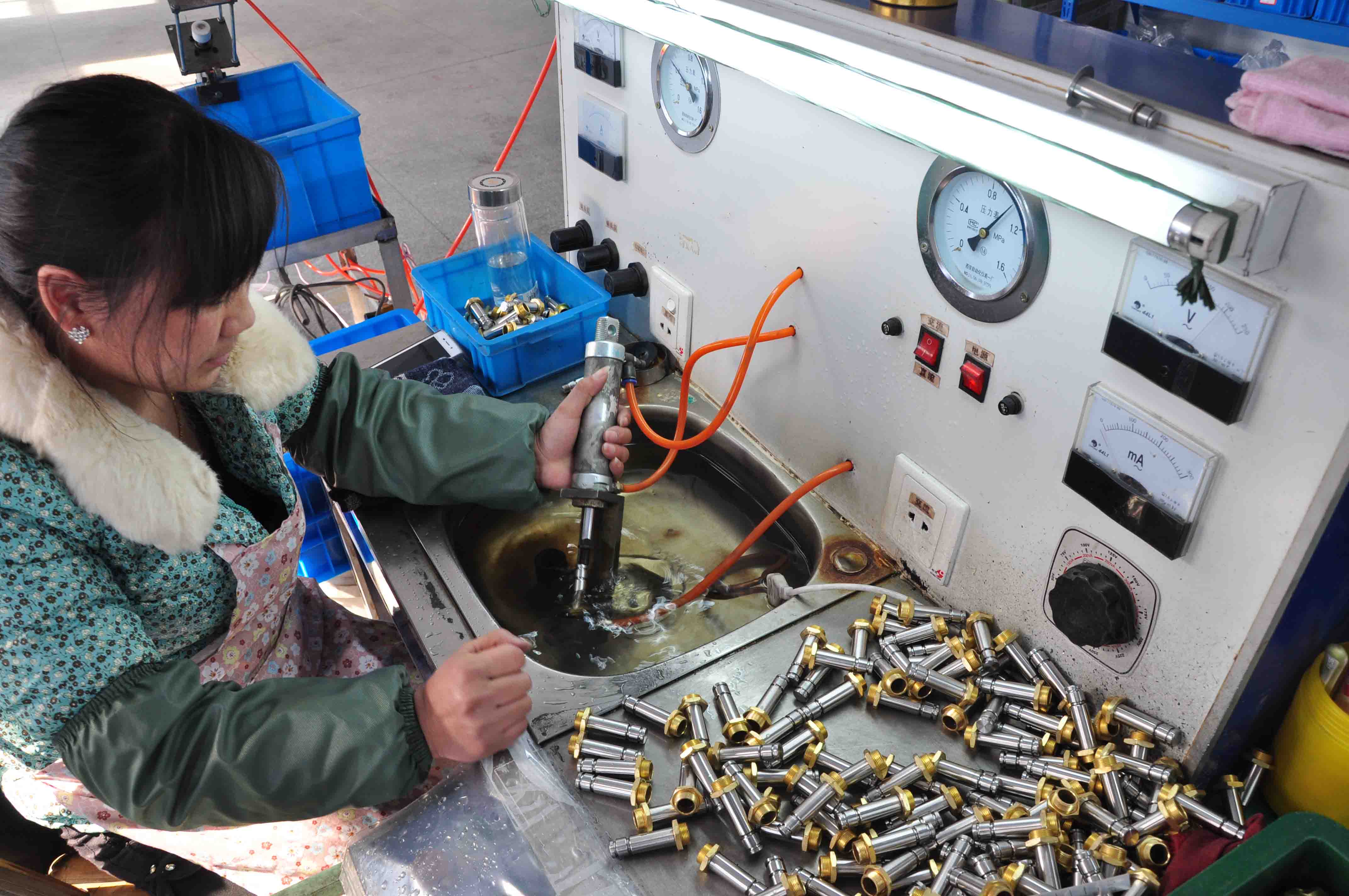

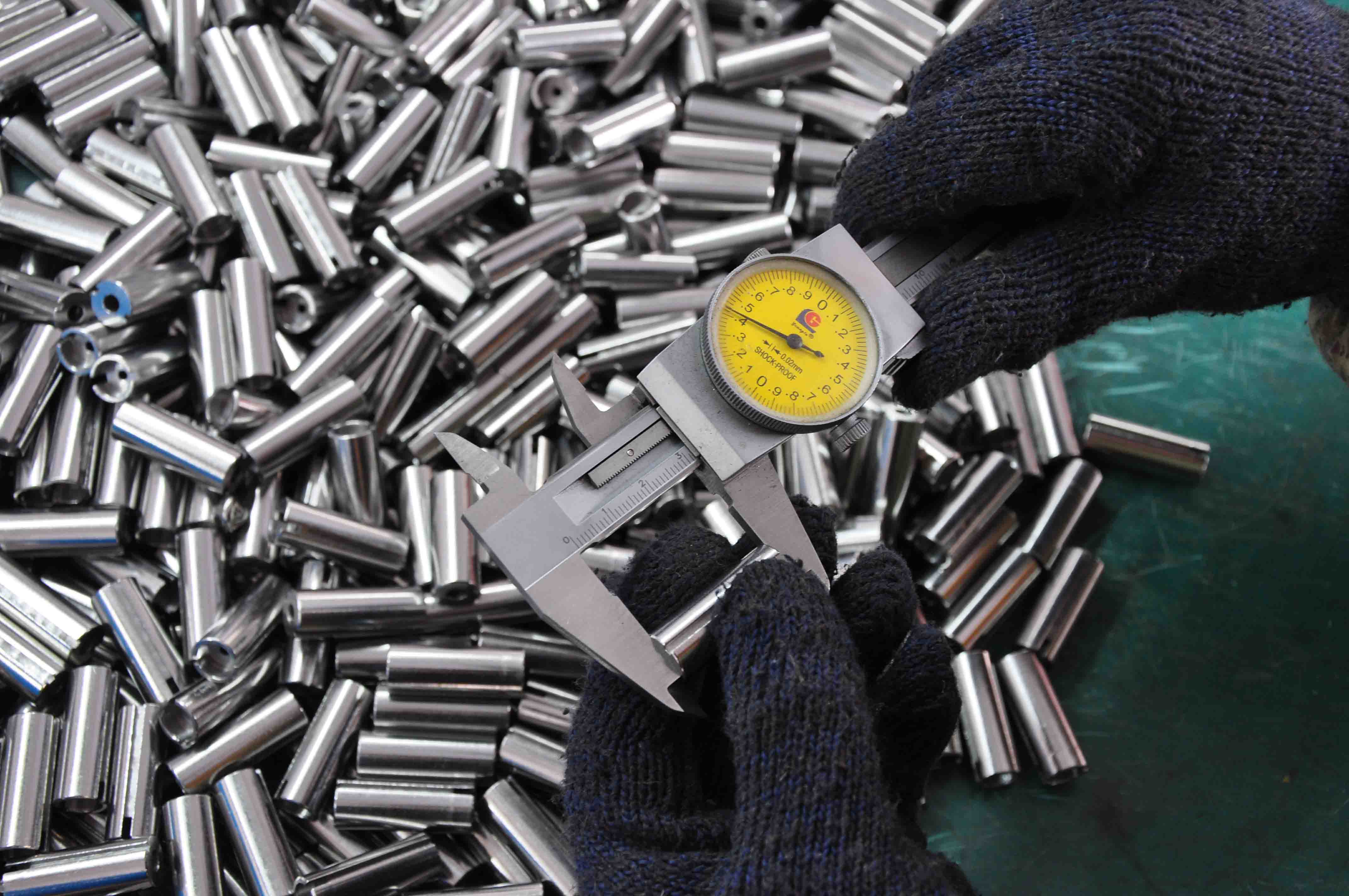

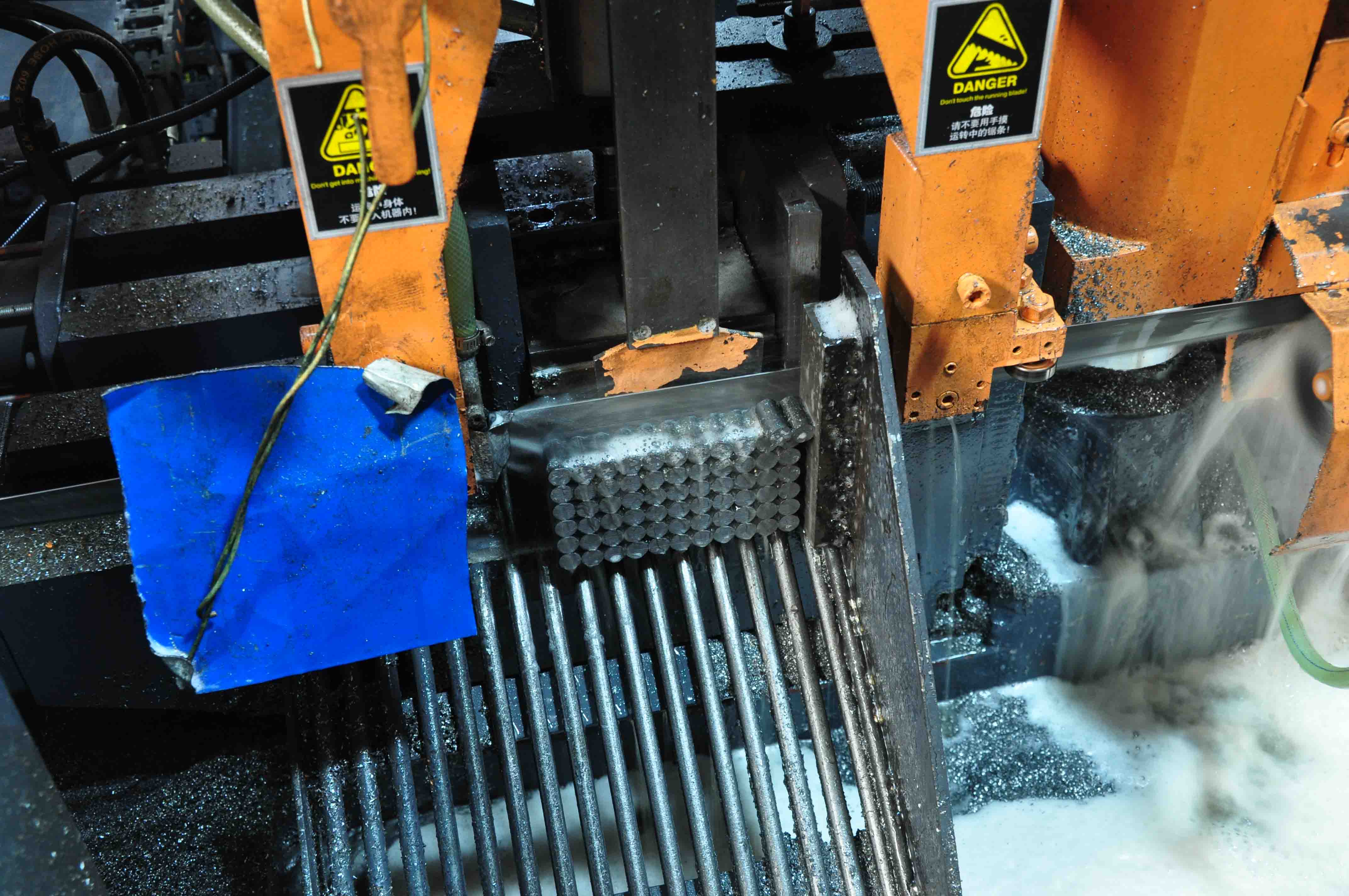

Production of Amisco Type S8 3/2 Way Flange Solenoid Operator Plunger:

More details about Amisco / Nass Type 3/2 Way NC Flange Solenoid Operator Armature Assembly in below Youtube Video:

Two-way five-way pneumatic solenoid valve with AMISCO type solenoid coil and armature assembly:

It is inevitable that there will be no failure during the use of the solenoid valve. The working principle of the solenoid valve and the steps of fault inspection, judgment, treatment and maintenance are as follows:

1. Composition and working principle:

Composition: consists of an electrical part and a pneumatic actuator;

Working principle as follows:

1) When the electrical part is energized, the electromagnetic coil generates electromagnetic force to lift the closing member from the sealing air hole, the compressed air enters the pilot valve, and the pilot valve works; when the power is off, the electromagnetic force disappears, and the valve action is reversed;

2) The pneumatic pneumatic actuator performs the joint movement of the pilot valve piston and the other end of the main piston rod to complete the switching of the two-way five-way. The working condition is as shown in the following figure:

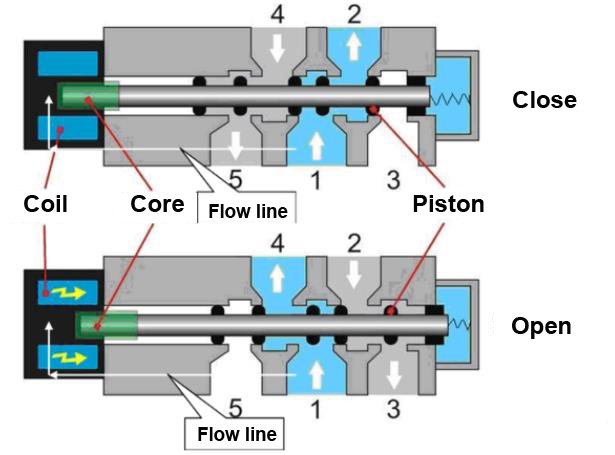

Initial state, 1, 2 intake; 4, 5 exhaust; when the coil is energized, the static iron core generates electromagnetic force to make the pilot valve act, and the compressed air enters the valve pilot piston through the air passage to start the piston, in the middle of the piston, seal The circular opening opens the channel, 1, 4 intake, 2, 3 exhaust; when the power is off, the pilot valve is reset under the action of the spring and returns to the original state.
