| Categories | Outdoor Digital Totem |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | T650EDCP-4K |
| Certification: | CE |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Delivery Time: | 4~5 weeks |
| Packaging Details: | Pearl cotton shock absorption + wood case packaging |
| Price: | Negotiable |
| CONTRAST RATIO: | 1400:1, Dynamic contrast ratio: 10000:1 |
| Resolution: | 3840 x 2160 UHD |
| Brightness: | 2000-2500 nits |
| Power Consumption: | 430W~540W |
| Touch Screen: | Projected Capacitive Touch G+G 10 Points |
| Operating Voltage: | 100 - 240 VAC 50-60Hz |

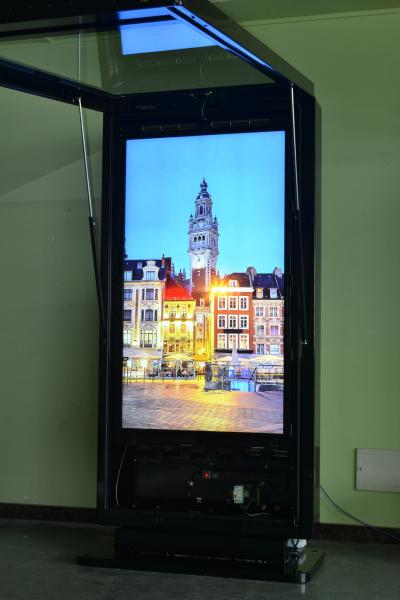

Maxbright 65" High Bright 4K Outdoor Digital Signage Totem Model : T650EDCP-4K
LED Array Backlight Enhanced
Model: T650EDCP-4K
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
3840 x 2160 QWUXGA Max. 4K Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini Ind. PC for content playback
Waterproof IP65 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 803.52 x 1428.48 mm in portrait orientation | ||
| NATIVE RESOLUTION | 2160 x 3840 RGB | ||
| PIXEL PITCH | 0.372(H) x 0.372(V) mm | ||
| COLOR | 1.07 Billon color, 10 bits | ||
| HORIZONTAL FREQ. | 244KHz ~ 280KHz | ||
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) | ||
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 5msec typical | ||
| INTERFACE | VGA, HDMI x 2 | ||
| MEDIA PLAYER | Media Player (RK3399 CPU) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 430W for 2000 nits, 540W for 2500 nits | ||
| STANDBY MODE | 5 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA, cable x 1 | |||
| OPERATING | Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 | ||
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) | ||
| TOUCH | 10 points PCAP, or metal mesh option | ||
DIMENSION WEIGHT | 2200(H) x 1110(W) x 260(D) mm, (without air-con) 185 Kg approx (without air-con) | ||
| Waterproof IP65 Enclosure | |||
| COOLING | By cooling fans controlled by MCU for outdoor | ||
| 600W air-conditioner option for harsh outdoor | |||
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass | ||
ENVIRONMENTAL OPTION | Operating Temperature -20-50oC, Wide temp. -30-50oC (with cool/warm air-con) | ||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One Year, extended 2 or 3 years available |
|
