| Categories | Radio Remote Control Grab |
|---|---|
| Brand Name: | OUCO |
| Model Number: | OUCO-12-25-RCG-00 |
| Certification: | ISO/CCS/ABS |
| Place of Origin: | Jiangsu. China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per year |
| Delivery Time: | 30 working days |
| Packaging Details: | Shipping Container/Wood Crate/nude |
| CM3: | 12~25 m³ |
| Application: | port, steel plant, power station, vessel |
| Condition: | new |
| Material: | 304 steel |
| Color: | customer requirement |
| Peel: | 2 peels |
| Warranty: | 1 year |
Wireless Remote Control Grab With Best Price for vessel unloading
Product description
Our products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Features And Advantages
1. Designed to single wired cranes.
2. No need any electric supply or motor, runs with battery.
3. Opens by radio remote control, closes by rope equipment.
4. When a cylinder fails, it can work single cylinder for a while.
5. Manufactured in range of 1 CBM to 50 CBM capacity.
Technical Specification
| Model | OUCO-RC-00 | ||||||||||
Lifting Weight (t) | 12.5 | 16 | 16 | 16 | 16 | 20 | 25 | 25 | 32 | 40 | 50 |
Grab Weight (t) | 7.2 | 7.2 | 8.03 | 6.40 | 6.87 | 8.3 | 10 | 15.1 | 14.0 | 16.9 | 21.0 |
Grab Volume (m³) | 7.8 | 2.8 | 3.1 | 5.05 | 9 | 11.5 | 16.6 | 5 | 22.5 | 23.1 | 23.2 |
| Load Capacity(t) | 5.4 | 9.0 | 8.0 | 9.5 | 9.0 | 11.7 | 15 | 9.9 | 18.0 | 33.1 | 29.0 |
| Fulls | 3 | 5 | 5 | 4 | 3 | 4 | 4 | 3 | 3 | 3 | 3 |
| A(m) | 2.60 | 1.58 | 1.76 | 2.30 | 2.19 | 3.19 | 3.46 | 2.30 | 4.00 | 4.02 | 4.36 |
| B(m) | 3.30 | 2.80 | 2.72 | 2.83 | 3.20 | 3.18 | 3.66 | 3.29 | 3.98 | 4.01 | 4.33 |
| C(m) | 3.91 | 3.33 | 3.36 | 3.78 | 4.29 | 4.34 | 4.90 | 4.07 | 5.34 | 5.48 | 5.90 |
| D(m) | 4.90 | 4.32 | 4.58 | 4.26 | 4.94 | 4.91 | 5.42 | 5.16 | 5.76 | 7.21 | 8.07 |
| E(m) | 4.15 | 3.62 | 3.68 | 3.88 | 4.32 | 4.37 | 4.86 | 4.66 | 5.04 | 6.18 | 6.96 |
Wire Rope Diameter Φ(mm) | 23.5 | 25.5 | 25.5 | 26 | 25.5 | 28 | 32.5 | 36.5 | 36 | 43 | 46 |
Pulley Diamrter Φ(mm) | 600 | 700 | 600 | 600 | 600 | 640 | 710 | 930 | 710 | 1120 | 1210 |
General Arrangement

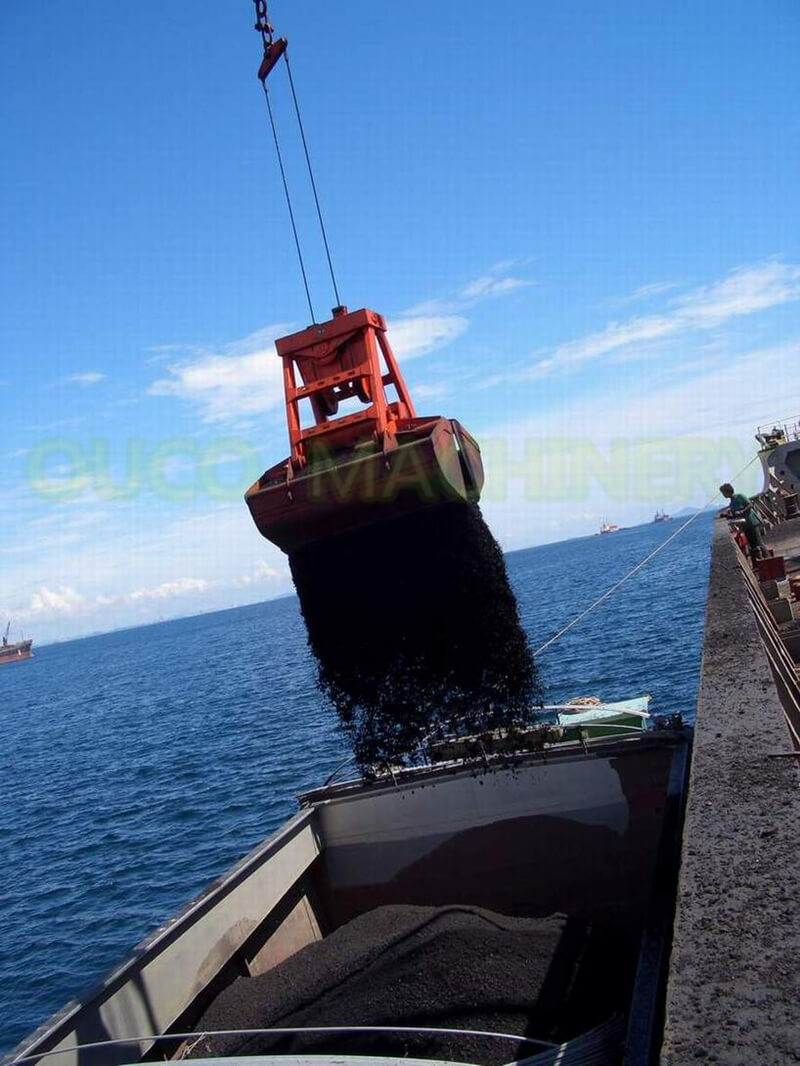

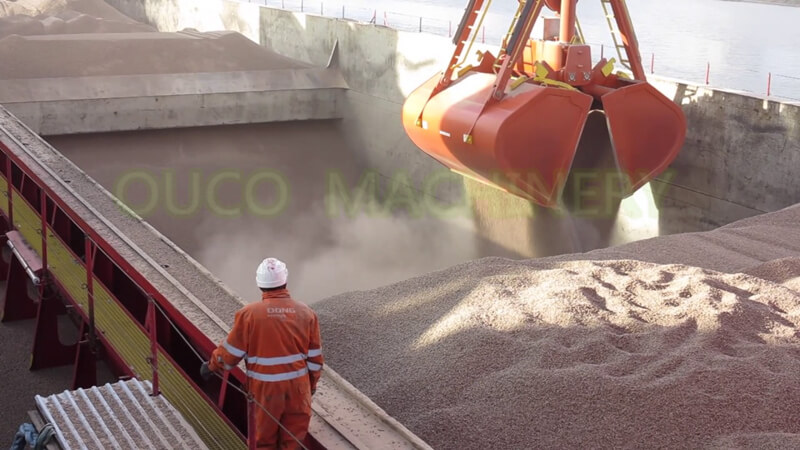

Customer Bulid

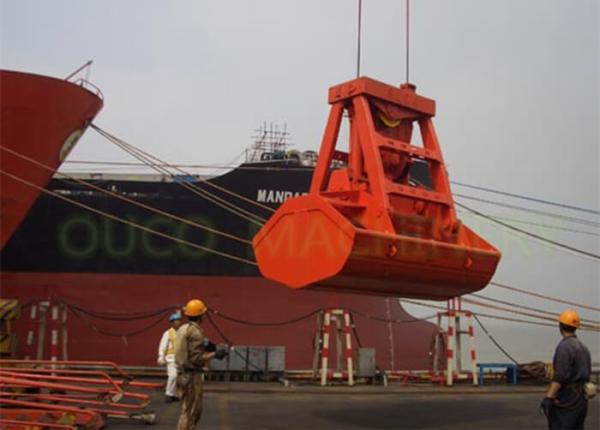

Product Images

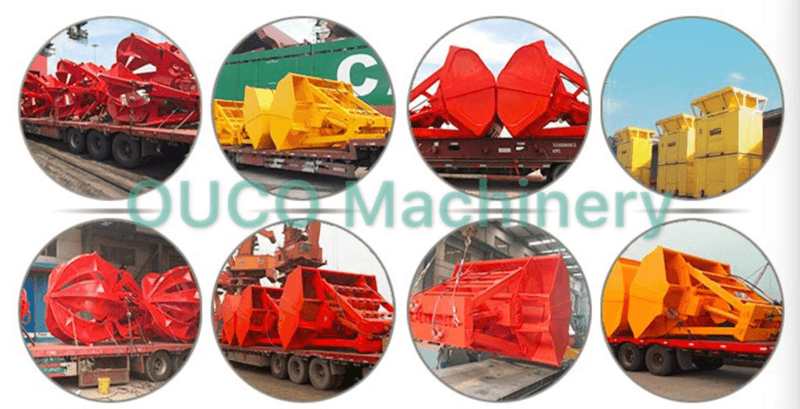

Packing & Shipping
FAQ
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other
specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with
push buttons
C: cabin(space capsule seat) control with joystick. Choose any type
as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
