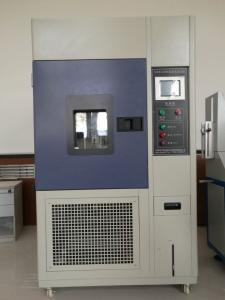

ASTM1149 Standard Rubber Industry High Precision Environmental Ozone Aging Test
Scope:
The tester is used for the ozone-resistance test of the rubber and rubber products. Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is a major factor in rubber cracking although it is rare in the atmosphere,Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Standards:
JIS K 6259 , ASTM1149, ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003,GB 2951
Parameters:
| Model | DX8549 |
| Internal dimension (WxDxH) | 500x600x500 mm (150L) |
| External dimension (WxDxH) | 1000x1000x1750 mm |
| Temperature range | RT+10~ 60℃ (suggest to use 40℃±2℃) |
| Temperature Fluctuation | ±1℃ |
| Ozone concentration | 50~1000 pphm, adjustable |
| Ozone concentration deviation | ±10% |
| Sample holder | 2pcs removable sample tray, SUS#304 stainless steel |
| Temperature controller | Programmable touch screen controller |
| Ozone concentration analysis | Concentration analysis meter |
| Ozone generator | High pressure silence discharge type |
| Protection system | Leakage, short circuit, over temperature, over heat |
|
