| Categories | Outdoor Fixed LED Display |
|---|---|
| Brand Name: | Bako Vision |
| Model Number: | BOF-B Series |
| Certification: | CE ROHS EMC ETL FCC CCC |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 sqm/month |
| Delivery Time: | 15-25 working days |
| Packaging Details: | Plywood case |
| Product Name: | Outdoor Advertising Led Display Screen |
| Cabinet Size: | Customized |
| Pannel Material: | Steel/Die-casting Aluminum |
| Servicing: | Front/Rear Service |
| Refresh Rate: | ＞1920Hz |
| Contrast Ratio: | 2000:1 |
| Brightness: | ＞5500nits |
| IP Rating(Front/Rear): | IP65/IP54 |

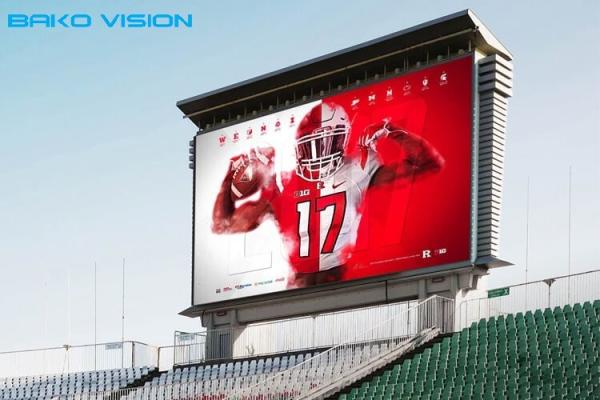

Outdoor Advertising Led Display Screen P10 OHH Fixed Scoreboard
BOF Series (BOF-B.pdf)
Outdoor Advertising LED Display Screen
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 3 / 4 / 5 / 6.67 / 8 / 10 / 16 |
| Brightness(nits): | Up to 6500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Outdoor advertising LED display screen |
Key Features
Permanent LED Scoreboards Parameters
| View Distance | In/meter | 392/10 |
| View Angle (H/V) | Deg. | 140/140 | |
| LED Type | N/A | SMD3535 | |
| Pixel Pitch | Unit | 10 | |
| Brightness | Nits | 6500 | |
Module Dimension(WxH) | In/mm | 12.6x6.3/320x160 | |
Module Pixel(WxH) | Pixel | 32x16 | |
Cabinet Dimension(WxH) | In/mm | 37.8x37.8/960x960 | |
Cabinet Pixel(WxH) | Pixel | 96x96 | |
Cabinet Weight | Kg | 50 | |
Cabinet Material | N/A | Steel | |
Maintenance Way | N/A | Rear | |
| Power Operating | AC Operation | V | AC100~240V 50-6-Hz switchable |
| Power Consumption(Max./Ave.) | W/m2 | 730/220 | |
| Control System | Refresh Rate | Hz | 1920 |
Driving Type | Scan | 1/2 | |
Digital Processing | Bit | 14 | |
Gray Scale | Level | 16384 | |
Support Input | N/A | Composite video,S-video,DVI,HDMI,SDI,HD-SDI | |
Control Distance | Meter | Ethernet cable within 100 meters, Optical fiber within 5KM | |
| Raliability | Ingress Protection | N/A | IP65 front/IP54 back |
| Operating Humidity | RH | 10~95% | |
| Operating Tem. | F/C | -4F~140F/-30~60 | |
| Life Time(50% brightness) | Hour | 100,000 |

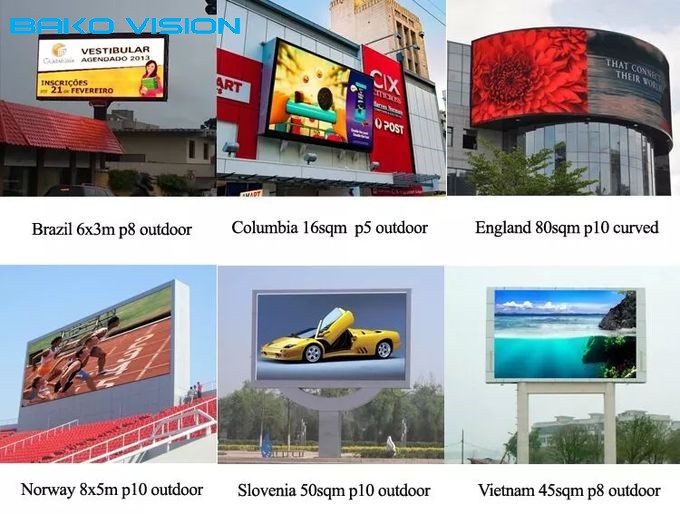

Outdoor Static LED Sign Case Study
BOF-B Series is the most common and popular outdoor fixed LED display.
It is used for outdoor commercial places, supermarkets, shopping malls, banks, hotels, etc.
BOF-B Series is the right one to choose if you need an outdoor advertising LED display screen to spread your brand.

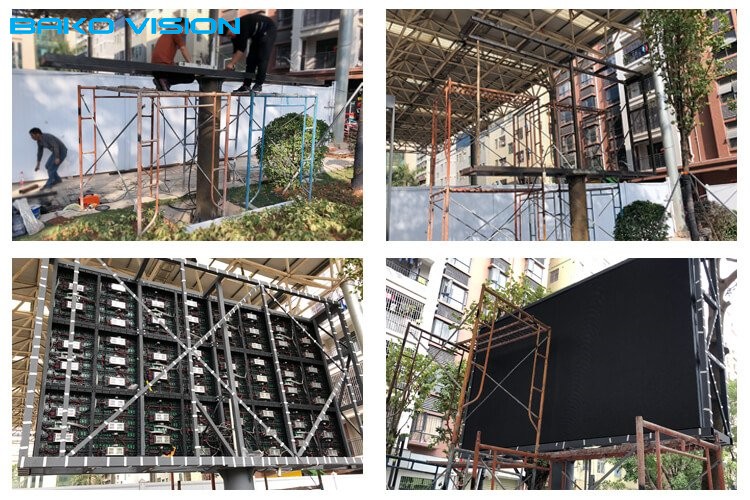

How do I install the outdoor advertising led display screen as I am new in this industry?
1. About how to install it :
The good thing is, in many countries and regions, there are companies that will do the work for you.
If you don't know much about this industry, we can recommend our partners to help you install your outdoor advertising LED display screen.
Just hit us up.
2. About how to use and operate :
We will provide online remote technical support, which can teach you how to use the outdoor advertising LED display screen.
If you don't like going that route, we have very clear video tutorials as well that will guide you on how to use and operate your outdoor advertising LED display screen.
Third, once you become our customer, you can actually visit our factory and have our guys teach you.
Lastly, if you want to work in this industry for a long time, you can become one of our dealers. We will send our technical staff to your country and train your guys on-site every two years.
About Bako Vision
FAQ:
Q1. Are you a trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What are your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery.
Will show you the Professional Quality Control Photos before you
pay the balance. Then you could see everything with your eyes
before the shipment.
Q3. How about your delivery time?
A: Generally, the sample needs 3-5 days, and mass production time
needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping is also optional.
Q5. Do you offer a guarantee for the products?
A: Yes, we offer a 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive prices to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
Q7: How can I get technical support?
A:1. We could give you free training in our factory, which include
system use, system maintenance, equipment protection, etc.
2. We could teach you remotely if anything is no clear.
|
