| Categories | Desktop Laser Cutting Machine |
|---|---|
| Brand Name: | YAHONG |
| Place of Origin: | China |
| MOQ: | 1 - 4 Sets |
| Price: | $6,000.00 |
| Supply Ability: | 100 Set/Sets per Month |
| Packaging Details: | plywood, wooden case, etc YH1530 Table Flame/Plasma CNC Metal Cutting Machine |
| Warranty: | 1 year |
| After-sales Service Provided: | Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas |
| LCD Display Dimension: | 7.0Inches |
| Effective Cutting Width (X axis): | 1500mm |
| Effective Cutting Length (Y axis): | 3000mm |
| Cross Beam Length: | 2000mm |
| Longitudinal Rail Length: | 3500mm |
| Cutting Speed: | 0-8000mm per minute |
| Cutting Thickness: | 0--300mm |
| Height regulating device: | Electric adjustable height control |
| Color: | Blue or green or customized |
| Port: | SHANGHAI |

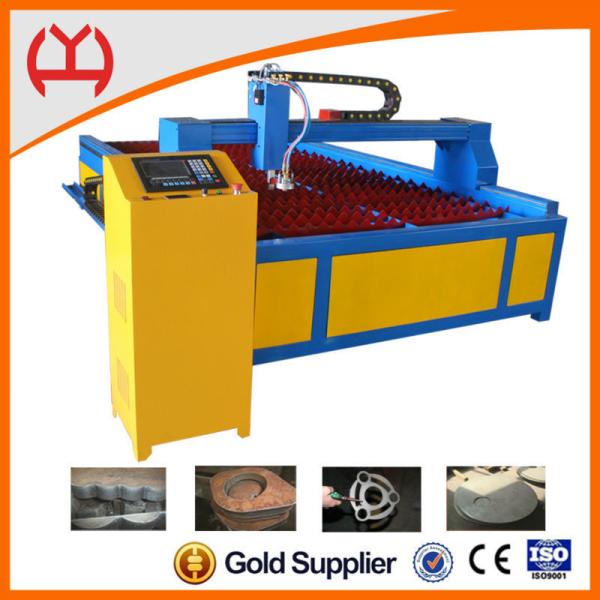

220V 50HZ Desktop Laser Engraving Machine Electric Adjustable Height Control
Product Description
◆ Not only suitable for sheet metal cutting, but also cutting
square tube, round tube, flat round and other shapes of various
metal material.
◆ Gantry moving with double driver, equipped with imported grinding
gear rack and Japan Shimpo reducer, better cutting performance and
stability.
◆ Self-centered pneumatic chuck, ensure smooth material
transportation and cutting quality.
◆ Three servo synchronous drive speed chuck, cutting power balance,
thin material will not deform due to inertial force.
I.Products advantages:
1. Bilateral drive,stable operation
2. High precision, good effect
3. Arc voltage height (THC)
4. Can be installed a water spraying device, reduce the thermal deformation
5. Can cut carbon steel, stainless steel, copper, aluminum and other non-ferrous metals
6. Simple operation & maintenance and so on.
II.Unique functions
(1). graphic display function
(2). English interface and other 5 languages
(3). Excellent graph library ,48 graphic
(4). steel plate correction function
(5). Kerf can be automatically compensated
(6). Cutting can continue when power fails
(7). Continuous return can be done
(8). Positioning and cutting can be done randomly
(9). Off-line cutting can be done:
(10). Online upgrading function
III. Main Technical Performance Indexes of products
| 1 | Cutting type | Plasma Cutting Machine |
| 2 | LCD Display Dimension | 7.0Inches |
| 3 | Effective Cutting Width (X axis) | 1500mm |
| 4 | Effective Cutting Length (Y axis) | 3000mm |
| 5 | Cross Beam Length | 2000mm |
| 6 | Longitudinal Rail Length | 3500mm |
| 7 | Cutting Speed | 0-8000mm per minute |
| 8 | Plasma Cutting Thickness | 2--20mm ( Depends on plasma power source capacity) |
| 9 | lifting body | 1set |
| 10 | Drive Mode | bilateral drive |
| 11 | Cutting Mode | plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | Height regulating device | Arc voltage height |
| 14 | File transmission | USB transmission |
| 15 | Nesting software | Fastcam standard |
| 16 | File transmission | USB |
| 17 | LCD Display Dimension | 7" colour |
| 18 | Plasma Power Source | according to customer's requirments |
| 19 | Plasma Air | Only pressed Air |
| 20 | Plasma Air Pressure | Max. 0.8Mpa |
| 21 | Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| 22 | Control accuracy | ±0.01mm |
| 23 | Power Supply Voltage/Frequency | 220V 50HZ |
| 24 | Rated Power Supply | 1000W |
| 25 | Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
Packaging & Shipping
VII.Packaging Photos:
Packing: lining--anti-static film package firstly, waterproof, moistureproof.
Intermediate--around the perimeter of the box, there is bubble.
Outer--export standard packing, fumigation-free plywood.
Package size: 3700mm*1000mm*1000mm
weight: 1000KG
Our Services
X.Why Choose US:
1. We specialized in the production and sales of CNC cutting machine
2. We are gold suppliers of alibaba
3. We have a professional sales and service team
4.Our products, quality guarantee,CE certificate, they are exported to many countries around the world, Such as Belgium. French. Indonesia. Korean. Australia . Romania. Russia. Iraq and so on.
|
