OFC Conductor electrical cable low voltage double PVC insulated lightning cable

OFC Conductor electrical cable low voltage double PVC insulated lightning cable

1. Production Application

The cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protective installation.Used to connect amplifier and audio equipment, broadcast system transmits audio signal amplified by amplifier.These cables are used for installation in signaling and alarm system or security system Infrared as well as micro wave or mixed technology systems to switchboard.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3.Construction

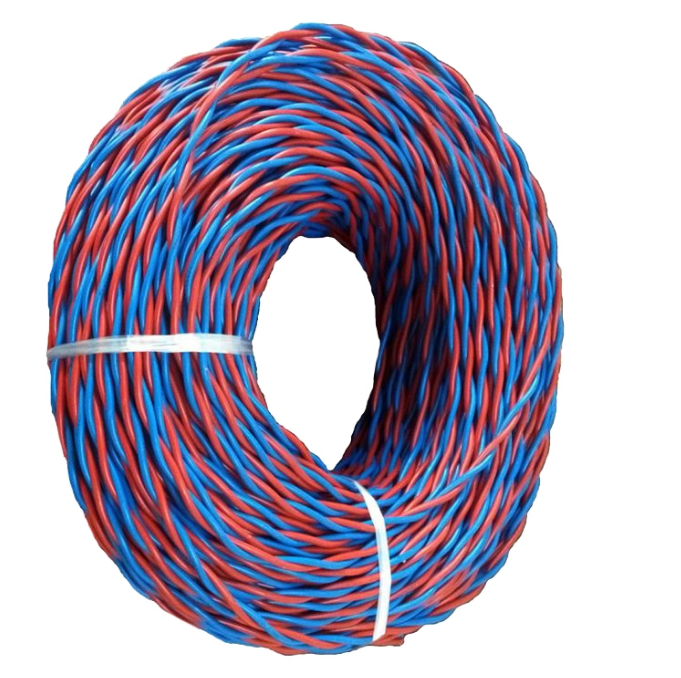

RVS Flexible Cable
Category:	RVS wire, RVB wire
Specification:	2 Cores
Conductor	2*0.12*42mm,2*0.12mm*81,2*0.14*14mm,2*0.14*54mm

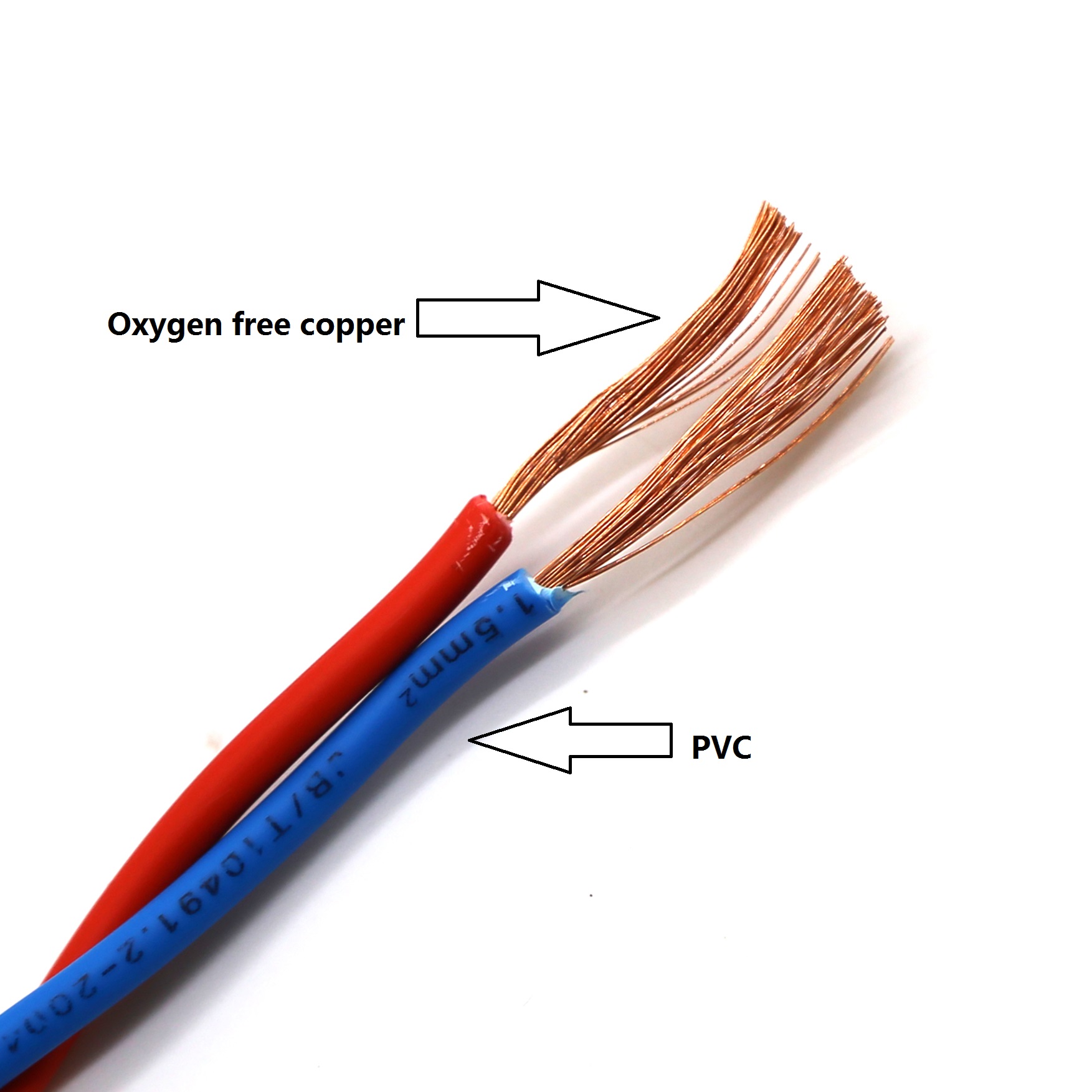

Material	Oxygen free copper
Jacket:	New PVC
Color:	Green and Red,Transparent Golden and Blue
Meters:	1mtrs-100mtrs,100-200m,200-305m
Application:	Telecommunication, Computer networks, Instrumentation,Building,Lighting

4.CHARACTERISTICS

1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.

2. The permissible bending radius in cable laying and installing.

a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.

b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.

c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.

5.Type & Special

No×Area of conductor mm²	Upper limit of average outer diameter mm	Max conductor resistance at 20℃ Ω/km	Min insulation resistance at 70℃ Ω/km	Recommended value of current carrying capacity A	Reference weight kg / km
2*0.5	6.0	39.0	0.016	9	22
2*0.75	6.2	26.0	0.014	12	29
2*1	6.6	19.5	0.013	14	34
2*1.5	7.2	13.3	0.012	18	46
2*2.5	8.2	7.98	0.0095	25	66
2*4	9.5	4.95	0.0079	33	96
2*6	11.6	3.30	0.0081	42	145

Lead time:

Quantity(box)	10	100
EST.time(day)	3-5	5-15

Product Describe:

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. Email: rainyzhang@sz-hy.cn Website: Http://www.sz-hy.cn Website on alibaba.com: sz-jhy.en.alibaba.com

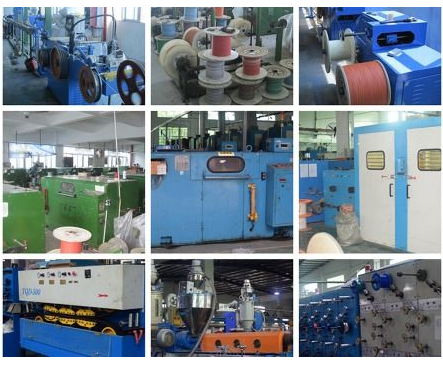

Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc Company established time: Since 1993 26 years of cable manufacturing and sales​ experience Annual sales of about 600 million US dollar 150,000 m2 Production area Over 1000 Will-trained employees 4 industrial parks Over 30 professional engineers R&D team Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

  “Shenzhen Jinhuanyu Wire and Cable Co., Ltd”, was established in 1993, is a professional manufacturer to engage in the research, development, production, sales and service of Electric Wires, Power Cables, PVC or XLPE Insulated Cables, Mineral Insulated Fire Resistant Cables, Communication Cables, and other Wire & Cables. The company is located in Songgang Sub-district, Bao’an District, Shenzhen Ctiy, China, is a leader enterprise in cables industry in South of China.

Jinhuanyu Cables
1) Bare Conductor, Bare Copper Wire, Bare Aluminum Wire.
2) 450/750V and below PVC Insulateted Electrical Wires and Power Cables.
3) 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.

4) 0.6/1kV PVC Insulated Power Cables.
5) 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 18/30kV, 26/35kV XLPE(Cross linked polyethylene) Insulated Power Cables.
7) 450/750V and below Control Cables.
8) 1kV Aerial Bundled Cables.
9) 10kV Aerial Bundled Cables.
10) Aluminum Cables, AAC (All Aluminum Cables), AAAC (All Alloy Aluminum Cables), ACSR (Aluminum Conductor Steel Reinforced Cables).
11) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.

12) Other Special Electrical Wires and Power Cables: Irradiation Cross-linked Cables, Frequency Converter Cables, Corrugated Aluminum Armored Cables, Rubber Cables and other Wires and cables.

13) Communication Cables:

a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG 6, RG 11, RG 59 Cables.
