| Categories | SFP DWDM |
|---|---|
| Brand Name: | MODULELAND |
| Model Number: | TSPL1G40D-D18 |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Packaging Details: | 10 or 20PCS /Plastic tray, 1PC/Gift box |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Certification: | CE RoHS FCC TUV |
| Place of Origin: | Hanoi, Vietnam |
| Power supply: | 3.3V |
| Wavelength: | 1563.05 |
| Data Rate: | 1.25G |
| Frequency (THZ): | 191.8 |
| Distance: | 40km |
| Connector: | Duplex LC |
| Operating temperature: | 0°c~70°c |
| Output power: | 0~+5 dBm |
| Application: | DWDM Networks |
| Hot-Pluggable: | Yes |
| Company Info. |
| Moduleland Technology Co., Ltd. |
| View Contact Details |
| Product List |
1. Features:
Duplex LC connector
Hot-Pluggable
Up to 2.67Gb/s Data rate
100GHz ITU Grid, C Band
DWDM COOLED DFB transmitter,PIN photo-detector
SMF links up to 40km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Temperature Range: 0~ 70°C
RoHS compliant
2. Applications:
1G Fibre channel
DWDM Networks
Fibre channel
3. Description:
Moduleland's TSPL1G40D-Dxx is a very compact 1.25Gb/s optical transceiver module for serial optical communication applications at 1.25Gb/s. The TSPL1G40D-Dxx converts a 1.25Gb/s serial electrical data stream to 2.67Gb/s optical output signal and a 1.25Gb/s optical input signal to 1.25Gb/s serial electrical data streams. The high speed 2.67Gb/s electrical interface is fully compliant with SFI specification.
The high performance DWDM COOLED DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 40km links.
4. Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Supply Voltage | Vcc | 3.135 | 3.465 | V | ||
Supply Current | Icc | 450 | mA | |||
Power Consumption | P | 1.5 | W | |||
Transmitter Section: | ||||||
Input differential impedance | Rin | 100 | Ω | 1 | ||
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) | V | -0.3 | 4 | V | ||
Differential input voltage swing | Vin,pp | 180 | 700 | mV | 2 | |
Transmit Disable Voltage | VD | 2 | Vcc | V | 3 | |
Transmit Enable Voltage | VEN | Vee | Vee+0.8 | V | ||
Receiver Section: | ||||||
Single Ended Output Voltage Tolerance | V | -0.3 | 4 | V | ||
Rx Output Diff Voltage | Vo | 300 | 850 | mV | ||
Rx Output Rise and Fall Time | Tr/Tf | 30 | ps | 4 | ||
LOS Fault | VLOS fault | 2 | VccHOST | V | 5 | |
LOS Normal | VLOS norm | Vee | Vee+0.8 | V | 5 | |
Moduleland locating in Hanoi Vietnam, is a factory based manufacturer of optical transceivers covering various types widely applied to WAN, LAN, SAN, Fiber Channel, FTTX, etc.

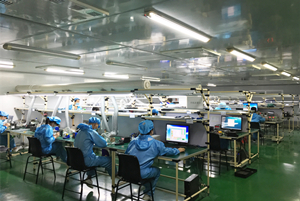

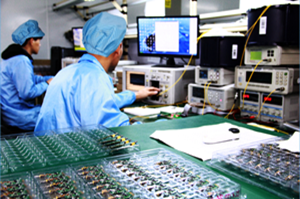

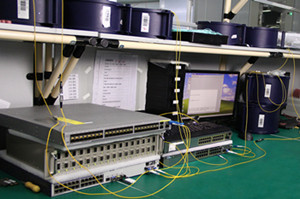

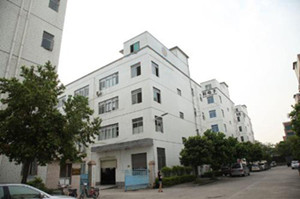

Office&workshop:
Certificate
1. Warranty
Five years Warranty, three monthes free exchange and one year free repairing.
2. OEM, ODM are welcome.
3. Free sample will be provided.
Free samples under a certain value are available,with freight cost collect.
4. Any Inquire is welcome.
Any inquire will be replied within 24 hours.
5. After-sales service.
a. From the beginning of production till the successful delivery,
we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection,
please feel free to contact us, we'll provide solution
Q: What payment terms do you accept?
A: T/T,L/C at sight,Western Union are acceptable. Other payment terms are negotiable.
Q: what is the lead time?
A: For standard products,we keep enough stock,cqn ship out in 1-3 days after PO confirmation.For big quantity and special products,Please check lead time with our sales representative.
Q: What are the shipping ways can you offer?
A: For small quantity we ship by Express like DHL,FedEX,TNT,UPS, EMS etc. For large quantity we can use airshipment ot other appointed method by clients.
Q: What equipments can your products be compatible with?
A: Our products can be compatible with all market brand
|
