Narrow Legs Electric Pallet Truck Stacker , 1200kg Pedestrian Pallet Stacker

Categories Electric Pallet Stacker
Brand Name: LTMG
Model Number: ERB12
Certification: CE, ISO
Place of Origin: China
MOQ: 1 unit
Price: USD 2043-2631 PER SET
Payment Terms: T/T, Western Union, MoneyGram,, L/C
Supply Ability: 300 unit per month
Delivery Time: 30days
Packaging Details: nude packing. in container
Battery: 210AH
mast type: 2-stage mast
lifting height: 3m
controller: curtis,ZAPI
charging time: 10hours can charge the battery full
using time: use 8 hours still battery is empty
type: for double pallet
optional: handrails, pedal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

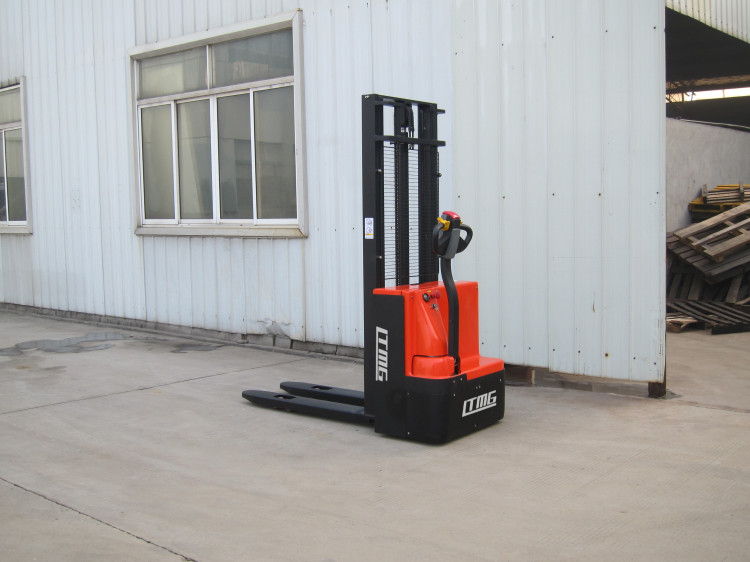

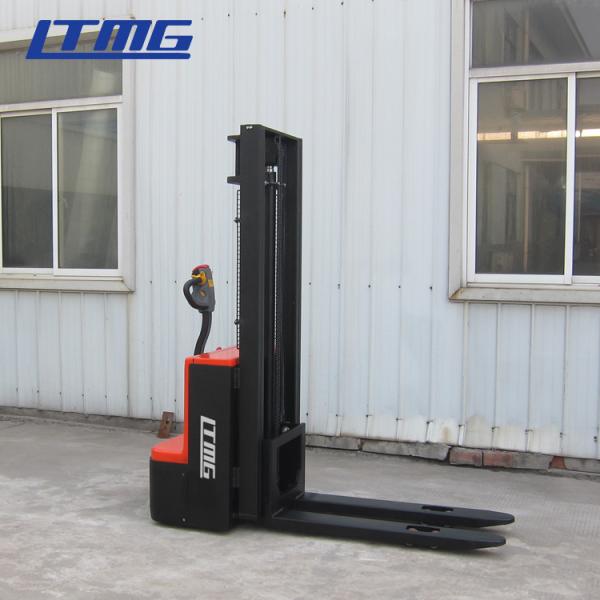

Narrow Legs Electric Pallet Truck Stacker , 1200kg Pedestrian Pallet Stacker

1200kg Narrow legs electric pallet stacker with 3m lifting height


1200kg electric pallet stacker feature


electric stacker is pedestrian stacker. It has a robust tilting mast specifically designed for nonstandard racking system and pallets. It has same flexibility as 3-wheels forklift for easy training, but costs much less. Solid count-weight and press-adding systems support the constant and stable performance whether loaded or unloaded. Adding optional foldable stand-on platform increases operator’s working comfort and efficiency.


· Maximum lifting height up to 4 meters.
· Dual cylinder system for increased stability on loading
· Battery level indicator and hour meter

The Specification of 1200kg electric stacker

Model ERB12T
Type Narrow legs
Mast type 2-Stage STD
Load capacitykg1200
Load centermm600
Wheel basemm1270
Operating type Walkle/Stand on
Wheels
Wheel type PU
Wheel quantity driving wheel/Balance wheel/Bearing wheel 1/2/4
Demension
Standard lift heightmm3000
Lowered fork heightmm85
Fork size(length/width/thickness)mm1150(1200)/180/60
Overall lengthmm1940/2413
Overall widthmm812
Outside with between legsmm570/600/650/685
Inside with between legsmm180/230/280/315
Min.turning radiusmm1525/1935
Min.aisle width for pallets 800×1200mm2130/2520
Min.aisle width for pallets 1000×1200mm2160/2540
Min.groud clearancemm30
Performance
Travel speed,laden/unladenkm/h5/5
Lift speed,laden/unladenmm/s110/130
Travel speed,laden/unladenmm/s120/110
radeability,laden/unladen%5/7
Electric configuration
Drive motor /Lift motor/Steering motorkwAC1.2/DC2.2/DC0.15
Battery voltageV24
Battery capacityAh210
Brake Electromagnetic/Regenerative
Controller CURTIS
Weight
Battery weightkg200
Service weight with batterykg1110


After-sale service


Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
