| Categories | Carbide Bushing Sleeve Bearing |
|---|---|
| Brand Name: | ASEEDER |
| Model Number: | BEARING-01224 |
| Certification: | ISO9001,API, |
| Place of Origin: | CHINA |
| MOQ: | 5 pieces |
| Price: | Negotatioin |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 3-5 weeks depend on quantity |
| Packaging Details: | Aseeder standard packing or as customer's demand |
| Name: | Carbide Bushing Sleeve Bearing |
| Feature: | Wear Resistance |
| Application: | Oil industry,pump etc |
| Advantage:: | High rigidity & durable |
| Size: | According to customer's requirement |
| Service: | One stop service |
| Company Info. |
| SEED TECHNOLOGIES CORP., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

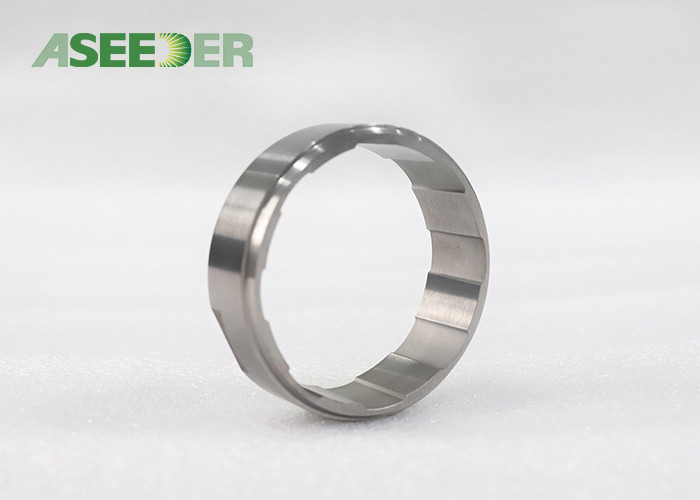

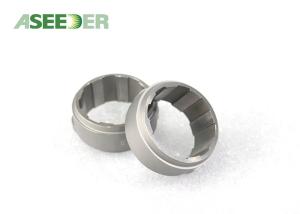

Wear Resistance Carbide Bushing Sleeve Bearing With 100% Raw Material
Carbide Bushing Sleeve Bearing Introduction
1. It's widely used in petrochemical industries and other
industries which call for high properties of the bearing bushings
or shaft sleeves.
2. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion etc.
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new
grade as per special application.
| Aseeder Grade | Co (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
Specialty precision machining Manufactory!
Type | Welcome all inquiries, requirements and customized,OEM,ODM orders | ||
Processing | According to your drawing or picture or samples | ||
Material | Stainaless steel,iron,Aluminum,copper,CRS, | ||
Tolerance | As drawing request | ||
Surface treatment | Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention | ||
Logo | Laser carving or Oil injection (according to your logo file) | ||
Samples | Acceptable. | ||
Surface Roughness | As drawings | ||
Usage | machinery, home appliances, electronic products, electric appliances,stationery, computers, power switches , Medical Equipment etc.Oil and Gas indurstry | ||
Machining equipment | CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc. | ||
Advantage | All the order can customize .Premium quality ,product with high precision. | ||
Delivery | 5-10 days for samples .20-30 working days for mass productions. | ||
Payment terms | T/T, PAYPAL, L/C,NET 70, | ||
Port | Guangzhou,Tianjing,Shenzhen,Shanghai,CHINA | ||
|
