Customized Fence Height Side Wall Semi Trailer With 600mm Fence Height

Categories Side Wall Semi Trailer
Brand Name: TRUCKMAN AUTO
Model Number: TKMSWL370
Certification: SGS, BV, CTN
Place of Origin: CHINA
MOQ: 1 Unit
Price: Price is negotiable
Payment Terms: L/C, T/T
Supply Ability: 1500 Pcs / One Month
Delivery Time: 20-25 days
Packaging Details: Nude
Material: Q345B
Use: Truck Trailer
Max payload: 60T
Oem no.: side wall semi trailer
Suspension: Mechanical Suspension,Air Suspension
King pin: JOST 2.0 inch (50mm)/3.5 inch (90mm)
Landing gear: Standard 28Ton
Function: transport containers and bulk cargo
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

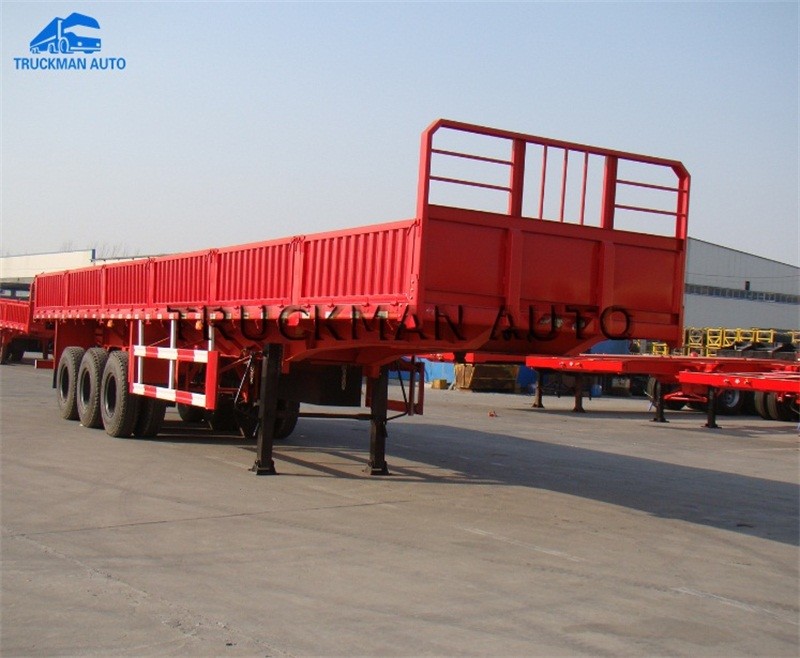

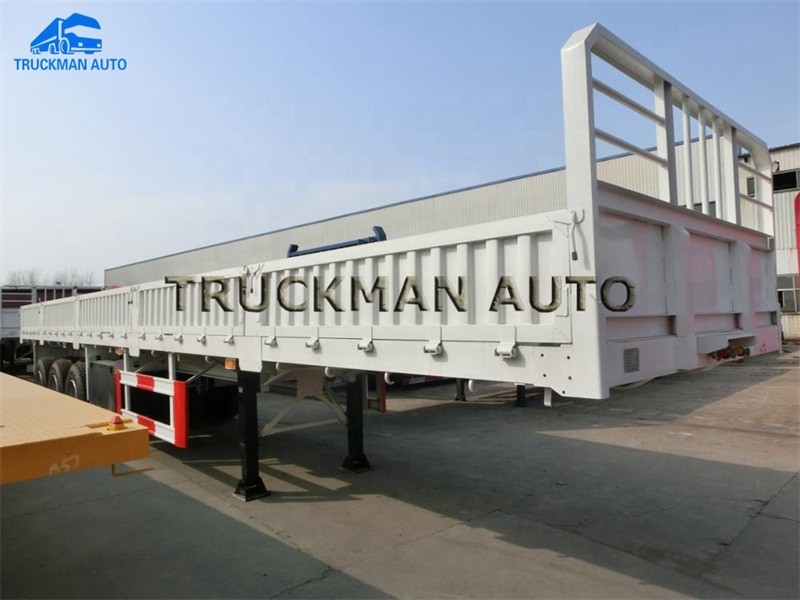

Customized Fence Height Side Wall Semi Trailer With 600mm Fence Height

Side Wall Type Container Transport Semi Trailer With 600mm Fence Height


Side Wall Cargo Trailer Main Specification.


-. The fence height usually is 800mm or 600mm, also accept the customs made.

-. After remove the trailer fence, the trailer could transport the container.

-. We supply one repair box for the trailer, supply all kind of repair tools.

-. FUWA, BPW, HJ famous brand axles could optional.


Payload60,000kg
Tare weight65,00kg
Dimension12400-13000x2500x2550mm+(with removeable sidewall 800mm)
Wheel base1310mm
Fabric
Main beamBeam height 500mm, upper plate-14mm, bottom plate double 8mm, middle plate-16mm, made of q345 steel
Cross/side beamQ235, channel steel
Box thickness(mm)Bottom: 3mm, side: 2mm
PaintingComplete chassis sand blasting to clean rust,coat of anti-corrosive prime,2coatsof finalpaints
Tool box1piecs
WeldingLong member beams be co2 arc welded by 80% penetration on external side and bead.all
Other parts welding with mag process
Parts
Axle3x13ton fuwa axle
SuspensionMechanical suspension
Leaf spring90(w)mm*13(thickness)mm*10layers
Tyre12r22.5 ,13pcs,triangle tire
Rim9.0-22.5
King pinJost king pin bolt-in type 50mm
Landing gearDouble speed,external 28tons,
Brake systemWabco valve dual line braking system
Electrical system1 voltage 24v 2 receptacle:7ways(7wire harness),
Tail lamp with turn signal,brake light&reflectors,



-2. Shipment Video For The Side Wall Trailer.


We put 4 pcs side wall cargo trailer together, help customers reduce the freight cost.
