| Categories | Industrial Hood And Housing |
|---|---|
| Brand Name: | ZJHK |
| Model Number: | H3A housing |
| Certification: | CE, RoHS, SGS, CQC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotible |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 / Month |
| Delivery Time: | 5 Days |
| Packaging Details: | Standard Export Cartons |
| Degree of protection: | IP65 |
| Housing Type:: | Bulkhead mounting with plastic cover |
| Housing Model: | H3A Series |
| Material: | Zinc die-cast |
| Package: | Indivisual Packing in Box |
| Company Info. |
| Zhejiang Haoke Electric Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

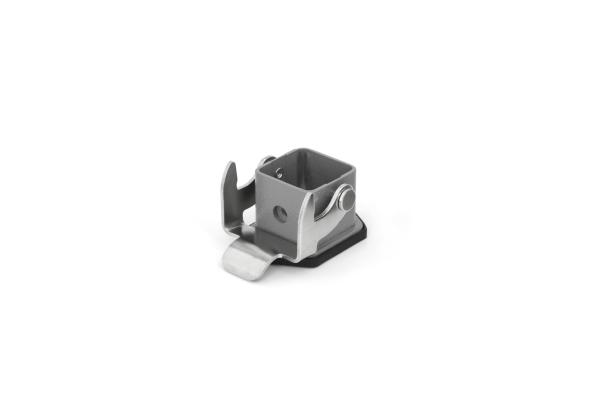

H3A Connector housing IP65

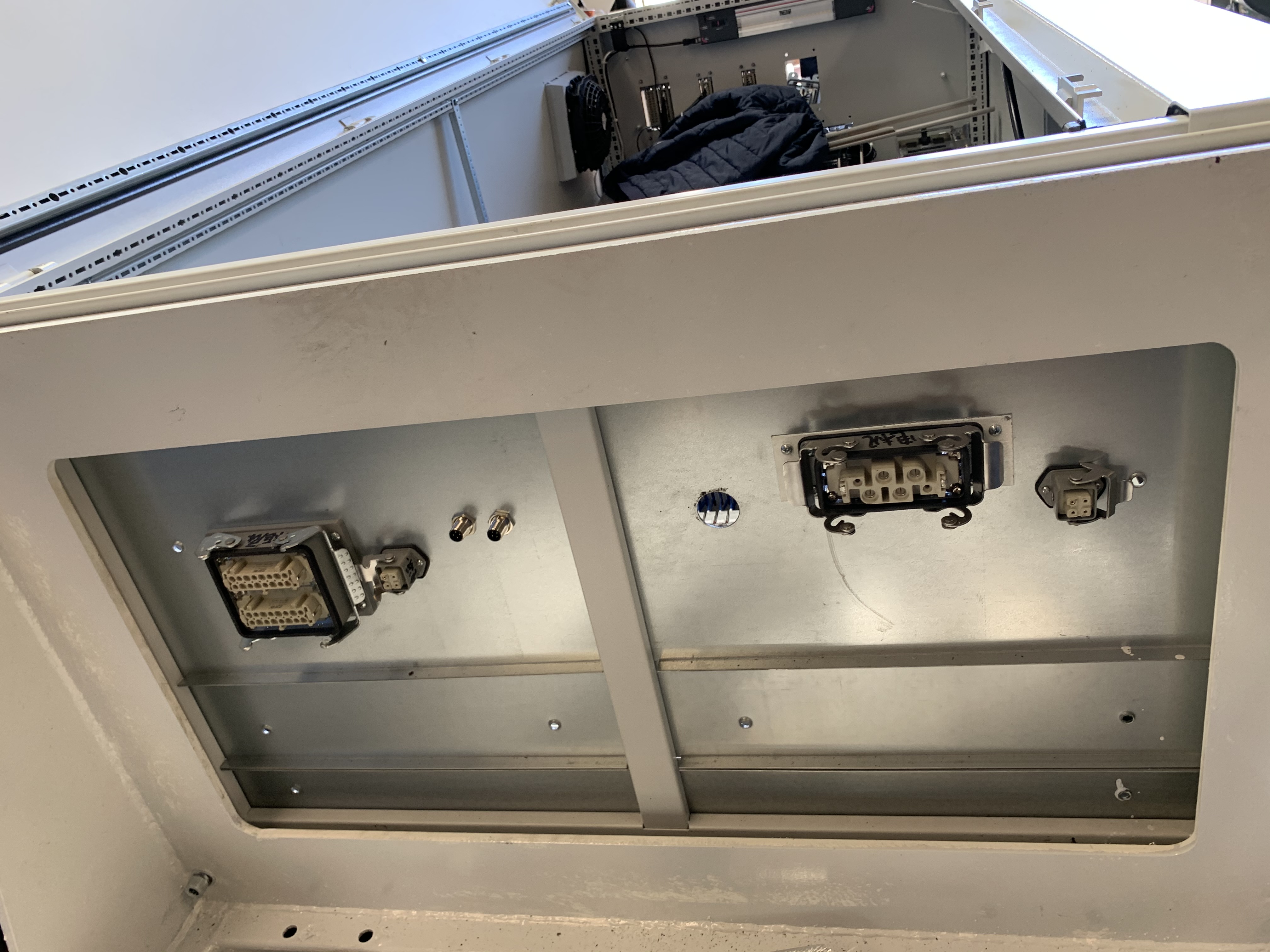

Electric Cabinet housing
| Category | Hoods/Housings |
| Series of hoods/housings | HA |
| Type of hood/housing | Bulkhead mounted housing |
| Description of hood/housing | Bulkhead mounting Bulkhead mounting With metal cover Bulkhead mounting side entry Surface mounting ( bottom open ) Surface mounting ( bottom close ) Cable to cable |
| Cable thread ( For surface mounting and cable to cable ) | M20 / PG11 / PG13.5 |
| Locking type | Single locking lever |
| Size | 3 A |
| Field of application | Standard Hoods/housings for industrial applications |
| Details | for male inserts |
| Limiting temperature | -40 ... +125 °C |
| Protect level | IP65 |
| Material ( housing ) | Zinc die-cast |
| Surface ( housing ) | Powder-coated |
| Colour ( housing ) | Dust grey |
| Material (locking) | Steel |
| Surface (locking) | Zinc plated |
| CE | Yes |
| Origin | China |
| Manufacturer | ZJHK |

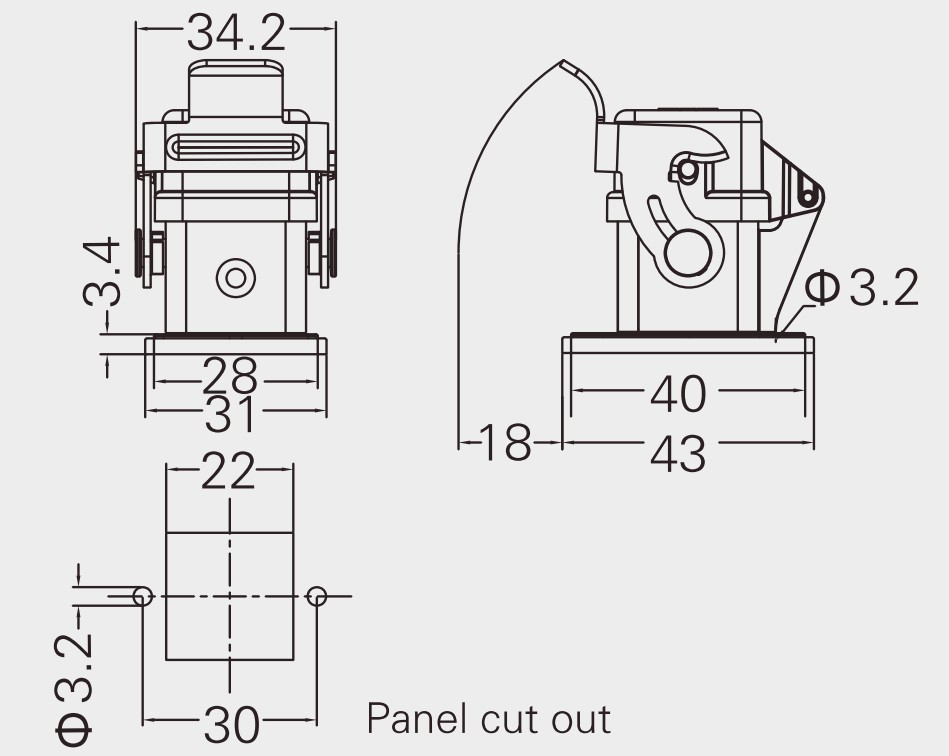

Details of 3A Bulkhead Mounting housing

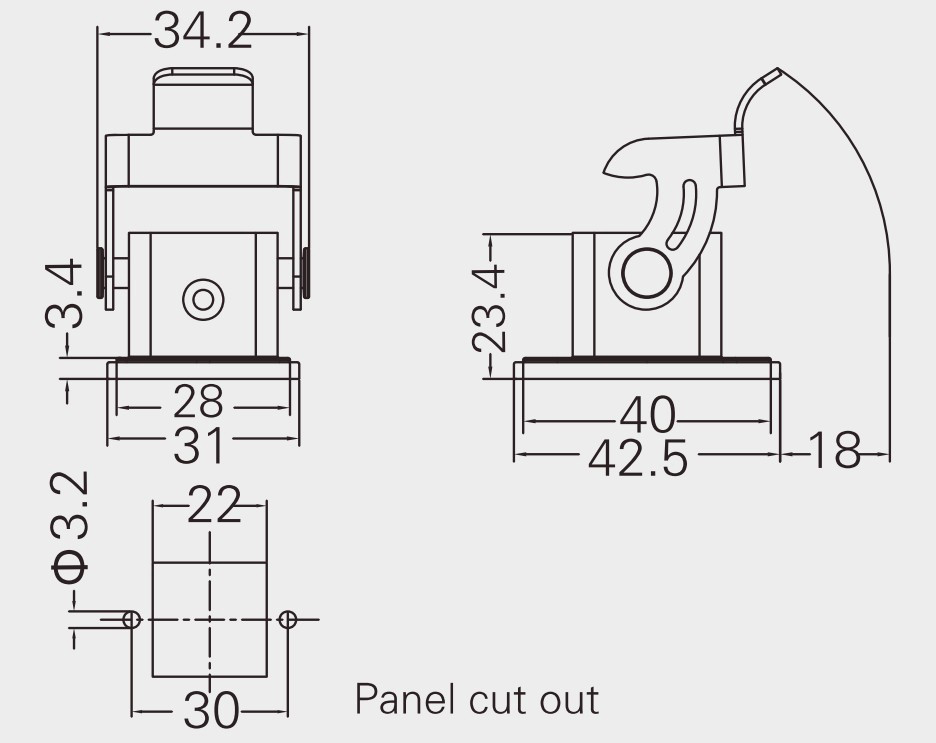

Bulkhead Mounting With Metal Cover
Bulkhead Side Entry
Cable to Cable
|
