| Categories | PTFE Rod |
|---|---|
| Brand Name: | Chunhuan |
| Model Number: | PTFE Rod |
| Certification: | ISO 9001, MSDS,Reach,FDA |
| Place of Origin: | jiangsu,china |
| MOQ: | 20 kg |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 T/M |
| Delivery Time: | 5-8 days |
| Packaging Details: | Wooden Box |
| Color: | Colorful |
| Material: | PTFE filled with different pigment |
| Density: | 2.1-2.3 g/cm3 |
| Tensile Strength: | 13-25 Mpa |
| Elongation: | 200-400 % |

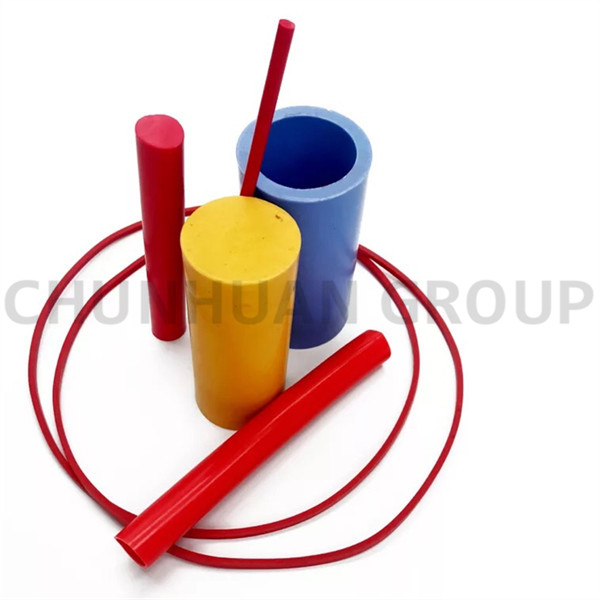

100% virgin colored PTFE round bar rod :
Product features
1.Low temperature and high temperature resistance (-190 °C- +250 °C)
2.corrosion resistance , weather resistance
3.high lubricity, no adhesion
4.non-toxic,
5.non-flammable
6.acid and alkali resistance (except molten alkali metals)
7.antioxidant.
Product specification
| Item | diamater(mm) | length(mm) |
| Molded rod | 6-500 | 100-1000 |
| Extruded rod | 4-200 | 1000or2000 |
| Pasted rod | 1-4 | 1000-5000 |
| Note: The length could be processed according to requirement of customers | ||
Product Properties
| Property | Unit | Pure PTFE Result |
| Tensile strength | MPa | ≥30 |
| Ultimate strength | % | 250 |
| Apparent density | g/cm3 | 2.1-2.3 |
| Dialectic strength | KV/mm | 10 |
| Resistance of surface (woring voltage 500v) | Ω | 3.7*106 |
| Material Name | Compound % | Main Properties | Color |
| PTFE | / | Very low coefficient of friction and excellent chemical resistance. FDA approved | White |
| Glass Filled PTFE | Up to 40% | Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance. | White cream |
| Carbon Filled PTFE | Up to 35% | Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties. | Black |
| Graphite Filled PTFE | Up to 25% | Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way. | Black |
| Bronze Filled PTFE | Up to 60% | Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance. | Dark Brown |
| Molybdenum disulphide(MoS2 | Up to 5% | Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction. | Blue azure |
| PEEK Filled PTFE | Up to 20% | Increased thermal resistance, sliding properties, surface hardness. Superior properties on dynamic applications. | Light Brown |
| PEEK | / | Excellent mechanical properties including strength, rigidity, impact resistance, low wear rate and low coefficient of friction, retained over a wide range of service temperatures | Light Brown |
| PEEK compound | / | Improves technical and chemical properties like deformation under load, wear resistance, thermal expansion and electrical conductivity. | / |
| PVDF | / | Resistant to UV radiation and offers high mechanical strength and abrasion resistance. | Beige |
| PCTFE | / | Better mechanical properties than other fluoropolymers, low permeability | Translucent |
| PFA | / | Better mechanical properties than other fluoropolymers, low permeability | Natural |
Application
1. battery electrode,electric products;
2. lubricate bearings, piston rings, oil seals, seals and other machinery,
3. filling different materials to enhance performance of the desired area according to requirements of customers.
Our Service
1) Your Inquiry Will Be Replied Within 2 Hours During Working
Time,Within 24hours When Rest Time.
2) Our Working Time Is 7.30 AM --17:30 PM,Monday To Saturday.
3) General Samples Time Can Be Arranged Within 2--5days.
4) Orders Will Be Produced Exactly As Request And Approved Samples.
5) When Mass Production,We Send Photos To Show The Production
Line.And Confirm The Estimate Time Again.
6) At The End Of Mass Production,Photos And Samples Will Send To
You For Approval.You Can Arrange The Inspection.
7) Before Shipment,Our QC Will Have Inspection To Make Sure The
Quality.
8) We Always Try Best To Ensure Every Order To Delivery In Time.
Payment Terms
1) T/T,Cash,L/C.
2) 30% Deposit,70% Balance Before Shipment.
3) Lead Time: 15 Days After Received Deposited For 2tons.
4) Delivery Way: By Sea,By Air, By EMS,DHL,UPS,TNT,FedEx.
Packing & Delivery
For Sample: By EMS,DHL,UPS,TNT,FedEx
Around 5--7 Working Days To Arrive
For Bulk Order:
1. Qty Of 2tons,Within 15 Days.
2. Via Sea
3. Delivery Time:we Will Finish Production In 15days For 2tons.
4. For 20 GP,May Nee Around 30days.
