| Categories | Glass Fibre Mesh Fabric |
|---|---|
| Place of Origin: | JiangSu, Suqian |
| Brand Name: | ShunYuan |
| Payment Terms: | L/C, T/T |
| Supply Ability: | We are the REAL factory directly supplying products. We are NOT a trade company. Always Contact us for information and our BEST PRICE |
| Delivery Time: | 14 days |
| MOQ: | Any amount of order are welcomed. Also we are happy to supply samples for free. |
| Packaging Details: | Roll wrapped in a plastic bag, packed in a carton box. |
| Price: | Contact us for Best Price |
| Certification: | ISO9001:2000, JC/T 174-2005, GJB 1679-93 |
| Model Number: | We offering multiple models by customer requests. Contact us now to get the more detailed data! |
High silica glass fiber cloth is a kind of high temperature
resistant inorganic fiber. The melting point is close to 1700 ℃,
can be used in 900 ℃ environment for a long time. Melting point is
close to 1700℃, can be used in 900℃ environment for a long time.
It’s a large used for heat ablation of rockets, missiles,
spacecraft, high-temperature heat insulation, insulating fireproof
materials, etc. The content of silica (SiO2) is higher than 96%,
and the heat loss is lower than 3%. Available in plain weave and
satin weave. Thickness is from 0.1 mm to 1.5 mm.
Product Features:
| Specification Model | SiO2 % Content | Thickness(mm) | Width (cm) | Length(m) | Weight(g/㎡) | Operating temp.(℃) | Structure | |
| Sintering | No sintering | |||||||
| GGYZ-240/P | ≥96.0 | 0.26 | 82±2 | 86±2 | 80±2 | 240.0 | 1000 | Plain weave |
| GGYZ-580/D | ≥96.0 | 0.65 | 100±2 | 106±2 | 50±1 | 580.0 | 1000 | Plain weave |
| GGYZE-430/X | ≥90.0 | 0.48 | 90±2 | 96±2 | 45±1 | 430.0 | 800 | Satin |
| GGYZ-680/D | ≥96.0 | 0.76 | 90±2 | 96±2 | 50±1 | 680.0 | 1000 | Satin |
| GGYZE-640/D | ≥90.0 | 0.75 | 90±2 | 96±2 | 45±1 | 640.0 | 800 | Satin |
| GGYZ-900/D | ≥96.0 | 1.00 | 100±2 | 106±2 | 40±1 | 900.0 | 1000 | Satin |
| GGYZ-1200/D | ≥96.0 | 1.26 | 90±2 | 96±2 | 50±1 | 1200.0 | 1000 | Satin |
| GGYZE-1200/D | ≥90.0 | 1.26 | 90±2 | 96±2 | 45±1 | 1200.0 | 800 | Satin |
| GGYZ-1400/D | ≥96.0 | 1.50 | 90±2 | 96±2 | 50±1 | 1400.0 | 1000 | Satin |
| GGYZE-1500/D | ≥90.0 | 1.60 | 90±2 | 96±2 | 45±1 | 1500.0 | 800 | Satin |
| Note: can be customized according to customer’s requirements or sample | ||||||||

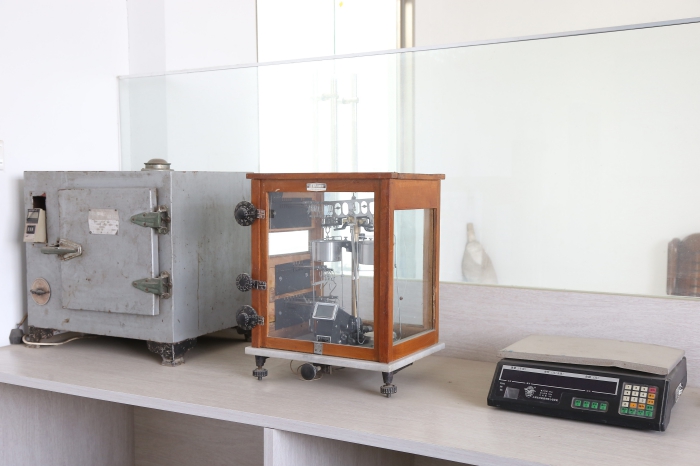

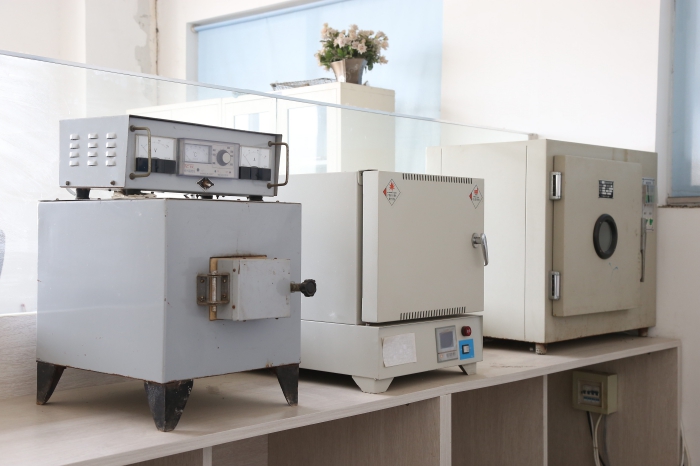

Our Qulity Laboratory
|
