40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

Categories SINOTRUK Tipper Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ3257N3647
Certification: ISO/3C/BV/IFA/SGS
Place of Origin: China
MOQ: 1unit
Price: US$30000-USD40000/unit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 units per month
Delivery Time: 20-30 working days after deposit or LC
Packaging Details: Nude, Waxing in RORO or bulk ship
Manufacturer: SINOTRUK (CNHTC)
Series:: HOWO
Product Name:: Tipper
Drive Type:: 6X4, LHD or RHD
Loading Capacity:: 25-40tons
Engine: 371hp
GearBox: HW19710 HW19712
Front Axle: HF9
Rear axle: HC16
Color: According customer request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

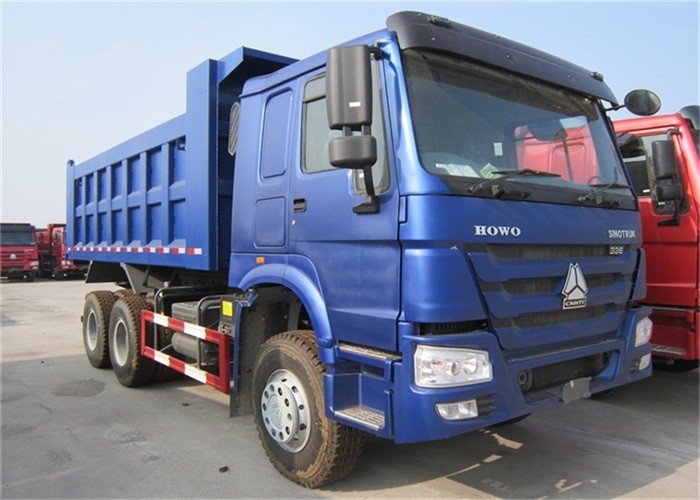

40 Tons 336hp 371hp 6x4 SINOTRUK 10 Wheeler Dump Tipper Truck

SINOTRUK Tipper Truck Sinotruk HOWO 6x4 336hp 371hp 40tons Dumper Tipping 10 Wheeler Dump Tipper Truck



Chassis parameters
Chassis modelZZ3257N3647Chassis brandSINOTRUK
Overall dimensions7865x2496x3025mmWheel base3625+1350mm
Front/rear wheel track2022, 1830/1830mmFront/rear suspension1500/890mm
Approach/departure angle19/50°Maximum speed75km/h
Chassis ManufacturerChina National Heavy Duty Truck Group Co.,Ltd

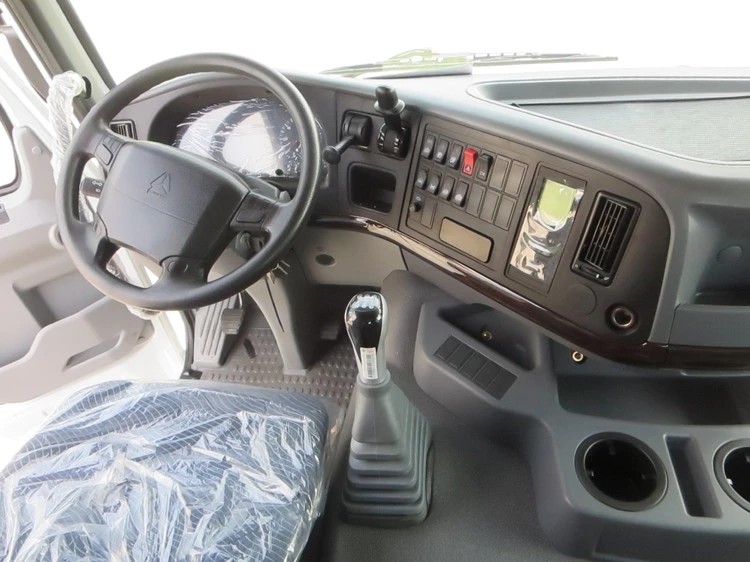

CabConfiguration

HW76 cab,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Air conditioner

Colorwhite,other color is optional

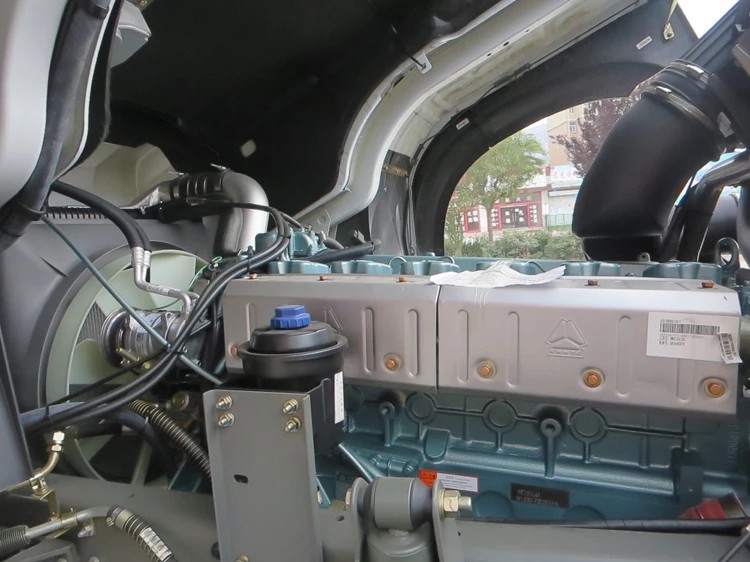

EngineModelWD615.47
EmissionEuro 2
Type6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling ,diesel engine
Rated power371hp,rated power speed 2000rpm
Displacement9726ml
Max.torque1500N.m
Bore x stroke126x130mm
ManufacturerChina National Heavy Duty Truck Group Co.,Ltd
TireSize12.00R20 Steel wire tire.
Number10+1 nos
Clutch430 diaphragm clutch
Front axleHF9

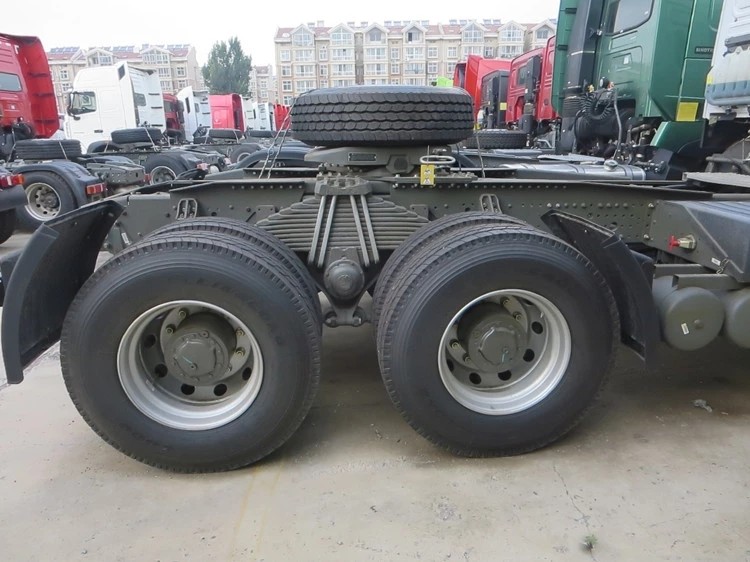

Rear axleHC16
SteeringZF8118 Power assisted steering.
Drive form6X4
Rated voltage24V,DC
TransmissionsHW19710 gearbox ,10 speed forward 2 reverse
Steering wheelLeft hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

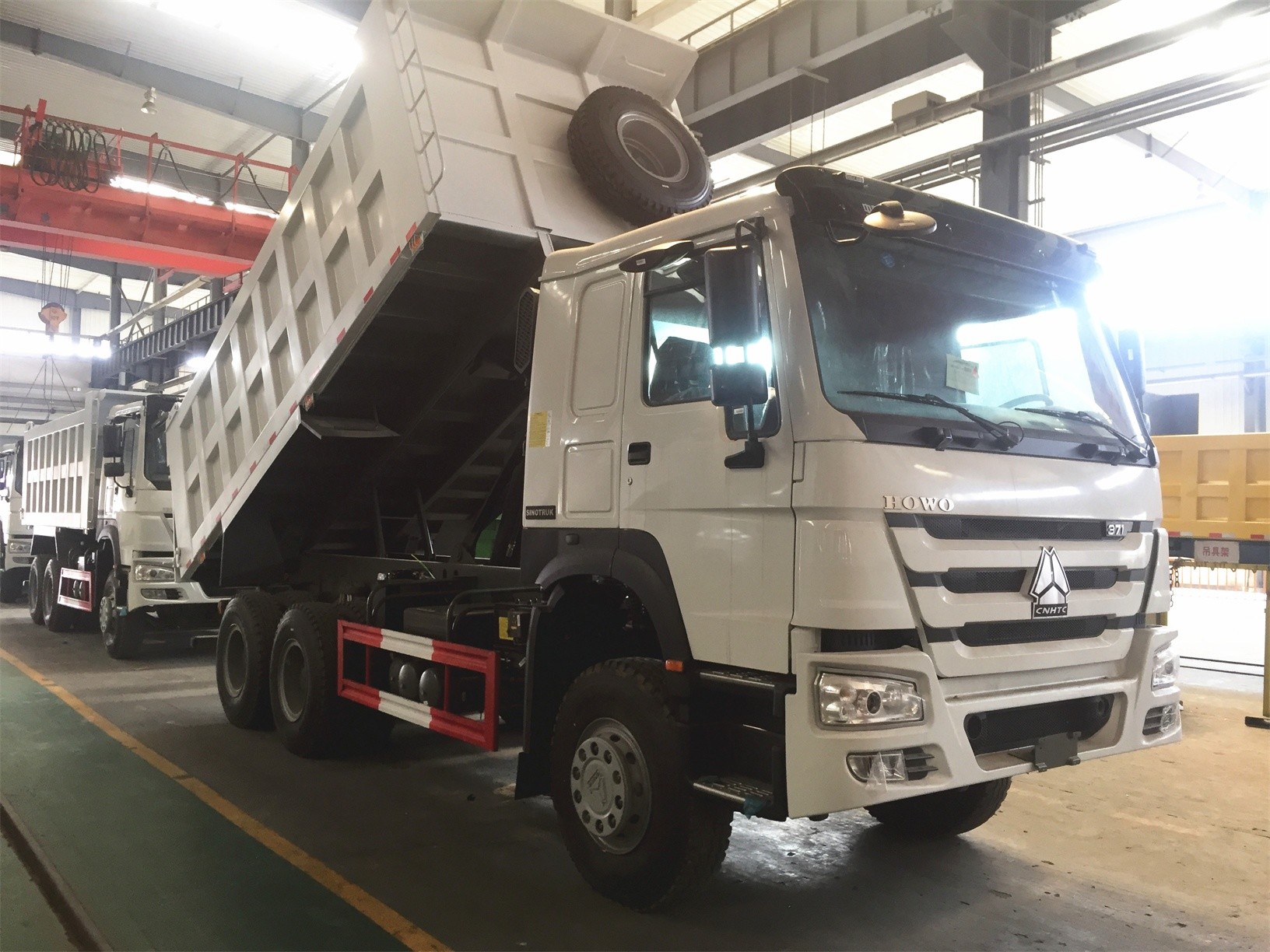

Dump truck structure parameters
Van body dimensions5600X2300X1000mmSide wall6mm
Bottom plate8mmVan body materialCommon steel
Lifting positionMiddleDumping directionRear
Oil CylinderDomestic 220Color and LogoOptional
Standard configurationchassis,sub frame,van body side 6mm bottom 8mm,domestic middle lifting hydraulic cylinder 220,common steel,four longitudinal beams,rectangular van body,single door
Selective configuration




Cargo Box:
