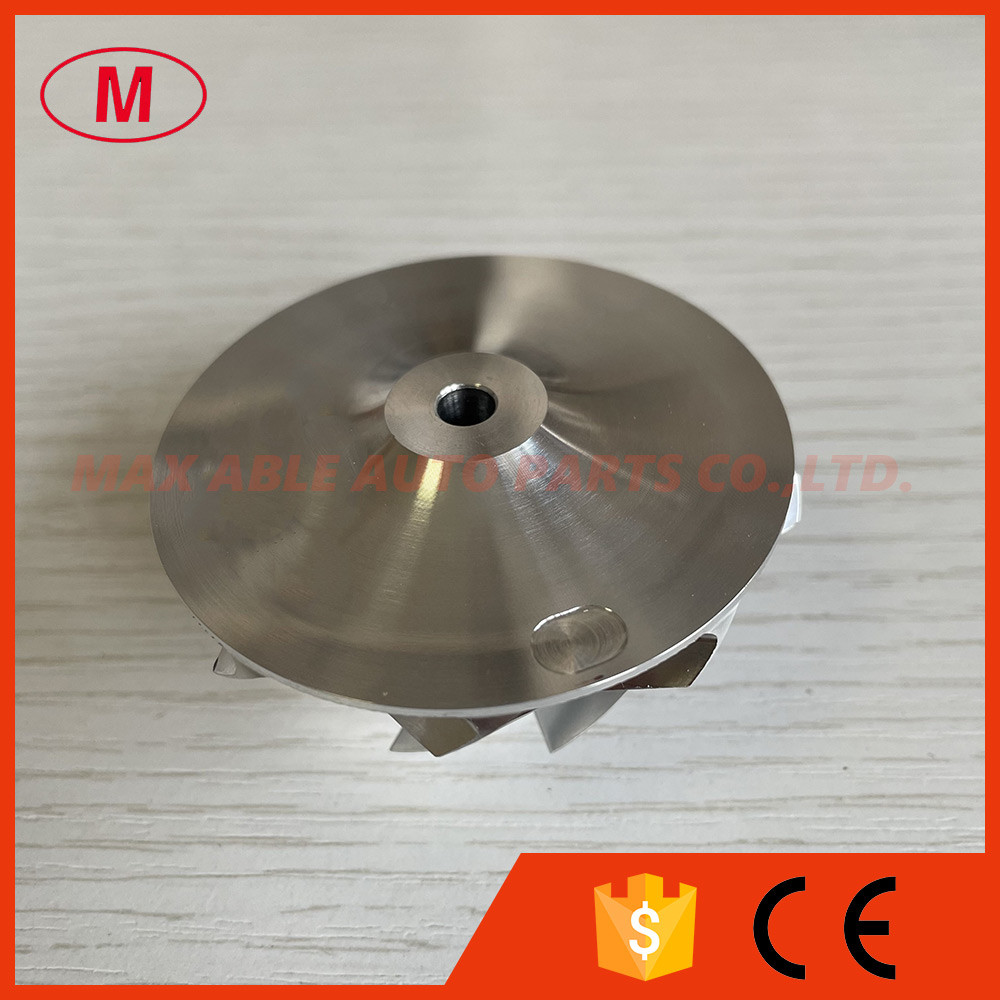

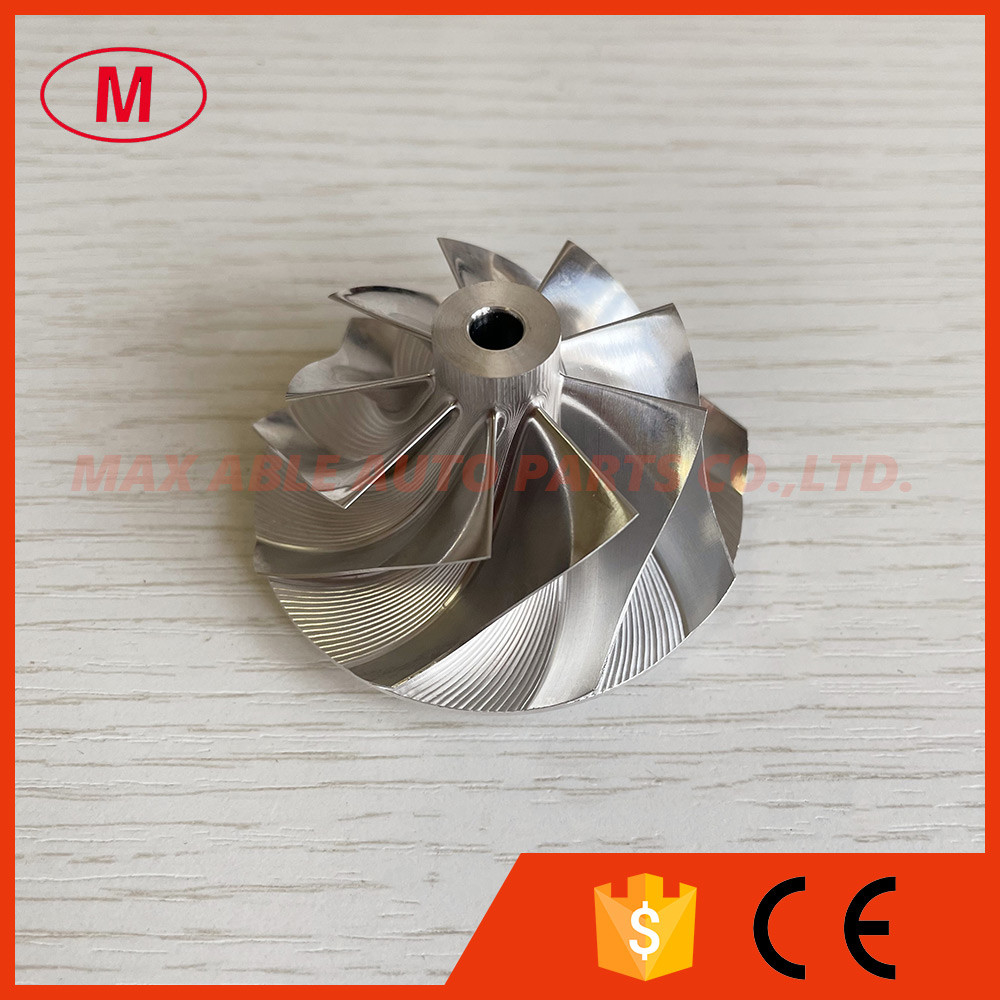

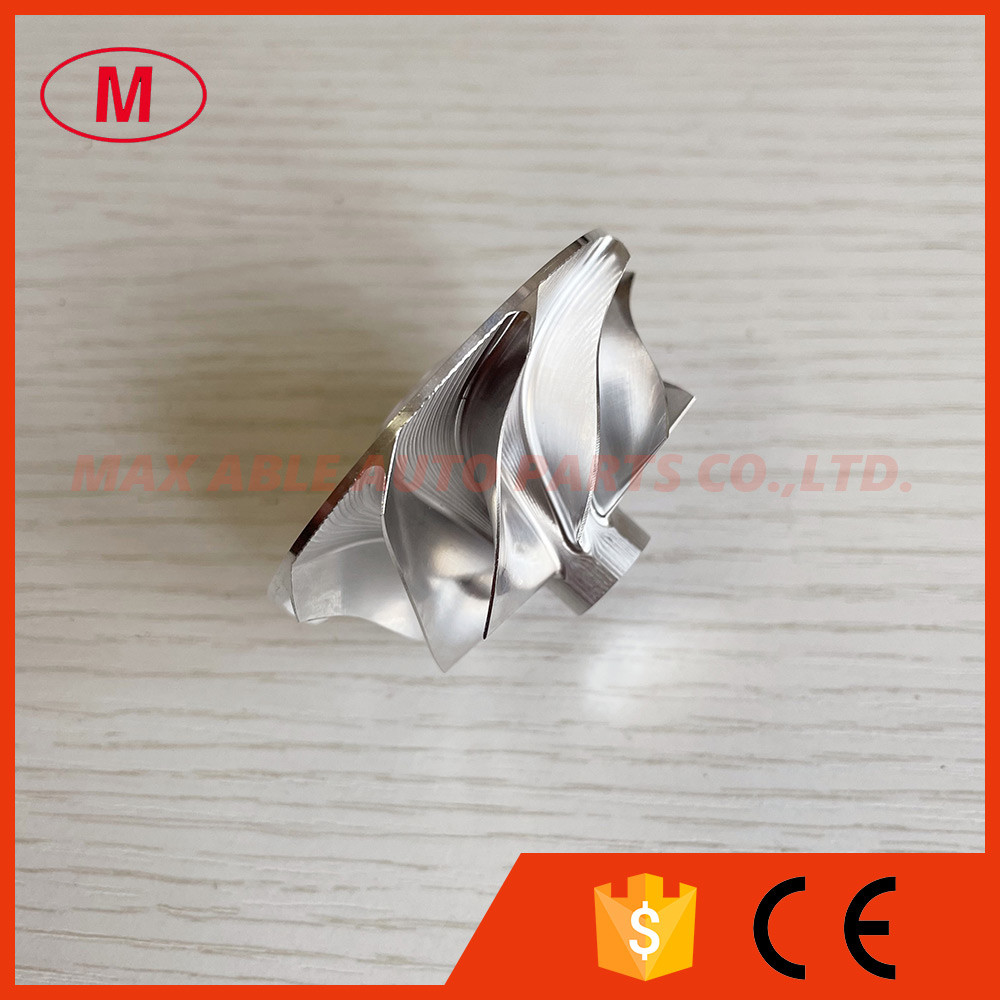

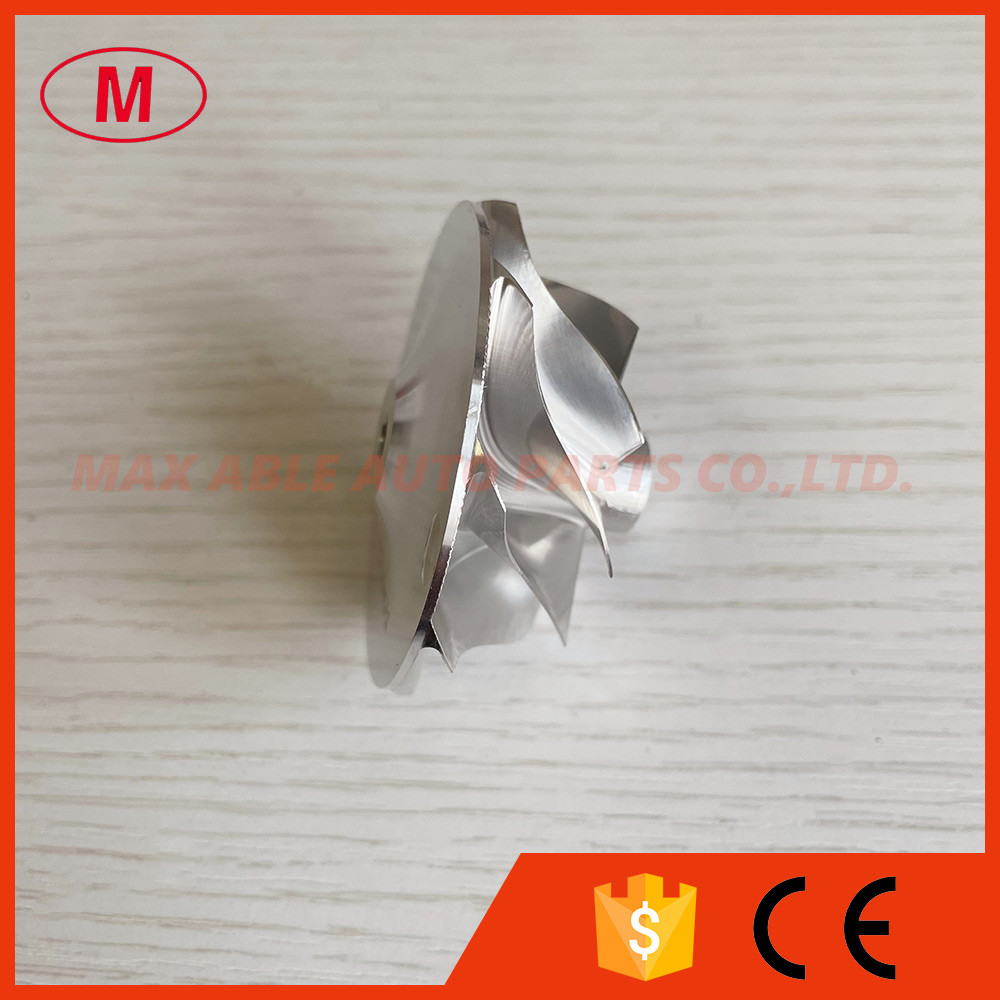

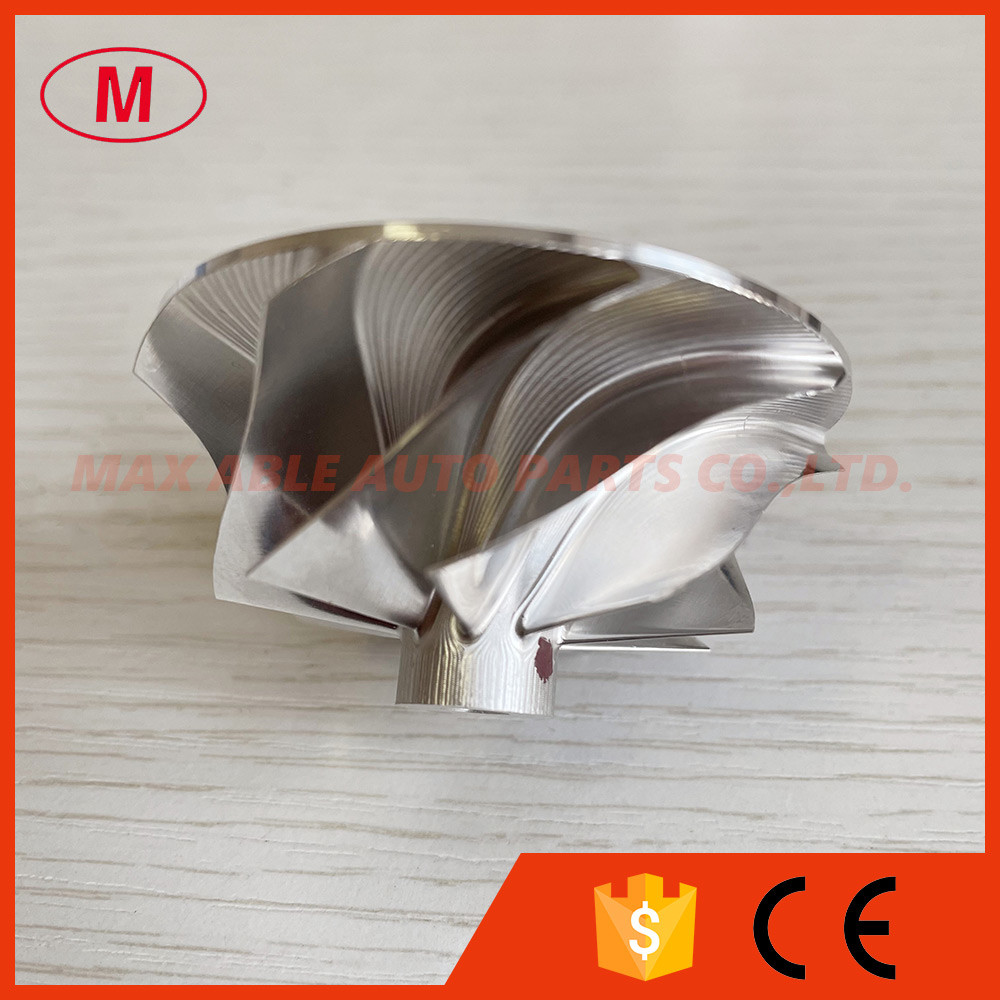

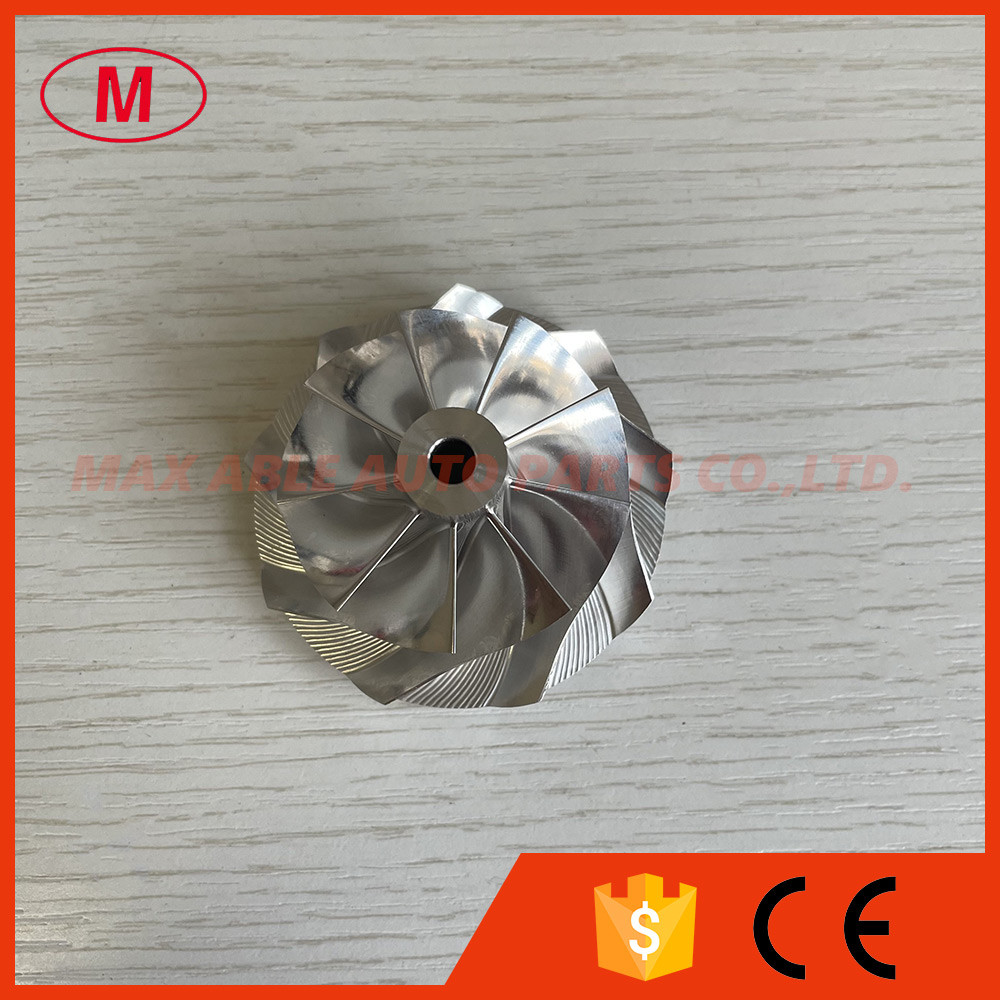

MGT2056 reverse 1217-02 42.27/56.02mm 9+0 Blades turbo aluminum 2618/Milling/billet compressor wheel for 851676-0004

1.Model:MGT2056 reverse

2. MGT2056 reverse 1217-02 42.27/56.02mm 9+0 Blades turbo aluminum 2618/Milling/billet compressor wheel for 851676-0004
3.Size:

Nose diameter:12.45mm

Inducer:42.27mm

Exducer:56.02mm

Tapered tip exducer:57.88mm

Tip height:4.99mm

Trailing angle:60 degree

Superback:3.81mm

Cutback:6.5mm

Overall height:30.90mm

Bore:5.08mm

bore type:through

SP Height angle:0.00

Blades height:21.55mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:13.6 degree

reverse rotation

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

6.Application:

851676-0004

All the compressor wheels have been balanced.
