Yellow Sinotruk Howo 6x4 371hp Heavy Duty Dump Truck

Categories Heavy Duty Dump Truck
Brand Name: Sinotruk
Model Number: ZZ3257N3847A
Certification: ISO CCC
Place of Origin: Jinan China
MOQ: 1 unit
Price: $10000
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 units each month
Delivery Time: Within 20 work days after receive order
Packaging Details: Nude, Polished with wax before shipping on board
Name: Sinotruk Howo 6x4 371hp Heavy Duty Dump
Cabin: HOWO Long Cabin
Engine: WD615.47, Euro II emission standard
Transmission: HW19710
Overall Dimension(L*W*H)(mm): 8545×2496×3386
Body Dimension(L*W*H)(mm): 5600*2300*1500
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

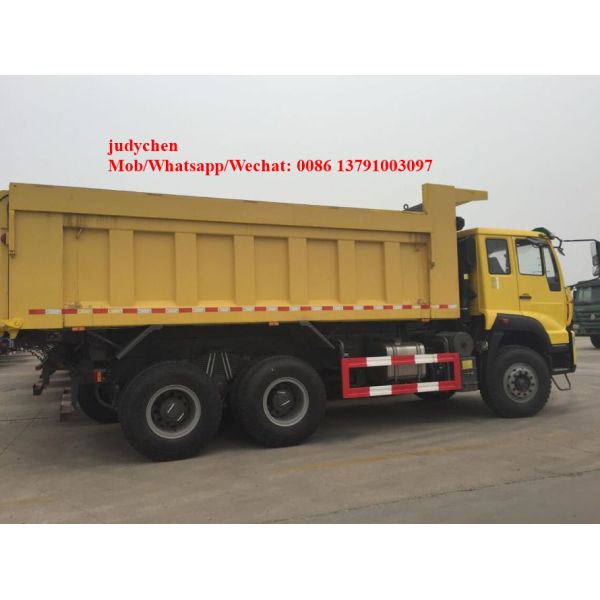

Yellow Sinotruk Howo 6x4 371hp Heavy Duty Dump Truck

Sinotruk Howo 6x4 371hp Heavy Duty Dump Truck Tipper Truck Yellow Color


Sinotruk Howo 6x4 dumper truck is using for loading sand, stone or some construction waste material.


ModelZZ3257N3847A
CabinHOWO Long Cabin, with two seats, one bed, with Air Conditioner

Engine

MakeSINOTRUK
ModelWD615.47, Euro II emission standard
Horse Power (Hp/rpm)371/2200
Max.Toruqe(Nm/rpm)1460/1300-1600
Displacement(L) L9.726
TypeDIESEL, 6-cylinder in-line with water cooling, intercooling and turbo-charging
TransmissionHW19710, 10 speeds forward and 2 speed reverse.
Front AxleHF9(9T), Steering with double T-cross section beam
Driving Axle

HC16(16T), Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles

Ratio: 5.73 Option: 6.72

ratio: 6.833

SuspensionFront suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering SystemZF8118, Hydraulic steering with power assistance
Brake SystemService brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Tire12.00R20
Fuel Tank Capacity (L)300L Diesel Tank
Electrics

Operating voltage: 24V, negative grounded

Starter: 24V, 5.4Kw

Alternator: 3-phase, 28V, 1500W

Batteries: 2x12V, 165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Kurb Weight (Kg)12,420
Gross Vehicle Weight (kg)41,000
Overall Dimension(L*W*H)(mm)8545×2496×3386
Body Dimension(L*W*H)(mm)5600*2300*1500
Wheelbase(mm)3825+1350
Max. Speed (km/h)75
