| Categories | Dust Collector Cartridge Filters |
|---|---|
| Brand Name: | XINYUAN |
| Model Number: | XY-120 |
| Certification: | ISO9001 quality management system certification |
| Place of Origin: | Langfang City, Hebei Province, China |
| MOQ: | 100 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Delivery Time: | 24 hours |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Specification size (mm): | Ø120*900 |
| Installation method: | Screw hoisting,Quick release chuck |
| Filter area (m²): | 0.81 |
| Handling air volume（m³/h）: | 150-300 |
| Quantitative filter material (g/m²): | 260 |
| Filtration efficiency（≥0.2-10μm）: | 99.9% |

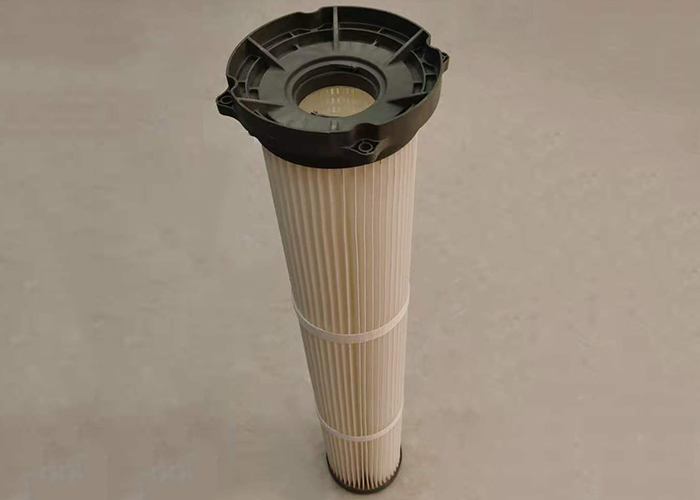

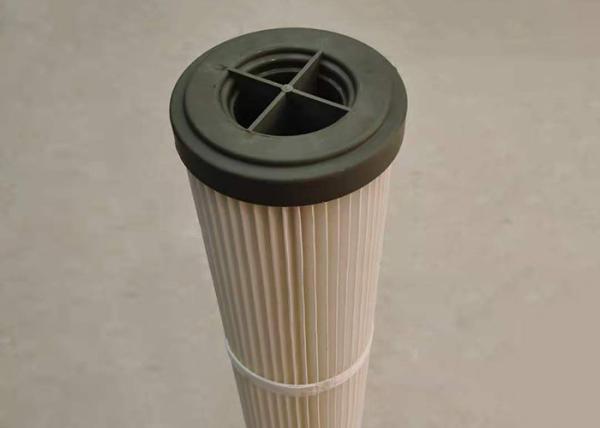

Oil Repellent, Moistureproof, Good Sealing Performance Filter Cartridge
Product Description:
High efficiency polyester air cartrdge filter
1.100% polyester filter media
2.Filter efficiency up to 99.99%
3.Integrated design. quick and easy installation,maintenance
4.Wide pleat depth
5.PTFE membrane,antistatic etc.
Product parameter:
| Product number | Specification size (mm) | Quantitative filter material (g/m²) | Filter area (m²) | Handling air volume | Filtration efficiency | Installation method |
| (m³/h) | (≥0.2-10μm) | |||||
| XY-3266 | 323*215*660 | 260 | 6.8 | 450-800 | 99.90% | Screw hoisting, |
| Quick release chuck | ||||||
| XY-32100 | 323*215*1000 | 260 | 12 | 700-1200 | 99.90% | |
| XY-120 | Ø120*900 | 260 | 0.81 | 150-300 | 99.90% | Flower board installation |
| Ø120*1000 | 260 | 0.9 | 180-320 | 99.90% | Flower board installation | |
| XY-160 | Ø160*2400 | 260 | 7.68 | 360-720 | 99.90% | Flower board installation |
| Ø160*3000 | 260 | 9.6 | 1140-2040 | 99.90% | Flower board installation | |
| XY-200 | Ø200*800 | 260 | 2.56 | 300-550 | 99.90% | Flower plate mouth hoisting |
| Ø200*1000 | 260 | 3.2 | 380-680 | 99.90% | Flower plate mouth hoisting | |
| Other standard specifications and various non-standard specifications can be customized | ||||||
| Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | ||||||
Features:
1.To maintain maximum filtering surface, pleats are held in place
with hot melt spiral beading inside and outside.
2.It is most important that the power industry fit their gas
turbine with the best air filtration systems & elements available
on the market.
Application:
Mainly used in the field of industrial filtration, such as various filtration processes in power, cement, steel, non-ferrous metals, mining, and chemical industries.
FAQ:
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q3: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
|
