4M Corrosion Resistance 2024 Seamless Aluminum Tubing

Categories Seamless Aluminum Tubing
Brand Name: HUANYU
Model Number: HYT2024T
Place of Origin: CHINA
MOQ: 2 METRIC TONS
Price: Negotiable
Payment Terms: T/T
Supply Ability: 45 Metric Tons Per Month
Delivery Time: 21 days
Packaging Details: Plywood Case
Product Name: 2024 Seamless Aluminum Tubing
Ultimate Tensile Strength: 186MPa
Tensile Yield Strength: 75.8 MPa
Hardness, Brinell: 47
Elongation at Break (Typical; 1/2 in. (12.7 mm) Diameter): 21 %
Melting Point: 502 - 638 Degrees C
Annealing Temperature: 413 Degrees C
Solution Temperature: 256 Degrees C
Length: 3,200mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4M Corrosion Resistance 2024 Seamless Aluminum Tubing

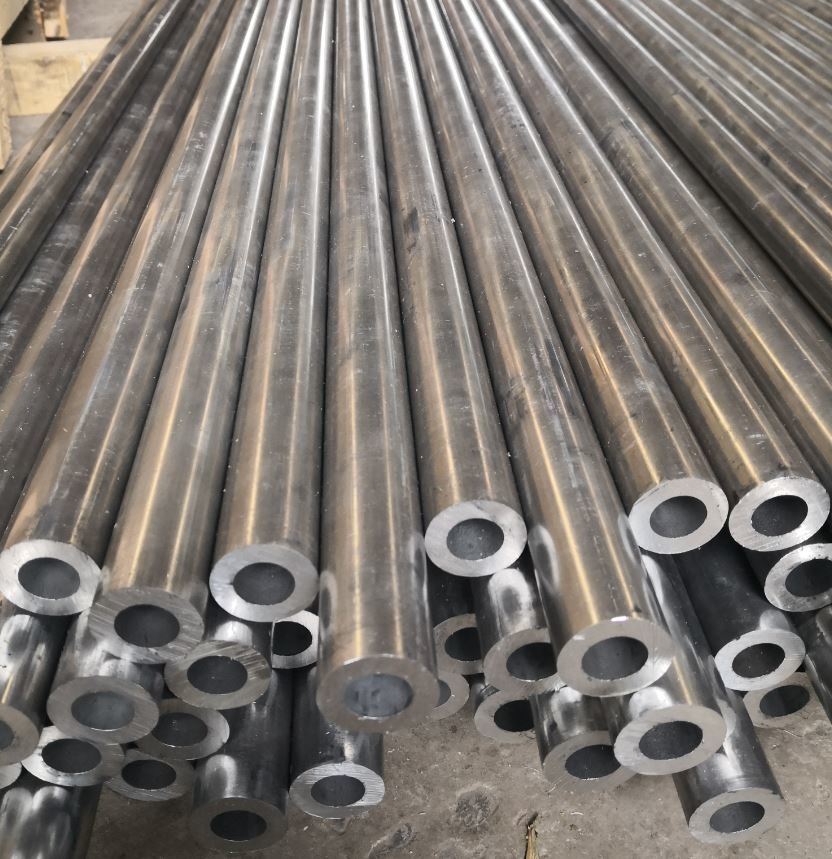

High Strength 4 Meters Long Corrosion Resistance 2024 Seamless Aluminum Tubing


2024 is a typical hard aluminum alloy in the aluminum-copper-magnesium series. Its composition is reasonable and the overall performance is better. Many countries produce this alloy, which is used in duralumin. The characteristics of the alloy are: high strength, a certain degree of heat resistance, and can be used as working parts below 150°C. At temperatures higher than 125°C, the strength of 2024 alloy is higher than that of 7075 alloy. The forming properties in the hot state, annealing and new quenching state are better, and the heat treatment strengthening effect is significant, but the heat treatment process is strict. The corrosion resistance is poor, but it can be protected by covering it with pure aluminum; it is easy to produce cracks, but it can also be riveted by special technology. It is widely used in aircraft structures, rivets, truck wheels, propeller components and various other structural parts.


Physical Properties

MetricEnglishComments
Density2.78 g/cc0.1 lb/in³AA; Typical

Mechanical Properties
Hardness, Brinell4747AA; Typical; 500 g load; 10 mm ball
Ultimate Tensile Strength186 MPa27000 psiAA; Typical
Tensile Yield Strength75.8 MPa11000 psiAA; Typical
Elongation at Break20 %20 %AA; Typical; 1/16 in. (1.6 mm) Thickness
Elongation at Break22 %22 %AA; Typical; 1/2 in. (12.7 mm) Diameter
Modulus of Elasticity73.1 GPa10600 ksiAA; Typical; Average of tension and compression. Compression modulus is about 2% greater than tensile modulus.
Ultimate Bearing Strength345 MPa50000 psiEdge distance/pin diameter = 2.0
Bearing Yield Strength131 MPa19000 psiEdge distance/pin diameter = 2.0
Poisson's Ratio0.330.33
Fatigue Strength89.6 MPa13000 psiAA; 500,000,000 cycles completely reversed stress; RR Moore machine/specimen
Machinability30 %30 %0-100 Scale of Aluminum Alloys
Shear Modulus28 GPa4060 ksi
Shear Strength124 MPa18000 psiAA; Typical

Electrical Properties
Electrical Resistivity3.49e-006 ohm-cm3.49e-006 ohm-cmAA; Typical at 68 Degrees F

Thermal Properties
CTE, linear 68 Degrees F23.2 µm/m- Degrees C12.9 µin/in- Degrees FAA; Typical; Average over 68-212 Degrees F range.
CTE, linear 250 Degrees C24.7 µm/m- Degrees C13.7 µin/in- Degrees FAverage over the range 20-300 Degrees C
Heat Capacity0.875 J/g- Degrees C0.209 BTU/lb- Degrees F
Thermal Conductivity193 W/m-K1340 BTU-in/hr-ft²- Degrees FAA; Typical at 77 Degrees F
Melting Point502 - 638 Degrees C935 - 1180 Degrees FAA; Typical range based on typical composition for wrought products 1/4 inch thickness or greater. Eutectic melting is not eliminated by homogenization.
Solidus502 Degrees C935 Degrees FAA; Typical
Liquidus638 Degrees C1180 Degrees FAA; Typical

Processing Properties
Annealing Temperature413 Degrees C775 Degrees F
Solution Temperature256 Degrees C493 Degrees F
