Categories | Crawler Bulldozer |
---|---|
MOQ: | 1 |
color: | yellow |
Condition: | New |
Machine Weight: | 17550kg |
Type: | Crawler bulldozer |
Brand: | NEW SKY |
Keywords: | Bulldozer |
Overall dimensions: | 5447×3297×3160mm |

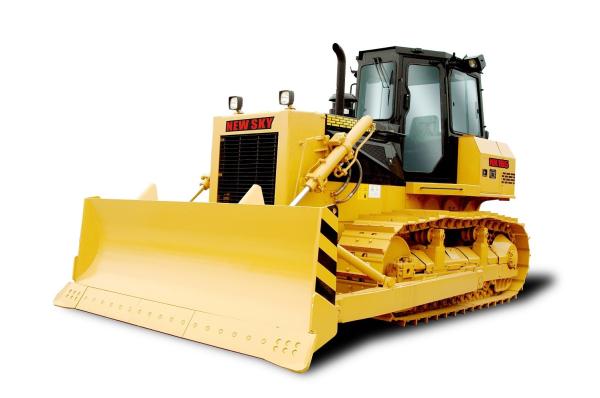

Bulldozer NK165 features:
1. Bulldozer is a kind of earth-moving machinery that can excavate,
transport and discharge rock and soil, and it has a wide range of
uses in open-pit mines.
2. For example, it is used for construction of dumping yard,
leveling of automobile dumping yard, accumulation of scattered ore
rock, leveling of work flats and construction sites, etc. It is not
only used for auxiliary work, but also for main mining work. For
example: stripping and mining of placer deposits, traction and
boosting of scrapers and rock ploughs, and cooperating with other
earth-moving machinery to reduce the height of stripping steps when
there is no transportation mining method.
Bulldozer NK165 Main specification
Operating weight | 17550kg |
Ground pressure | 67kpa |
Track gauge | 1880mm |
Gradient | 30°/25° |
Min. ground clearance | 352.5mm |
Dozing capacity | 5 m³ |
Blade width | 3297mm |
Max. Digging depth | 500mm |
Overall dimensions | 5447×3297×3160mm |
Bulldozer NK165 Engine and driving system
Engine model | Weichai WD10G178E25 |
Rated revolution(rpm) | 1850 |
Power(kw/hp) | 131KW/178HP |
Max.torque(N.m/rpm) | 830/1100 |
Torque converter | 3-element 1-stange 1-phase |
Transmission | Planetary,power shift with 4F&3R |
![]() |
