| Categories | Powder Milling Machine |
|---|---|
| Brand Name: | Brightsail |
| Model Number: | BSSF |
| Certification: | CE ISO |
| Place of Origin: | China |
| MOQ: | one set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 5-8 days |
| Packaging Details: | Wooden case or container |
| Production speed: | Rapid Mixing Granulator |
| Metering method: | volumetric method |
| work volume: | about 12-400L |
| Other name: | rapid mixer granulator |
| Advantage: | high-efficiency |
| Material: | SS304 |
| Stirrer speed (R.P.M): | 20-200 |
| Mixing power (KW): | 5.5-30 |
| Cutting knife speed(R.P.M): | 50-3000 |
| Company Info. |
| Jiangyin Brightsail Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Work volume about 12 to 400L High Speed Mixing Granulator
Description:Grinding And Mixing GranulatorGrinding And Mixing GranulatorGrinding And Mixing Granulator
This Grinding And Mixing Granulator machine is composed of machine body, layered pot, pot lid, stirring paddle, cutting knife, discharge port, feeding device, flying knife drive, stirring drive, cooling system, automatic control system and so on.

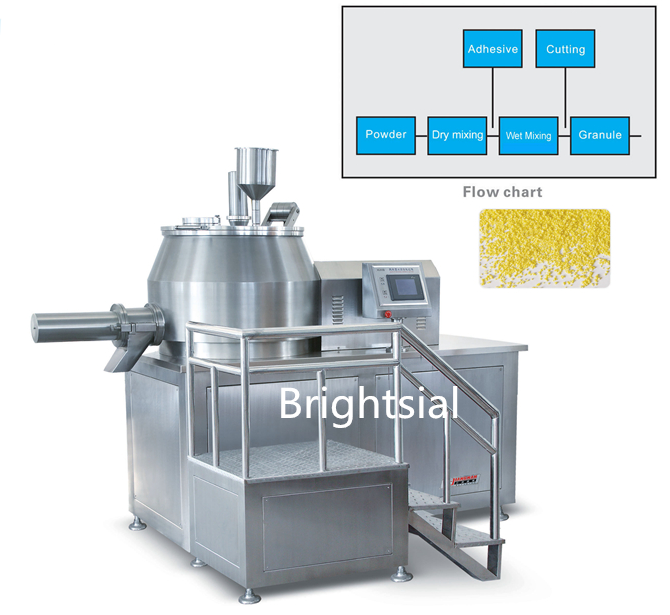

Principle:
1. The whole process consists of two programs including mixing and granulating.
2. Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In tahe meanwhile, all materials grow up the shapea of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last,while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3. These soft particles are formed not dependent on forced extrusion effects, more exactly; these small and uniform particles are mainly formed after continuous cutting under the similar-liquid state. In all, this machine can realize the mutual transformation between different materials.
high speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulator
Technical Data:
| Model/Specification | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
| Feeding amount (kg) The specific gravity of powder is 0.5g/cm³ | 6-18 | 12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Rotating speed of stirring paddle (r.p.m) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Stirring power (kw) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed (r.p.m) | 50-3000 | |||||
| Cutting power (kw) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Note:
1. The data is subject to change without notice .
2. The working volume is 50%-60% of the total volume, and the mixing and granulating effect of the machine is ideal .
3. Calculation formula of feeding amount: m=pv m: feeding amount p: powder specific gravity can be 0.5 v: working volume .
4. The above quotation is the standard sus304 price.
high speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulator

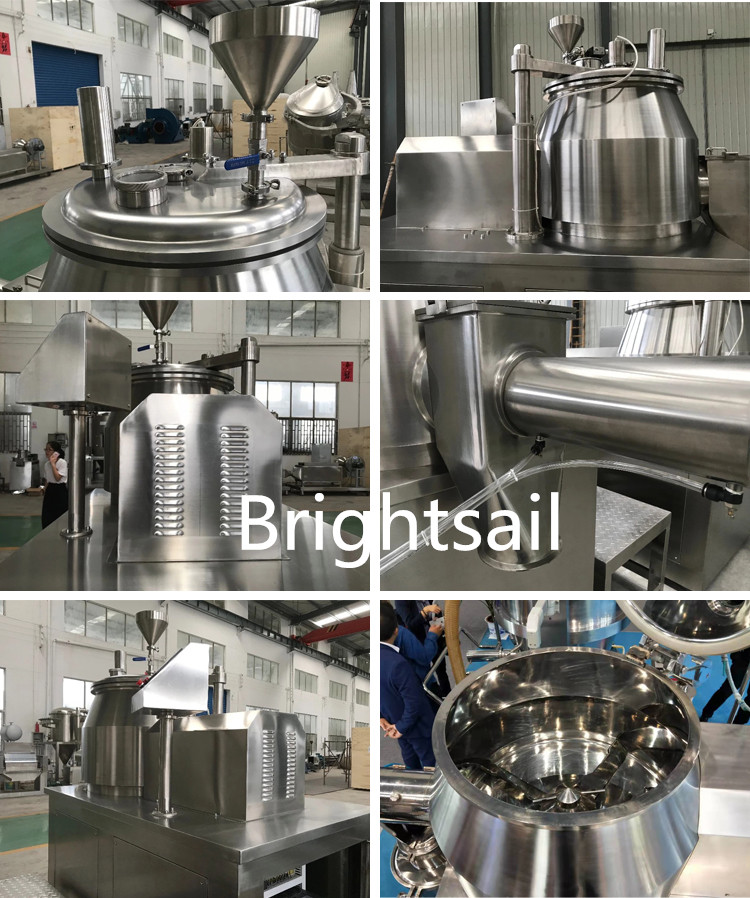

Detailed Images :
high speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulator
Features :Rapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing GranulatorRapid Mixing Granulator
1)It is the structure of horizontal cylinder (cone).
2) Full sealed driving shaft, to use water when cleaning.
3)Fluidization granulation, the finished granules are similar to
roundness with good liquidity.
4)Compared with traditional process, it can reduce 25% binder and
the dry time can be shortened.
5)Each batch of materials will be dry-mixed for 2 minutes and be
granulated for 1-4 minutes. Compared with traditional process, it
has improved by 4-5 times.
6)All the processes of dry-mixing & wet-mixing & granulating are
finished in a closed vessel. So that it has reduced the process and
also compiles with GMP standard.
7)Whole operation has the strict safety precautions.high speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulatorhigh speed mixing granulator
