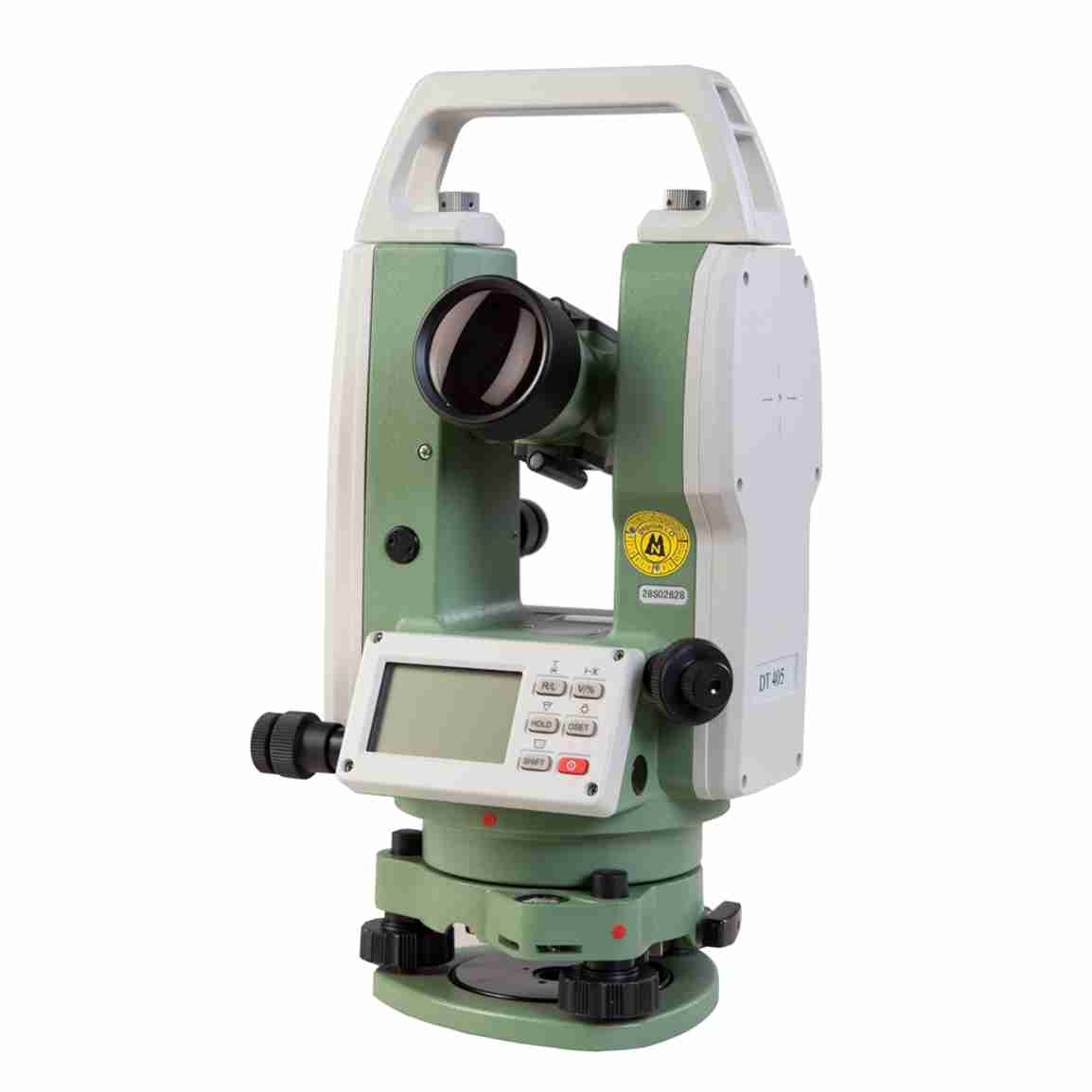

DT402 Auto Surveying Instrument Electronic Digital Theodolite

High Standard Quality Auto Collimating Digital Theodolite DT402-Z FOIF Surveying Instrument

Model: DT402-Z

Introduction:

DT402-Z is equipped with an integrated collimation device, directional orientation error of auto-collimator part is less than 5’’.

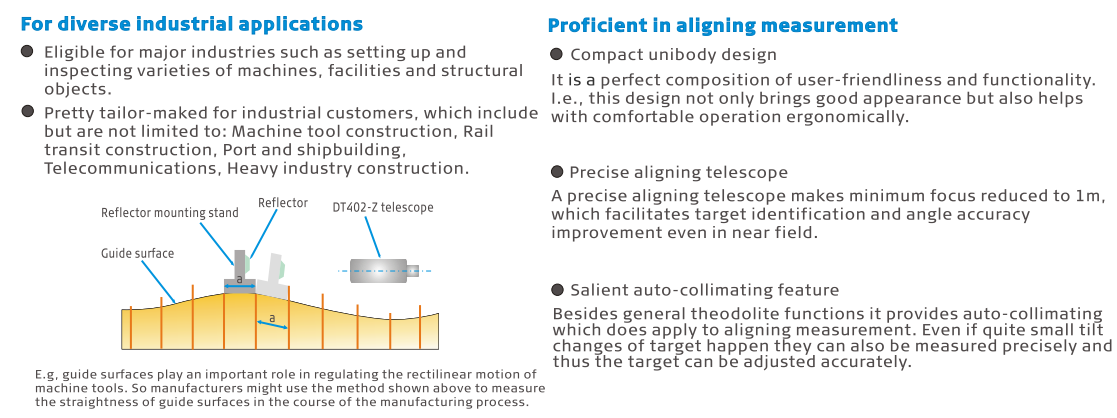

In the field of optical tooling this enables reference lines to be set up to detect small changes of inclination in the object or to evaluate differences in the inclination of different parts of the object.

DT402-Z effective working distance for indoor collimation reaches to 30m, directional orientation error of auto-collimator part is less than 5″.

Pretty tailor-maked for industrial customers, which include but are not limited to: Machine tool construction, Rail transit construction, Port and shipbuilding, Telecommunications, Heavy industry construction, etc.

Lower power consumption, longer working time with one battery

Highlights:

1. Electronic Theodolite

2. Magnification: 30x

3. LCD on both sides

4. Compensator

5. RS-232C

6. Laser plummet

Available Models:

1. DT402, 2” Precision with Optical Plummet

2. DT402L, 2” Precision with Laser Plummet

3. DT405, 5” Precision with Optical Plummet

4. DT405L, 5” Precision with Laser Plummet

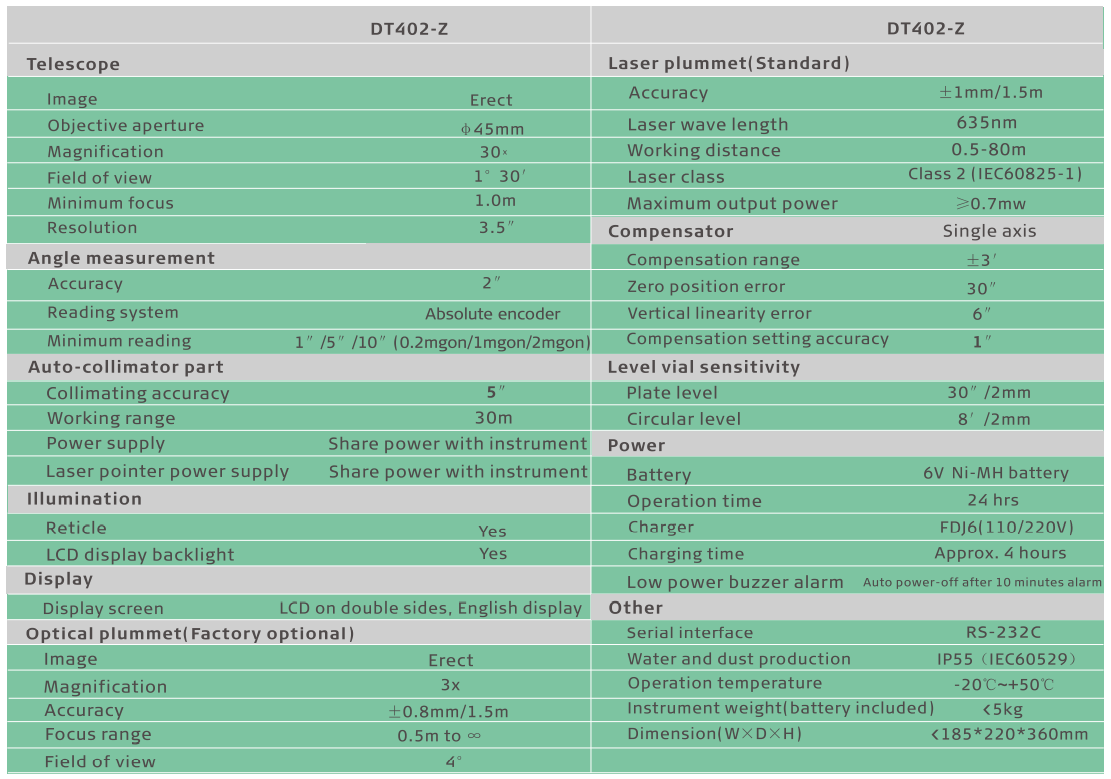

Technical Data

Leosurvey Instrument Co.,Ltd is a professional surveying accessories supplier in China. Items we supply covers:

1. Prisms (reflector prism, prism set, 360 degree prism, mini prism)

2. Prism Pole, Bipods and Tripods

3. Levelling Staff (Invar, Manganese, Aluminum)

4. Tripods (Aluminum, Wooden, Fiberglass)

5. Tribrach and Adaptors

6. Battery, cable and Chargers of different brands

7. GNSS pole and accessories

Our mission is to supply high quality and excellent service for our customers and partners. Meanwhile, we can custom-make products for our clients with different requirements. We are looking for reliable distributors all around the world, welcome to contact us for more!
