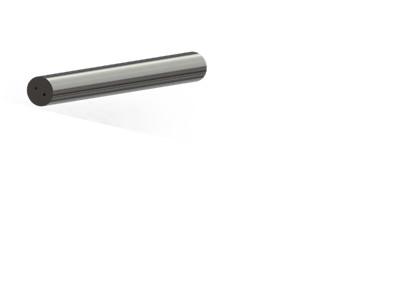

330mm Length Cemented Carbide Rod , Helix 40 Degree Grind Carbide Round Stock

Categories	Cemented Carbide Rod
Brand Name:	PM
MOQ:	10
Payment Terms:	T/T
Supply Ability:	1000000pcs/month
Delivery Time:	1-25 work days
Diameter:	6-20mm
length:	330mm
Co%:	9%
HRV:	91.2
Hardness HV30:	1520
Density:	14.4
Material:	Tungsten Carbide

Contact Now

Add to Cart

Company Info.

Hunan Boyun-Dongfang Powder Metallurgy Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

330mm Length Cemented Carbide Rod , Helix 40 Degree Grind Carbide Round Stock

Tungsten Carbide helix 40° Grind Rods Length 330mm for Drilling tools

Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

100% raw material;
Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 6-20mm, length 330mm;

l with 30° helix holes rods;

Grade Information

Grade	Co%	Grain Size of WC	Hardness	Hardness	Density	Flexural Strength	Fracture Toughness	Elastic Mod- ulus	Coefficient of Thermal Expansion
			HRA	HV₃₀	g/cm³	MPa	GPa	_MNm-3/2	0-6/℃

ST15D	9	Sub-Micron	91.2	1520	14.4	3500	13	500	5.3

D(mm)	Tolance	L(mm)	Tolance	TK(mm)	公差	d(mm)	Tolance	“P (±0.5°)”	amax(mm)
6.0	h5	330	+0/+5	1.40	+0/-0.40	0.40	±0.15	22.46 -0.39/+0.40	0.15
6.0	h5	330	+0/+5	2.20	+0/-0.40	0.50	±0.15	22.46 -0.39/+0.40	0.15
7.0	h5	330	+0/+5	2.40	+0/-0.40	0.70	±0.15	26.21 -0.46/+0.47	0.15
8.0	h5	330	+0/+5	1.70	+0/-0.20	0.40	±0.10	29.95 -0.53/+0.54	0.15
8.0	h5	330	+0/+5	2.70	+0/-0.60	0.65	±0.15	29.95 -0.53/+0.54	0.15
9.0	h5	330	+0/+5	3.20	+0/-0.60	0.75	±0.15	33.70 -0.59/+0.60	0.20
10.0	h5	330	+0/+5	2.10	+0/-0.20	0.50	±0.10	37.44 -0.66/+0.67	0.20
10.0	h5	330	+0/+5	3.50	+0/-0.80	0.80	±0.15	37.44 -0.66/+0.67	0.20
11.0	h5	330	+0/+5	3.70	+0/-0.80	0.80	±0.15	41.18 -0.72/+0.74	0.28
12.0	h5	330	+0/+5	2.50	+0/-0.40	0.60	±0.10	44.93 -0.79/+0.80	0.30
12.0	h5	330	+0/+5	4.20	+0/-0.80	0.90	±0.20	44.93 -0.79/+0.80	0.30
13.0	h5	330	+0/+5	4.40	+0/-0.80	0.90	±0.15	48.67 -0.85/+0.87	0.34
14.0	h5	330	+0/+5	2.90	+0/-0.40	0.70	±0.10	52.42 -0.92/+0.94	0.37
14.0	h5	330	+0/+5	4.70	+0/-0.80	1.00	±0.20	52.42 -0.92/+0.94	0.37
15.0	h5	330	+0/+5	5.10	+0/-0.80	1.10	±0.20	56.16 -0.99/+1.01	0.40
16.0	h5	330	+0/+5	3.30	+0/-0.40	0.80	±0.10	59.90 -1.05/+1.07	0.40
16.0	h5	330	+0/+5	5.50	+0/-0.80	1.20	±0.20	59.90 -1.05/+1.07	0.40
18.0	h5	330	+0/+5	3.70	+0/-0.40	0.90	±0.15	67.39 -1.18/+1.21	0.50
18.0	h5	330	+0/+5	6.30	+0/-0.80	1.40	±0.25	67.39 -1.18/+1.21	0.50
20.0	h5	330	+0/+5	4.10	+0/-0.40	1.00	±0.15	74.88 -1.31/+1.34	0.50
20.0	h5	330	+0/+5	7.10	+0/-1.00	1.50	±0.25	74.88 -1.31/+1.34	0.50
