| Categories | Wedge Wire False Bottom |
|---|---|
| Brand Name: | STD Filter |
| Model Number: | STD WWFB-006 |
| Certification: | CE，ISO9001 |
| Place of Origin: | Hebei,CN |
| MOQ: | 1 |
| Price: | $50-500 /pcs |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 pcs per day, |
| Delivery Time: | 7 days or customized time |
| Packaging Details: | plastic in wooden package or standard export package |
| Material: | Stainless Steel316,304,AISI 304,316. SUS 304 or 316 |
| shape: | square or round or Depends what you needs. |
| Length: | 2 meters or as required |
| Diameter: | 1 meter or customized |
| Width: | 1 meter or customized |
| Application: | Brewery distilling |
| Type: | Filter |
| Usage: | liquid and solid filtration |
| Filter rating: | 99% |
| Technique: | Welding |
| Feature: | Corrosion Resistance |
| Slot size: | 0.1-6.0 mm |
Safety SS 0.1-0.6mm Slot Segmented Wedge Wire Lauter Tun False Bottom Screen For Beverage
Introduction

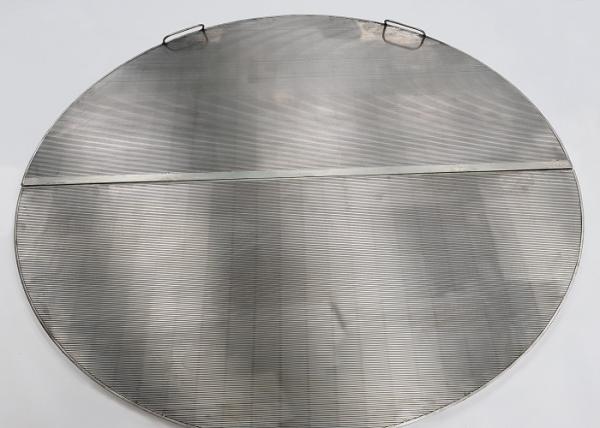

Lauter Tun False Bottom also is called Lauter Tun wedge wire screen panel for industry.
The False Bottom have smooth surface and small slot sizes, which
can ensure the accurate efficiency. Additional, the stainless steel
material is corrosion, rust, chemical resistance, which can make
the false bottom panels durable and long lifespan.
It is manufactured with stainless steel surface profiles and
support profiles. The surface profile are welded onto support
profiles at each intersection in a 90 degree.

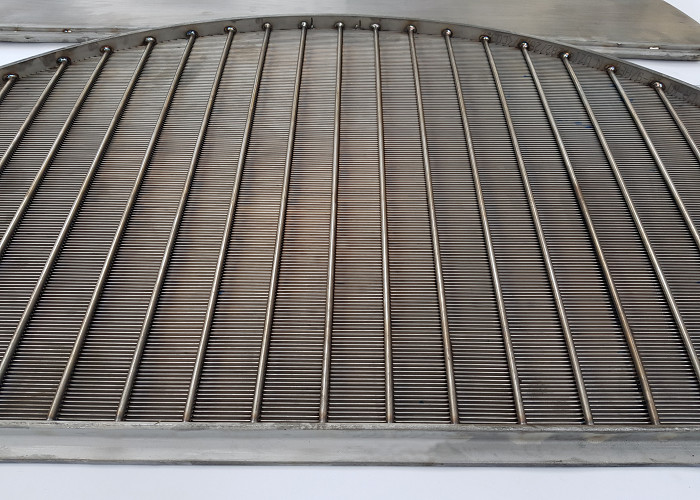

SS false bottom lauter tun screen panel is composed of surface
profile and support profile.
The surface profile is commonly triangle wire, and the support
profile can be triangle wire, wedge wire, round bar and rectangular
bar. They can suit different machines and can be used in various
applications
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings |
The advantage of wedge wire false bottom screen to others filter:
1.Wedge wire offers a wide opened area to forbid to block.
2.High precision to make the brewing and beverage better
3.Less cost for maintance and operation
4.More efficient
5.customized,even segmented is allowed.
6.Resistance to corrosion and abrasion.
The most common wire
The most common support rod
The details:
The Package And the delivery
|
