36mm Single Drum Electric Hydraulic Anchor Winch | Ship Anchor Handling Equipment

36mm Single Drum Electric Hydraulic Anchor Winch | Ship Anchor Handling Equipment

Product Overview

Single drum electric hydraulic anchor winch is designed for anchor handling operations on small and medium vessels.

The system uses electric motor driven hydraulic power to control anchor lifting and releasing with stable performance.

It combines steel wire rope with short anchor chain, eliminating the need for a chain locker and optimizing deck space.

Quick Specifications

• Working Load: 8.3-97.9 kN

• Supporting Load: 51-570 kN

• Working Speed: ≥9 m/min

• Mooring Pull: 8-60 kN

• Mooring Speed: ≥12 m/min

• Drum Capacity: 100-200 m

• Wire Rope Diameter: 12-48 mm

• Drive Type: Electric hydraulic

• Drum Type: Single drum

• Control: Local and Remote

• Power Supply: 380V / 415V / 440V

Main Technical Parameters

Selection Guide

Step 1 - Select Rope Diameter: 12-48 mm | Step 2 - Match Working Load: 8-98 kN | Step 3 - Confirm Supporting Load | Step 4 - Select Speed: ≥9 m/min | Step 5 - Drive: Electric Hydraulic | Step 6 - Control: Local / Remote | Step 7 - Installation: Deck mounted

Structure & Components

Structure & Components: Hydraulic motor | Gearbox | Single drum | Wire rope system | Short chain link | Brake system | Hydraulic power unit | Control panel

Custom Attributes

Working Load: 8-98 kN | Rope Diameter: 12-48 mm | Speed: ≥9 m/min | Drive Type: Electric hydraulic | Drum Type: Single drum | Control: Local / Remote

Custom Configuration & Inquiry Guide

Working Load | Rope Diameter | Drum Capacity | Mooring Pull | Motor Power | Control Type | Installation Requirement

How It Works

Electric motor drives the hydraulic power unit, which powers the hydraulic motor to rotate the drum.

The steel wire rope and short chain link lift or release the anchor, ensuring safe and controlled anchor handling.

Applications

Applications: Small vessels | Fishing boats | Work boats | Harbor vessels | Anchor handling operations

Certifications & Advantages

Certifications: CCS | NK | BV | ABS | DNV | LR | KR | RINA | IRS | RS

Advantages: Compact structure | No chain locker required | Stable hydraulic drive | Easy installation | Space saving design

Drawing & Photos

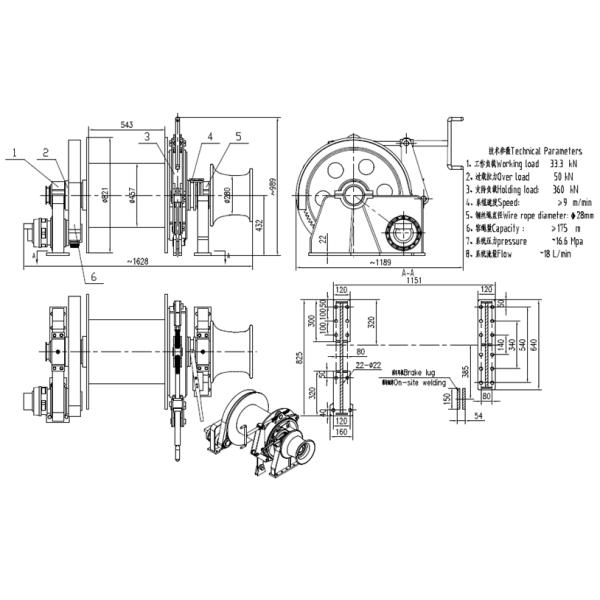

• General arrangement drawing

• Anchor winch structure drawing

• Hydraulic system diagram

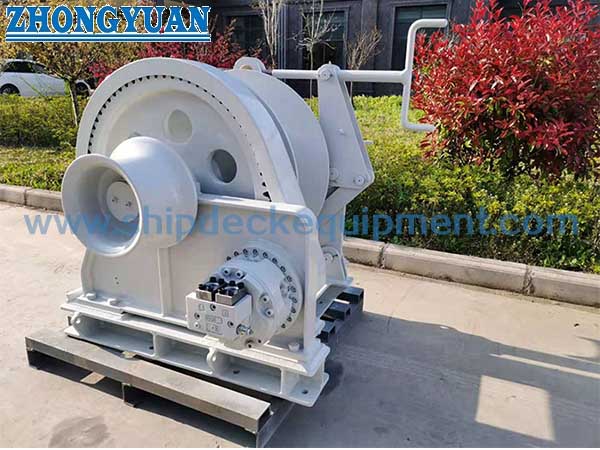

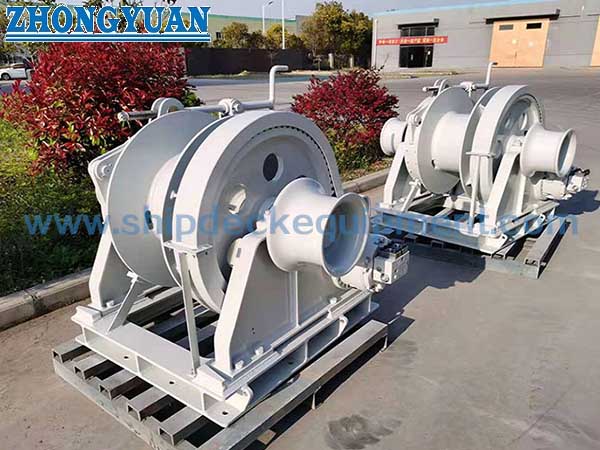

• Product photos

Ordering Information

• MOQ: 1 Unit

• Delivery Time: Based on project

• Payment: T/T, L/C

FAQ

Q1: Does it require chain locker?

A: No, rope and short chain are stored on drum.

Q2: Is it suitable for small vessels?

A: Yes, ideal for small and medium ships.

Q3: Can it be customized?

A: Yes, full customization available.
