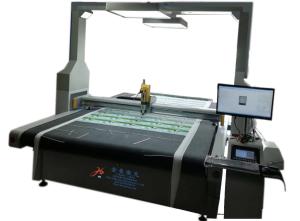

JHX-180160S knife cutting machine for customization sportswear, yoga, swimwear, cotton printing products cutting
This machine is a perfect combination of high quality imported components and the most advanced vision system, it is stable, high efficient, and had high precision. It perfectly meets the high speed cutting of any flexible materials, such as textile materials, leather, packaging, composite materials, etc. Applied in the industries of customization sportswear, yoga, swimwear, cotton printing products, etc.
Technical Parameters
| Model | JHX-180160S |
| Controlling software | Jinhao researched and developed, be free upgraded in the future |
| Working table | Partition vacuum adsorption working table |
| Operatiing performance | The camera automatically find the contours, the computer data intelligently recognize and cut quickly |
| Applicable materials | Sportswear, yoga wear, digital printing fabric, printed textile materials, etc. |
| Positioning device | Automatic positioning cross-red light positioning |
| Material fixing mode | Vacuum adsorption |
| Transmission interface | Gigabit Ethernet, high-speed USB |
| Buffer capacity | 4GB |
| Power voltage | AC220V±10%,50-60Hz |
| Suction pump voltage | AC380V±10%, 50Hz/60Hz,7.5KW-9.5KW |
| Vision camera | 24 million pixel high-precision edge-finding Japanese Canon camera |
| Optional device | Automatic feeder |
| Cutting area | 1850*1600mm |
| Machine dimensions | 2600mmX2380mmX2400mm(height) |
| Transmission system | High speed servo motor, rack and pinion, dual drive |
| Cutting depth control | Simple adjustable |
| Cutting speed | 1-1500mm/sec |
| Moving control system | Jinhao intelligent vision control system |
| Accessories | Air compressor, suction pipe, etc. |
| Image format | PLT,DXF |
| Safety protection device | Infrared and photoelectric sensor |
| Control | Multi-language microcomputer multi-function touch LCD display |
| Cutting tool | Round cold knife cutting head (optional other tools) with pen mark |
|
