Name: FEM 2M Box Type L Leg 30 Ton Gantry Crane With Winch Trolley Hoist
Brand: Magicart
Price: 1 USD

Home > Cranes >

FEM 2M Box Type L Leg 30 Ton Gantry Crane With Winch Trolley Hoist

Categories	Rail Gantry Crane
Brand Name:	Magicart
Model Number:	L type
Certification:	CE, ISO, SGS, GOST, BV
Place of Origin:	Henan, China
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000 sets per year
Delivery Time:	According to customer needs
Packaging Details:	High quality plywood crate and plastic woven cloth
Capacity:	5-50t, customized
Span:	8-35-m, customized
Lifting Height:	6-20m, customized
Class:	A3~A8
Girder type:	Box or truss girder
Color:	Customer Requirements
Wheel Pressure:	Cart 185KN/Handcart 300KN
Lifting speed:	5.9-9.2m/min or according to customers' demand
Widely used in:	Workshop, warehouse, store yard, etc.
After-sales service provided:	Engineers available to service machinery overseas

Contact Now

Add to Cart

Company Info.

Xinxiang Magicart Cranes Co., LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

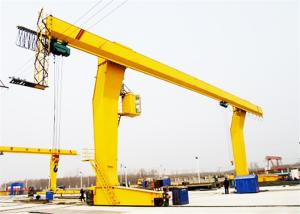

FEM 2M Box Type L Leg 30 Ton Gantry Crane With Winch Trolley Hoist

Box Type L Leg Model 30 Ton Single Beam Gantry Crane With Winch Trolley Hoist

Product Description

1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.

2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.

3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and inter phone which can be furnished as required by users.

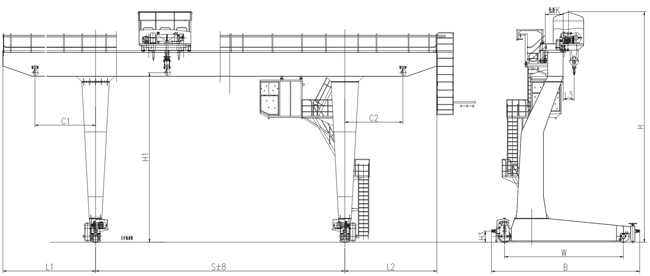

Drawing and Specification

Lifting Weight(t)	3	5	10	16	20
Span(m)	12/16/20/24	12/16/20/24/30	12/16/20/24/30	12/16/20/24/30	12/16/20/24/30
Lifting Height(m)	6/9	6/9	6/9	6/9	6/9
Working Grade	A5	A5	A5	A5	A5
Steel Track Recommended	P24/P38	P24/P38	P38/P43	P38/P43	P43/P50
Power Supply	3PH, 380V, 50HZ	3PH, 380V, 50HZ	3PH, 380V, 50HZ	3PH, 380V, 50HZ	3PH, 380V, 50HZ

Unique Feature

High reliability, safety, free maintenance rate;
Work duty: FEM2M, M5
Protection class: IP55
Insulation class: F
Continuing rate: 60% ( for the high class motor)
Cooling rate: 30% than normal crane
Over temperature protection: 170℃
Compact design, small size, low dead weight, low headroom
Low noise
Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure.
Power-saved. The total motor power is much lower than normal design.

Why Choose Us ?

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, low voltage protective device.

Factory direct price,much than trade company.

2 year warranty period,if any problem we send new parts or hoist for free by express.

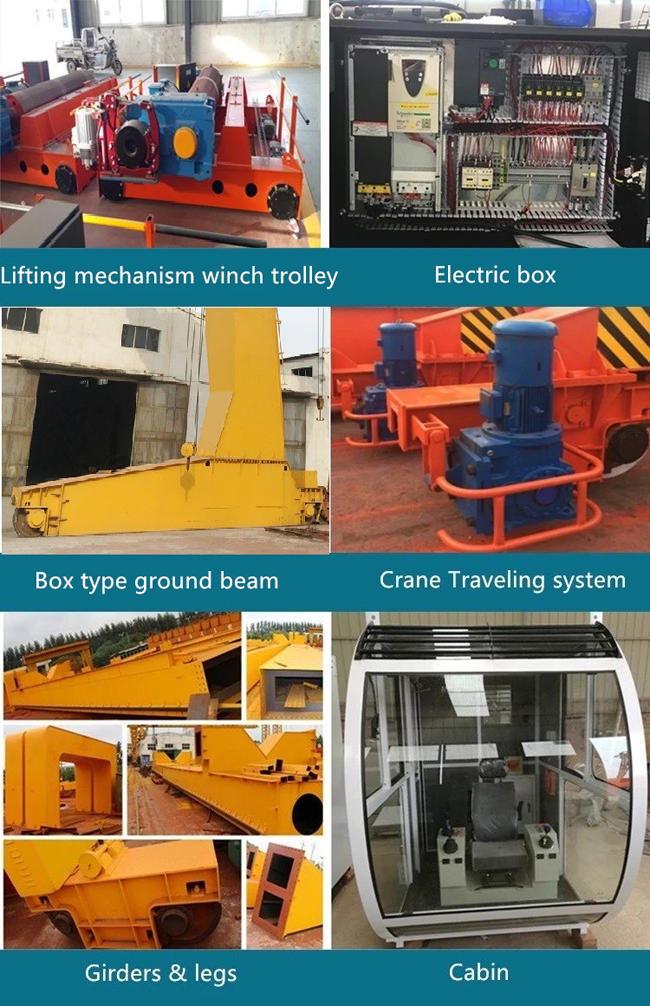

Component Unit

Production Workshop

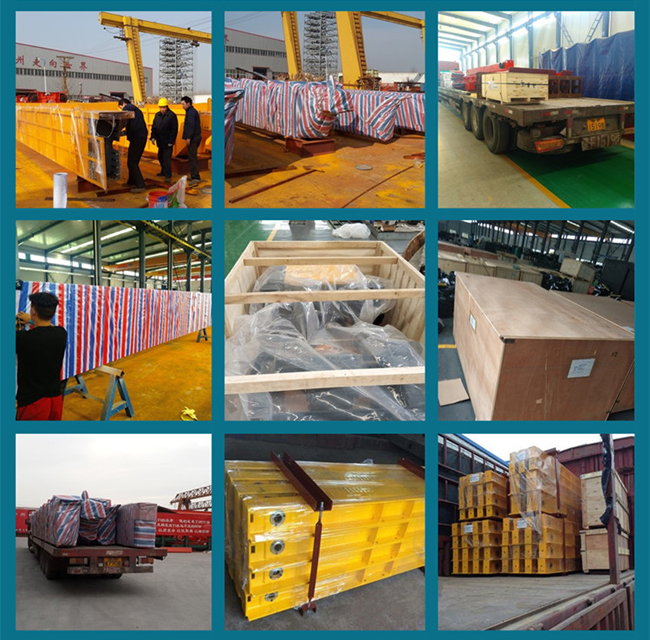

Package and Delivery

Installation and Commissioning

Product Certificate

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?
A: 12 months from cranes accepted;

5. Q: Do you have engineer oversea installation service?
A: Yes; We have;

6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
