Laser Tube Cutting Machine Pneumatic Chuck High Speed Automatic

Categories Laser Rotary Chuck
Brand Name: Lingman
Model Number: G400C-170
Place of Origin: Changzhou, Jiangsu, China
MOQ: 1 set
Price: USD 3800-4600/set
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Delivery Time: 15-20 work days
Packaging Details: Wood carton
Product name: Laser Chuck
Claw stroke: 165mm
Maximum clamping force: 2KN
Allowable pressure: 0.5-0.9MPa
Limit speed: 130r/min
Clamping range: 0-170mm
Rotational inertia: 6.1kg.㎡
Rotating part weight: 140kg
Whole unit weight: 240kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

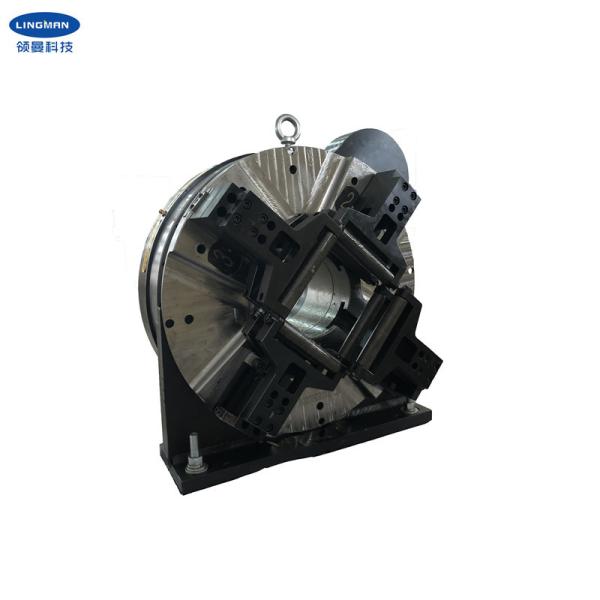

Laser Tube Cutting Machine Pneumatic Chuck High Speed Automatic

Automatic Pneumatic Chuck With High Speed For Laser Tube Cutting Machine

1. Descripition


Our laser chuck is mainly designed for laser tube cutting machine. Laser chuck is used for clamping and feeding tubes when cutting tube. It can clamp not only round tubes, but also rectangular tube, L-shap tube, H-shape tube and so on.

Our chuck is gear and rack structure the compared with other chucks, the bearing is much bigger than others'. The its thickness is also thinner than others', so it has lower noise when rotating. The base bracket is integrated with motor base, and it has good ability of dustproof. It also cause large bearing capacity and good stability when rotating.


Our chuck realize quick clamping and loosening by rotating air intake from the side, disconnet the air source before working.

This type of chuck is widely used in special-purpose laser tube cutting machine and other pipe processing machine tool sysytem.


2. Performance Parameters


  • Model number
G400C-170
  • Claw stroke
165mm
  • Maximunm clamping force
2.45KN
  • Allowable pressure
0.1-0.9MPa
  • Limit speed
150r/min
  • Clamping range
0-170mm
  • Central height
280mm
  • Rotational inertia
6.1Kg.m2
  • Rotating part weight
140kg
  • Whole unit weight
240kg

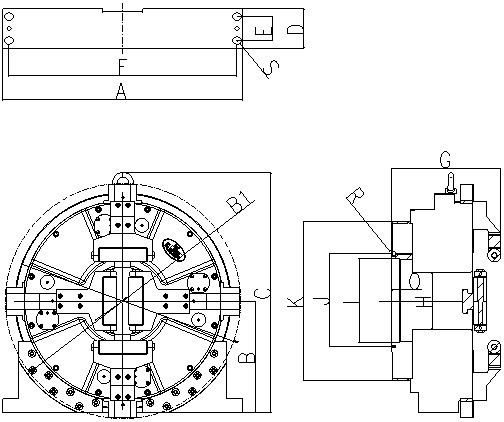

3. Dimensions



SpecificationsABB1CDEFGHIRS
G400C-170600280590602100605702731702358-M818X21


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws


5. Production Line

6. Our Service


a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.
