Big Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge

Big yield automatic produce disc separator for vegetable oil refining

Separation and refining technology for edible oil

Vegetable seeds contain a lot of oil, such as soybeans, sunflowers, peanuts, etc. are common oil crops. Most of the world’s production processes are hot pressing. Oilseeds are first squeezed in a screw press. The pressed oil contains a lot of solid components. In order to initially clarify the pressed oil, it is first separated by a decanter centrifuge. In order to meet the edible standard, the vegetable oil needs to be degummed and desoaped. After the reaction, the colloid and soap are separated by a 3-phase disc separator to obtain high-quality, high-purity oil.

Product description

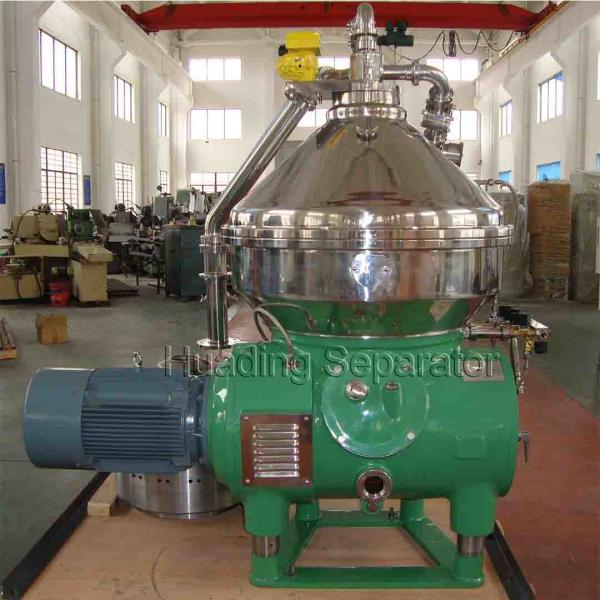

Huading DHZYS series disc separator is designed for edible oil degumming, deacidification and washing process. The machine adopts one inlet pipe, two outlet pipes and one solid outlet discharge port. After the oil reaction, the reacted oil is fed into the separator and rotating in the separator bowl, the solid imprities, the soap and the pure oil form a two-layer separation interface. The solid is discharged through the discharge port in the middle of the separator, the soap and the oil are discharged through the outlet pipes on th upper part of the disc speparator. The whole separation process is continuous.

Application

-sunflower oil

-soybean oil

-peanut oil

-corn oil

-coconut oil

-rice bran oil

-sesame oil

-rapeseed oil

-cottonseed oil

-linseed oil

......

Common models

Main parameters

Separation effect

Huading Separator, full name:Yixing Huading Machinery Co.,Ltd since 1954,is one of the market leaders in the field of centrifugal separation technology.

The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company's equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production.

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.

Huading Separators's organization works closely with customers to help them stay ahead in their business line.
