| Categories | Aluminum Honeycomb Panel |
|---|---|
| Place of Origin: | Shanghai |
| Brand Name: | Alumetal |
| Model Number: | ALUMETAL AHP |
| Packaging Details: | Packing: Packing with plywood pallets |
| MOQ: | 500 |
| Price: | To be negotiated |
| Warranty: | More than 5 years |
| After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE |
| Size: | 4ft x 8ft or custom |
| Project Solution Capability: | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others |
| Application: | Outdoor |
| Design Style: | Contemporary |
| Usage: | Outdoor |
| Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
| Surface Treatment: | Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated |
| Product name: | Aluminum Honeycomb Panel |
| Panel Thickness: | 4mm-500mm |
| Width: | Max 2200mm |
| Length: | Max 10000mm |
| Core: | Aluminum Honeycomb Core |
| Surface: | Flat/Embossed |
| Color: | Customer's Requirements |
| Fire resistance: | A2 Grade |
| Compress Flatwise Stress: | 1.05 MPa - 20 MPa |
| Company Info. |
| Shanghai Alumetal Decorative Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

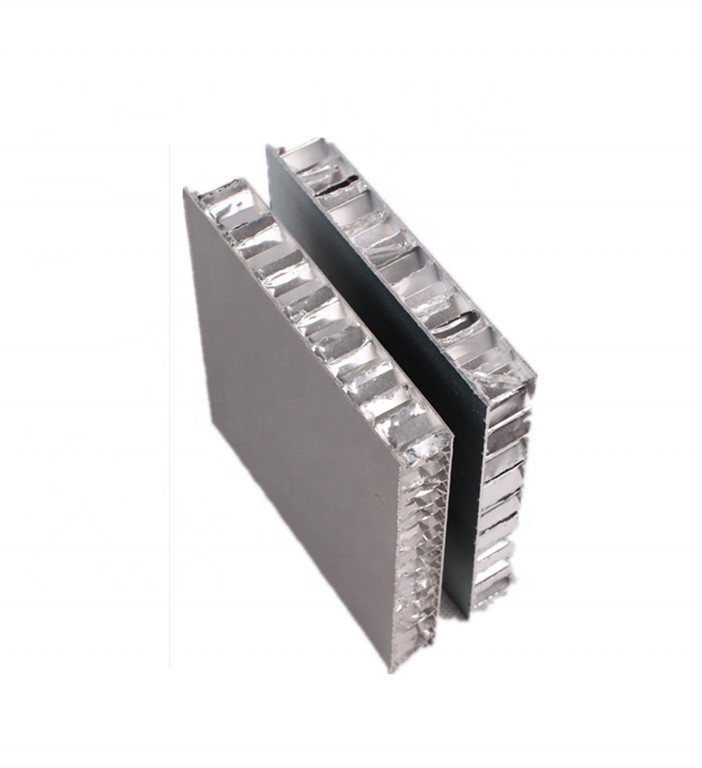

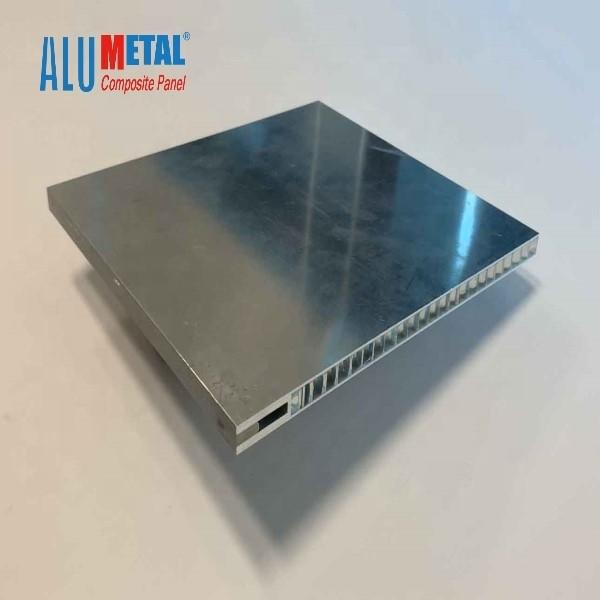

Outdoor Aluminum Honeycomb Sandwich Panels For Exterior Cladding
Alumetal aluminum honeycomb panels have a high strength-to-weight ratio, are easy to process and corrosion resistant, and have good thermal insulation. They can be used to form 3-D shapes. These honeycomb panels are based on Kevlar and are made by injecting heat-resistant phenolic resin into para-aramid paper.
Aluminum honeycomb panel is a honeycomb sandwich panel with honeycomb structure as the core. It is inspired by the natural hexagonal honeycomb. The aluminum honeycomb panel produced in this way becomes a new energy-saving, environmentally friendly and healthy material.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm),
1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we
have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business
cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send
some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm,
5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
|
