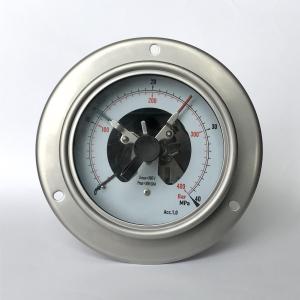

304SS Lower Back Mount Pressure Gauge 40 MPa 100mm Panel Mount

100mm 40 MPa Lower Back Connection Flange Panel Mount All Stainless Steel Electric Contact Pressure Gauge

Description

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms.
Electrical gauges give electrical output which can be used to turn a motor on/off & similar applications. Single or double contacts are standard with triple contacts available on special request.
Make or break settings can be achieved in a variety of permutations with rising or falling pressure / temperatures.

Applications

Control and regulation of industrial processes

Monitoring of plants and switching of circuits

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts

​​

Special features

High reliability and long service life

Up to 4 switch contacts per instrument

Instruments with electronic contacts for PLC applications

Contact gauges comply with DIN 16085

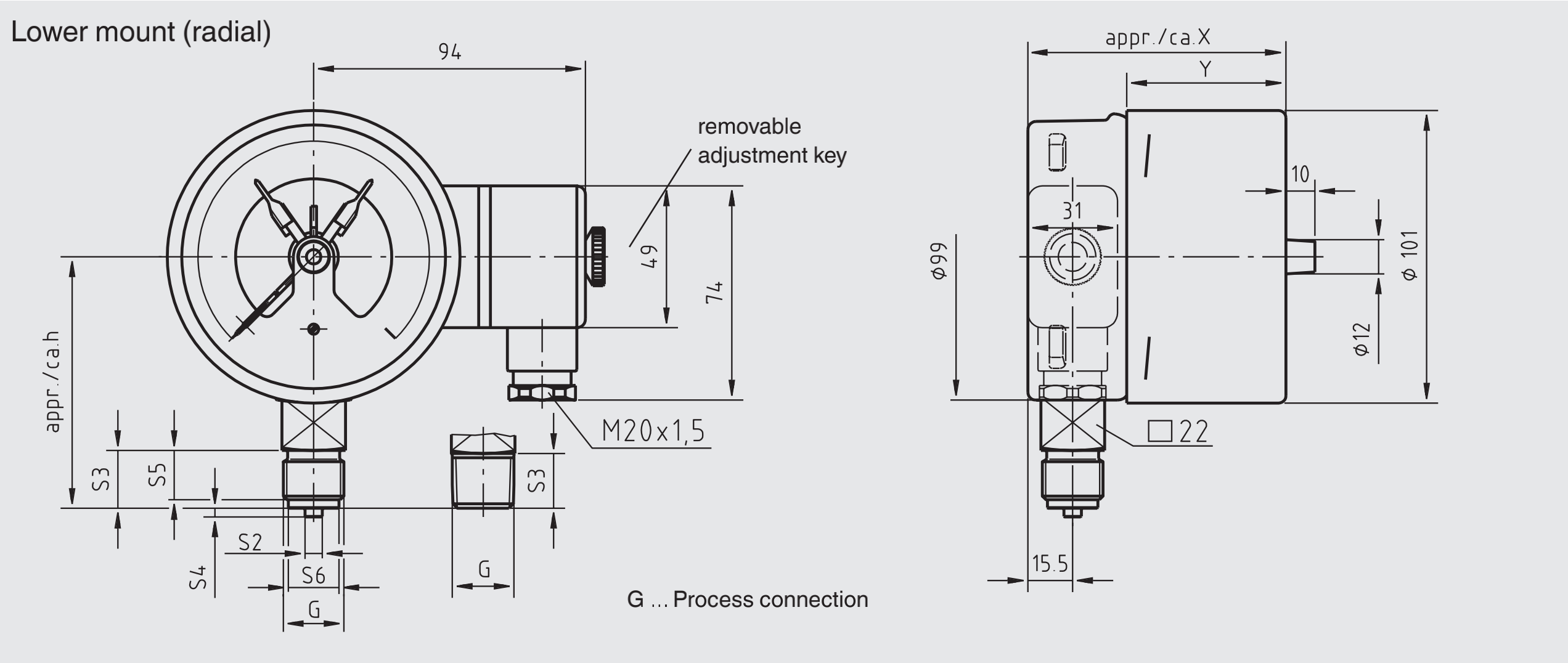

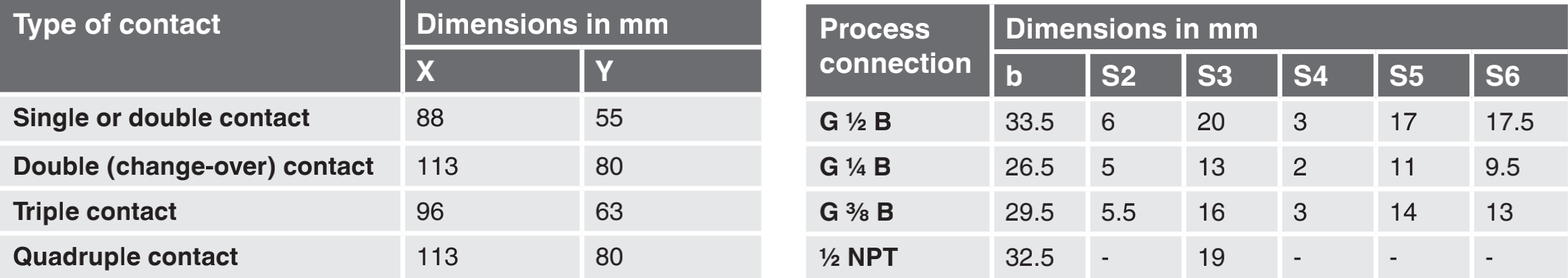

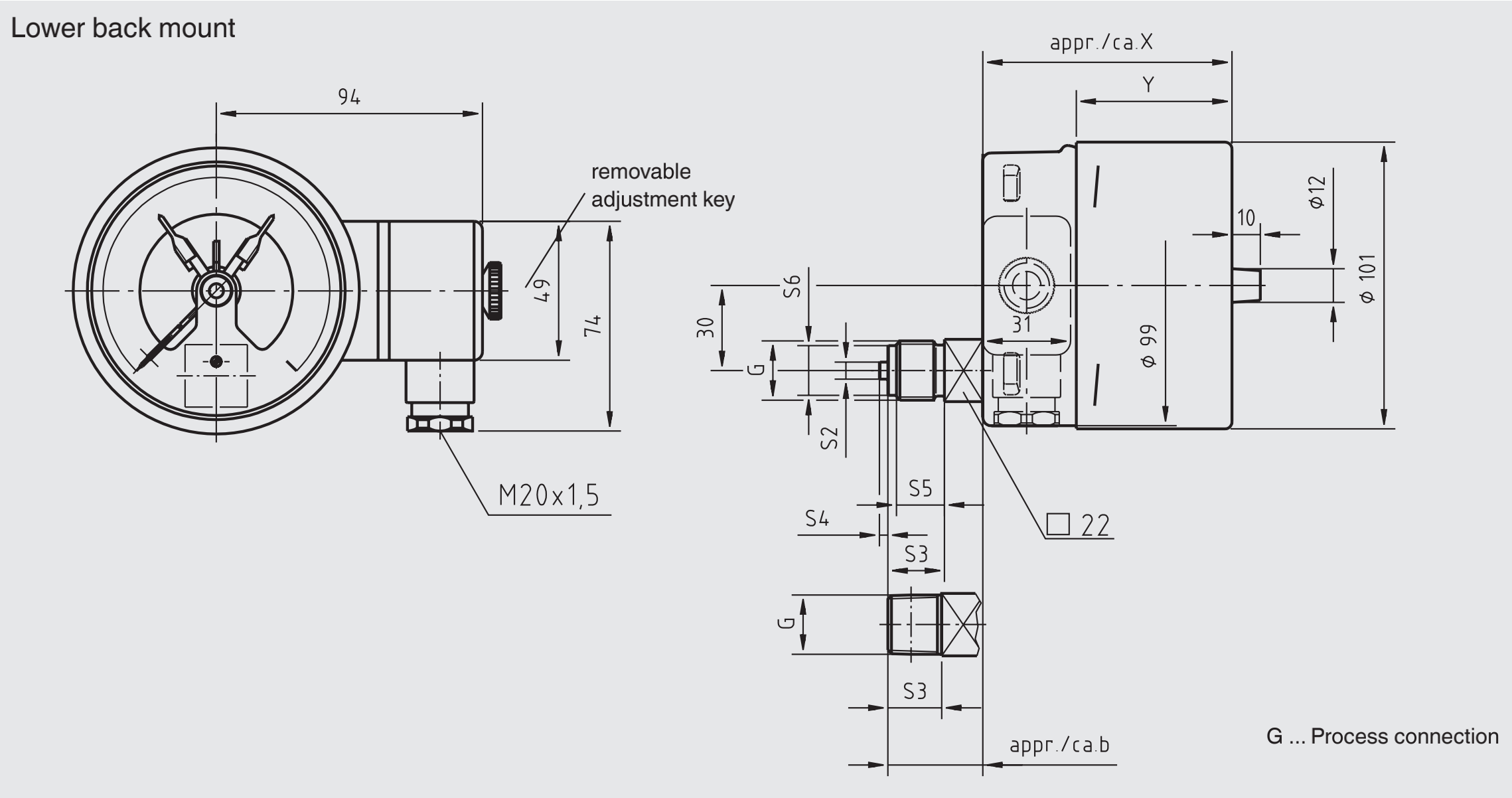

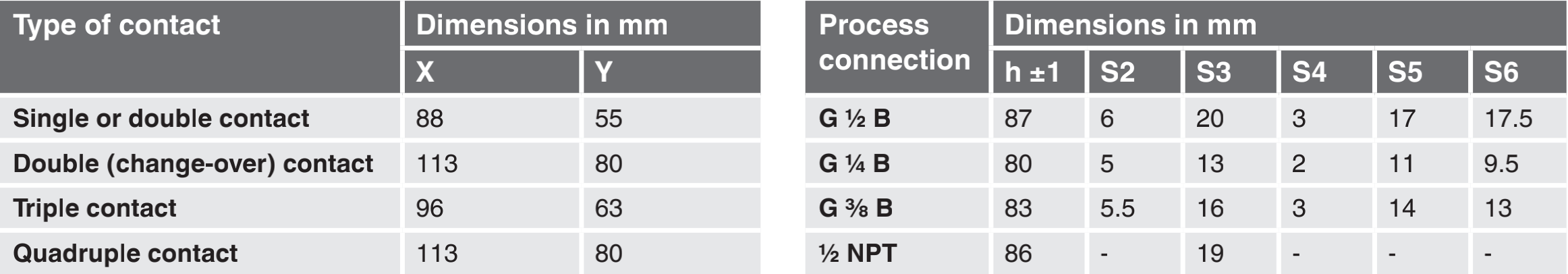

Dimensions

Specifications for instruments with magnetic snap-action contact model M12

The recommended setting range of the contacts is 25 ... 75 % of the scale (0 ... 100 % on request).

Contact material (standard): Silver-nickel, gold-plated

Recommended contact load with resistive and inductive loads

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
