Squeeze Membrane Filter Press Plate And Frame Belt Dehydrator Chamber Diaphragm

The Fully Automatic Box-Type Diaphragm Filter Press Reduces The Moisture Content Of The Municipal Wastewater

The automatic pulling plate filter press adopts PLC control, which can perform various operations on the filter press (such as pressing the filter plate, merging and opening the liquid collecting plate, loosening the filter plate, and pulling the filter plate), and has a remote control interface. , can be controlled by remote automatic operation.

A. Open flow filtration: There is a water nozzle on the liquid outlet hole below each filter plate, and the filtrate flows out from the water nozzle intuitively.
B. Undercurrent filtration: There is a liquid outlet channel hole below each filter plate, and the liquid outlet holes of several filter plates are connected to form a liquid outlet channel, which is discharged from the pipeline connected with the liquid outlet holes below the thrust plate. When the filter cake needs to be washed, there are open flow one-way washing and two-way washing, and dark flow one-way washing and two-way washing.

A. Open flow one-way washing is that the washing liquid enters in turn from the washing liquid inlet hole of the thrust plate, passes through the filter cloth and then passes through the filter cake, and flows out from the non-porous filter plate. At this time, the outlet nozzle of the perforated plate is closed. state, the liquid outlet nozzle of the non-orifice plate is in the open state.
B. Open flow two-way washing is that the washing liquid enters the holes on both sides above the thrust plate and washes it twice, that is, the washing liquid is washed from one side and then washed from the other side, and the outlet of the washing liquid is opposite to the inlet. Angle direction, so it is also called two-way cross washing.
C. Undercurrent unidirectional flow washing is that the washing liquid enters the perforated plate in turn from the washing liquid inlet hole of the thrust plate, passes through the filter cloth and then passes through the filter cake, and flows out from the non-porous filter plate.
D. Undercurrent two-way washing is that the washing liquid is washed twice successively from the two washing liquids on both sides above the stop plate, that is, the washing starts from the first

Our service:

1. Professional person on line to advise you the most suitable type of machie according to your requirement.
2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3. Arrange the schedule if you pay a visit to our factory
4. Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

Technical Features

Inverter motor pull plate;
Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.

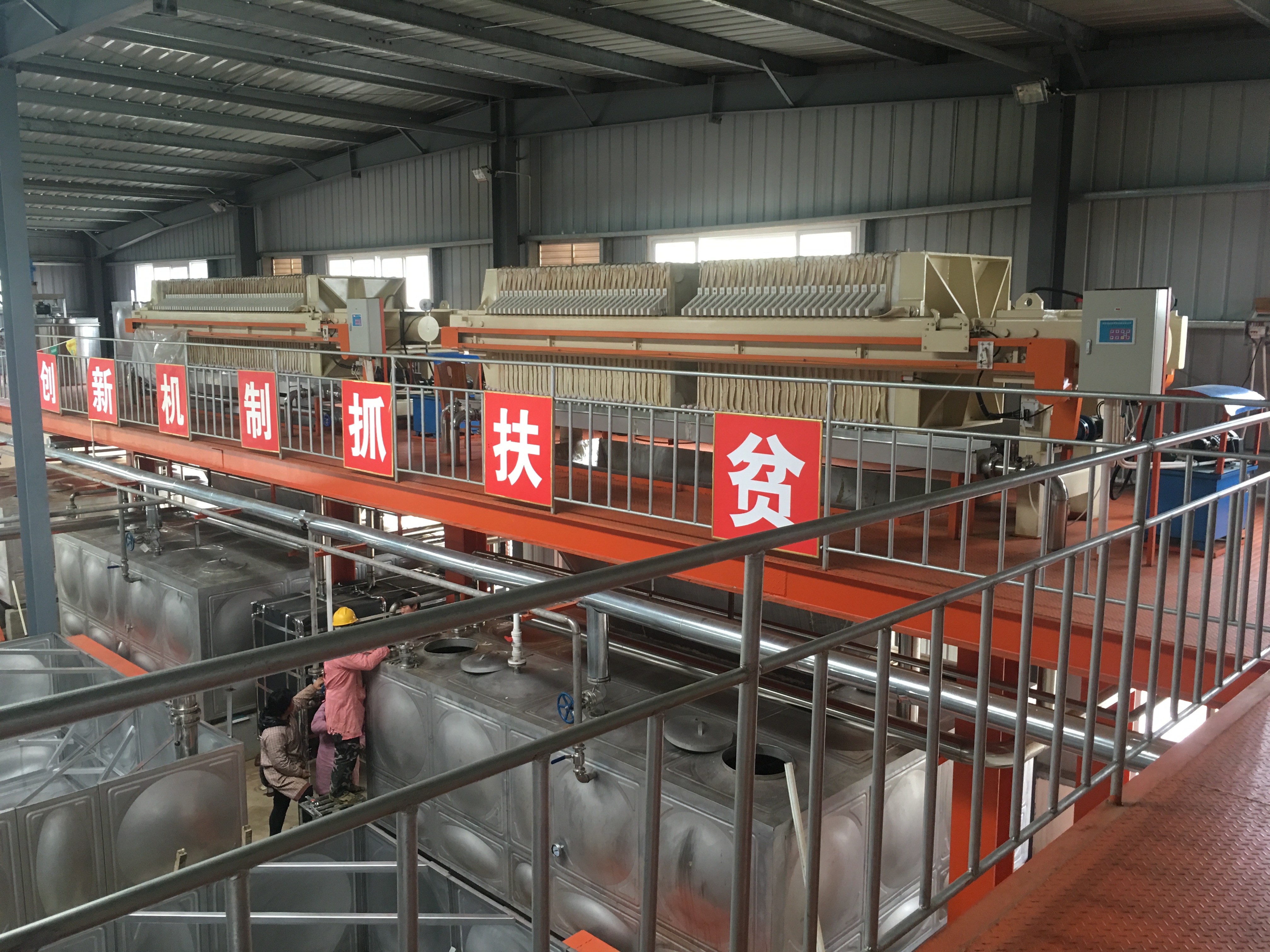

Application Fields and onsite pictures:

Mining
Chemical
Pharmaceutical
Waste water treatment

Model	Filter Area	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	Foundation Size(mm)
Model	Filter Area	Plate size	Cake thickness	Filter chamber volume	Plate NO	Filtration pressure	Motor power	Weight	Dimensions LWH(mm)	L	B	D	H
X_M^AZ30/870−30U_K^B	30	870*870	30	460	23	0.6	2.2	2680	318014001230	2360	700	1380	785
X_M^AZ40/870−30U_K^B	40			595	30			3050	357014001230	2750
X_M^AZ50/870−30U_K^B	50			748	38			3456	411014001230	3290
X_M^AZ60/870−30U_K^B	60			902	46			4003	455014001230	3730
X_M^AZ70/870−30U_K^B	70			1056	54			4584	499014001230	4170
X_M^AZ80/870−30U_K^B	80			1210	62			5082	543014001230	4610
X_M^AZ50/870−30U_K^B	50	1000*1000	30	736	28	≥0.6	4	4128	404015001400	3120	780	1480	870
X_M^AZ60/870−30U_K^B	60			889	34			4636	446015001400	3480
X_M^AZ70/870−30U_K^B	70			1041	40			5143	476015001400	3840
X_M^AZ80/870−30U_K^B	80			1193	46			5651	512015001400	4200
X_M^AZ100/870−30U_K^B	100			1475	57			6628	578015001400	4860
X_M^AZ120/870−30U_K^B	120			1777	69			7644	650015001400	5580
X_M^AZ100/1250−30U_K^B	100	1250*1250	30	1468	36	≥0.6	4	8307	502018001600	3970	850	1740	995
X_M^AZ120/1250−30U_K^B	120			1746	43			9308	547018001600	4430
X_M^AZ140/1250−30U_K^B	140			2063	51			10455	599018001600	4950
X_M^AZ160/1250−30U_K^B	160			2341	58			11492	645018001600	5400
X_M^AZ180/1250−30U_K^B	180			2619	65			12494	690518001600	5860
X_M^AZ200/1250−30U_K^B	200			2896	72			13504	736018001600	6310
X_M^AZ220/1250−30U_K^B	220			3214	80			14652	788018001600	6830
X_M^AZ250/1250−30U_K^B	250			3650	91			16227	860018001600	7550
X_M^AZ200/1500−35U_K^B	200	1500*1500	35	2998	49	≥0.6	7.5	20030	640022001900	5250	1170	1990	1070
X_M^AZ250/1500−35U_K^B	250			3594	61			22978	722522001900	6090
X_M^AZ300/1500−35U_K^B	300			4347	74			26026	813022001900	6990
X_M^AZ350/1500−35U_K^B	350			5043	86			29220	895022001900	7840
X_M^AZ400/1500−35U_K^B	400			5796	99			32574	988022001900	8750
X_M^AZ450/1500−35U_K^B	450			6492	111			35586	1069022001900	9590
X_M^AZ500/1500−35U_K^B	500			7187	123			38606	1156022001900	10430
X_M^AZ600/2000−40U_K^B	600	2000*2000	40	8926	85	≥0.6	15	49000	1110030002500	9200	1660	2000	1050
X_M^AZ700/2000−40U_K^B	700			10380	99			53000	1220030002500	10300
X_M^AZ800/2000−40U_K^B	800			11210	107			57000	1335030002500	11450
X_M^AZ900/2000−40U_K^B	900			13290	127			61000	1450030002500	12600
X_M^AZ1000/2000−40U_K^B	1000			14740	141			65000	1560030002500	15600
