Home > Titanium >

Titanium Electrode Plate mmo Irdium Oxide Coated 0.5-25 Micron Anode

Categories	Titanium Electrode
Brand Name:	CSTI
Model Number:	mmo irium oxide coated titanium anodes for Sodium hypochlorite generator
Certification:	ISO9001
Place of Origin:	China
MOQ:	1 Piece
Price:	$10.00 - $33.00/ Piece
Payment Terms:	T/T, L/C
Supply Ability:	1000 Piece/Pieces per Month
Delivery Time:	10~15 work days
Packaging Details:	1. Packing with moisture-proof paper; 2. Packing with foam plastics in all sides; 3. Packing products in standard wooden cases.
Substrate:	Gr1 /Gr2 as basement
Coating:	RuO2 / RuO2-IrO2
Type:	Electrochemistry Equipment
Size:	Customer Designed
Coating Thickness:	0.5-25 Micron
Color:	Black
Application:	water treatment Sodium hypochlorite generator
Advantage:	Effective.long Working Life.best

Contact Now

Add to Cart

Company Info.

Baoji City Changsheng Titanium Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Titanium Electrode Plate mmo Irdium Oxide Coated 0.5-25 Micron Anode

we supply Gr1 mmo irium oxide coated titanium electrode plate for Sodium hypochlorite generator

Mixed metal oxide (MMO) titanium electrode plate are devices with useful properties for use as anodes in electrochemical electrolysis reaction.
The term refers to electrodes in which the surface contains several kinds of metal oxides.

Substrate

Titanium ASTM B265 Gr1

Titanium	C	N	H	Fe	O	Residual	Residual	Ti
Gr1	≤0.08%	≤0.03%	≤0.015%	≤ 0.20%	≤0.18%	≤0.1%(each )	≤0.4%(each )	balance

Physical Performance

Grade	State	Mechanical Properties at room temperateure no less than or equal to
Grade	State	Mpa(ksi)	Mpa(ksi)	%	%
Gr.1	Annedling (M)	241(35)	172(50)	24	30
Gr.2		345(50)	276(40)	20	30
Gr.3		448(65)	379(55)	18	30
Gr.4		552(80)	483(70)	15	25
Gr.5		896(130)	827(120)	10	25
Gr.7		345(50)	276(40)	20	30
Gr.9		621(90)	483(70)	15	25
Gr.12		483(70)	345(50)	18	25

Coating

Ruthenium and Iridium base as well as other valve and active meta

Technical Highlight

a) Improve and adjustable continuously coating system to customize precision products for every customer
b) Parent Institute(Northwest Institute for Non-ferrous Metal) materials processing combined perfectly with Changsheng own coating formula.
c) Excellent welding technique
d) Professional and practicable design coception
e) Adapt to polar reversal of small electrolysing systme

Application

Producing free chlorine from saltwater in swimming pools, in electrowinning of metals, in printed circuit board manufacture,
electrotinning and zinc electro-galvanising of steel, as anodes for cathodic protection of buried or submerged structures.

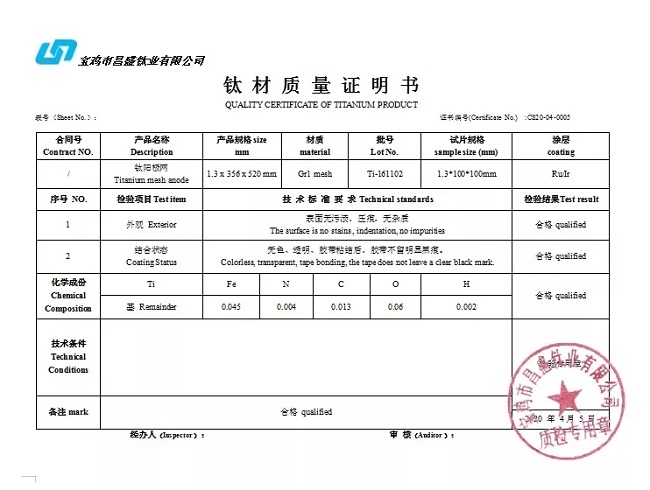

Our test and report

MMO Coating types:

Ru-Ti oxide mixed, Ru-Ir oxide mixed, Ru-Ir-Sn oxide mixed, Ru-Ir-Pt oxide mixed, Ir-Ta oxide mixed, IrO2,Platinum, PbO2.

Baoji city changsheng can provide Life Test

Coating X-Ray Test

Coating Thickness Test

Helium Leak Detection Test,

Contact Resistance Test

Performance Test and other test.

Tag: Titanium Electrode Plate, mmo Irdium Oxide Coated, titanium anodes, Sodium hypochlorite generator

Product Tags:

Irdium Oxide Coated Titanium Cathode Plate

25 Micron Titanium Cathode Plate

0.5 Micron ti anode

Titanium Electrode Plate mmo Irdium Oxide Coated 0.5-25 Micron Anode
