Customized ISUZU Brand Euro 5 600P day old chicks transported truck for sale, Professional poultry carrier day-old chick

Categories day old chick transported truck
Brand Name: ISUZU
Certification: CCC, ISO 9001
Place of Origin: China
MOQ: 1 unit
Price: negoitiable
Payment Terms: T/T, L/C
Supply Ability: 20units/month
Delivery Time: 20days
Packaging Details: bulk package,
color: different color upon request, free to paint company logo
price: high quality factory direct sale price
truck chassis: ISUZU 600P 4*2 LHD diesel engine truck head
refrigerated reefer unit: High quality Chinamade or USA CARRIER/THERMO KING refrigerated unit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized ISUZU Brand Euro 5 600P day old chicks transported truck for sale, Professional poultry carrier day-old chick


Customized ISUZU Brand Euro 5 600P day old chicks transported truck for sale, Professional poultry carrier day-old chicks transporter truck ISUZU brand


Customized ISUZU brand 130hp diesel day old chick transported vehicle, adopts ISUZU 600P 4*2 LHD single row driver cab, ISUZU MSB 5 speed manual gearbox, 2-2.5tons front axle/4.8tons rear axle, 7.00R16 rail tires, original air conditioner and power steering, etc.


The dimension(L*W*H) of ISUZU 600P 130hp Euro 5 diesel day old chicks transported truck is 5000×1900×1800(mm), while the overall dimension(L*W*H) of ISUZU 600P day old chicks truck is 7000*2130*3000(mm). Client choose to install USA CARRIER/THERMO KING refrigerated reefer unit( the lowest temperature is up to -15 degree.)

Details of ISUZU 600P day old chicks transported truck is as below.

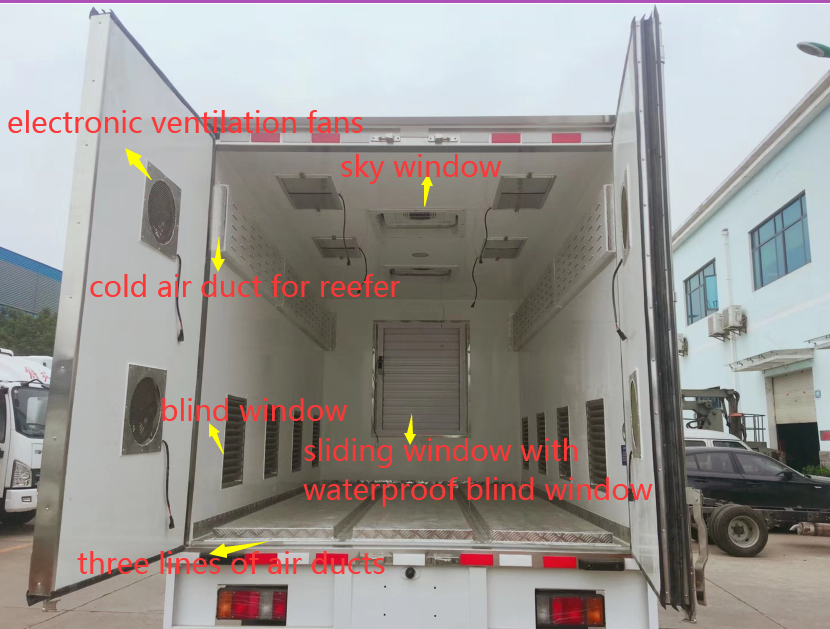

1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,4-5 sets of blind windows with sliding doors for the left and right van sides
4, each 2 sets of electronic ventilator fans for the front and rear plate; each 4 sets of electronic ventilator fans for the van top


5, Top mounted sky window* 3 sets
6, two line of air duct installed on the floor air flow
7, China made high quality USA CARRIER/THERMO KING vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -15 degree, adjusted at the driver cab)
8, two line of cold air ducts on both van body.


If you're interested in our day old chick transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

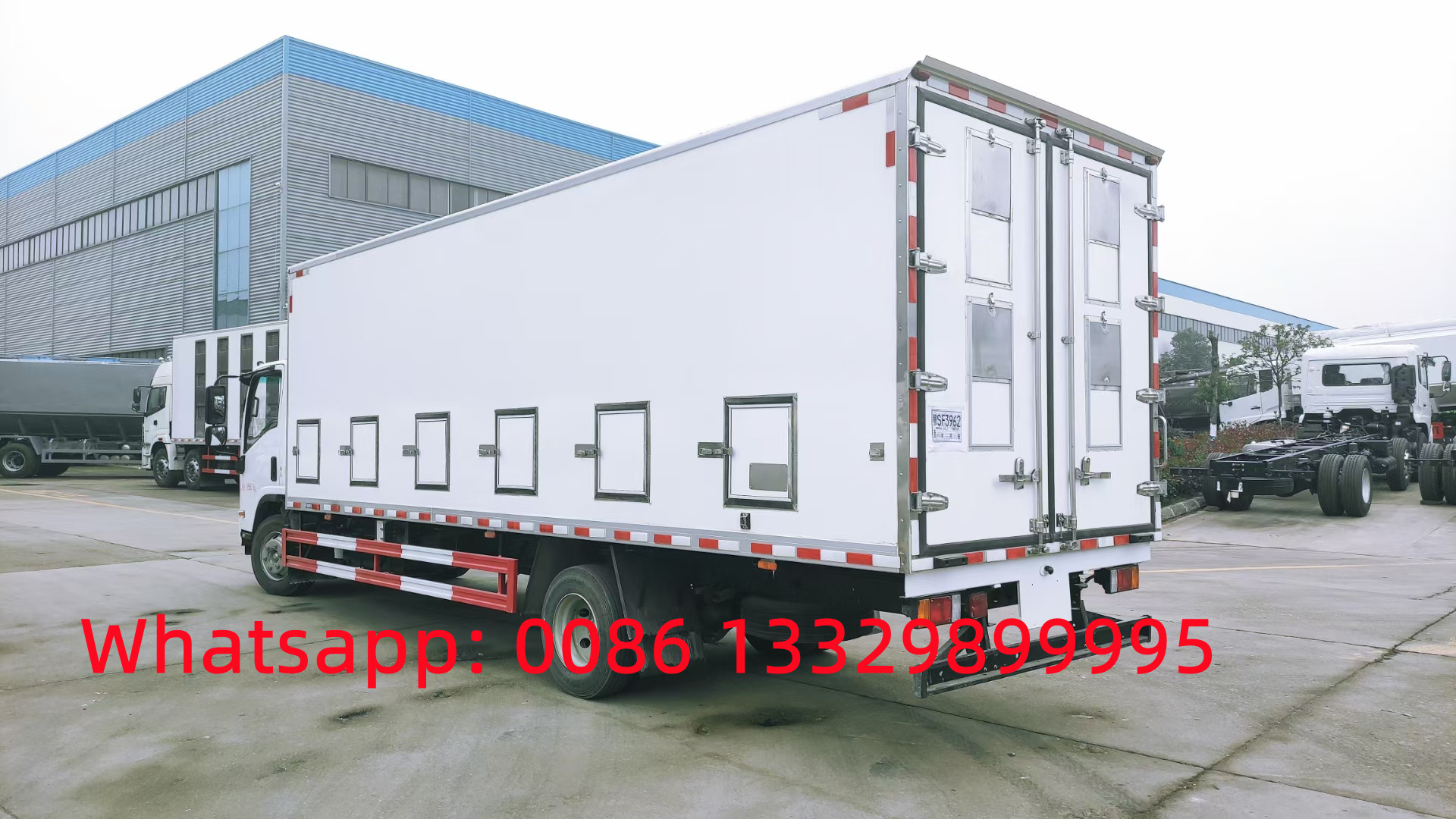

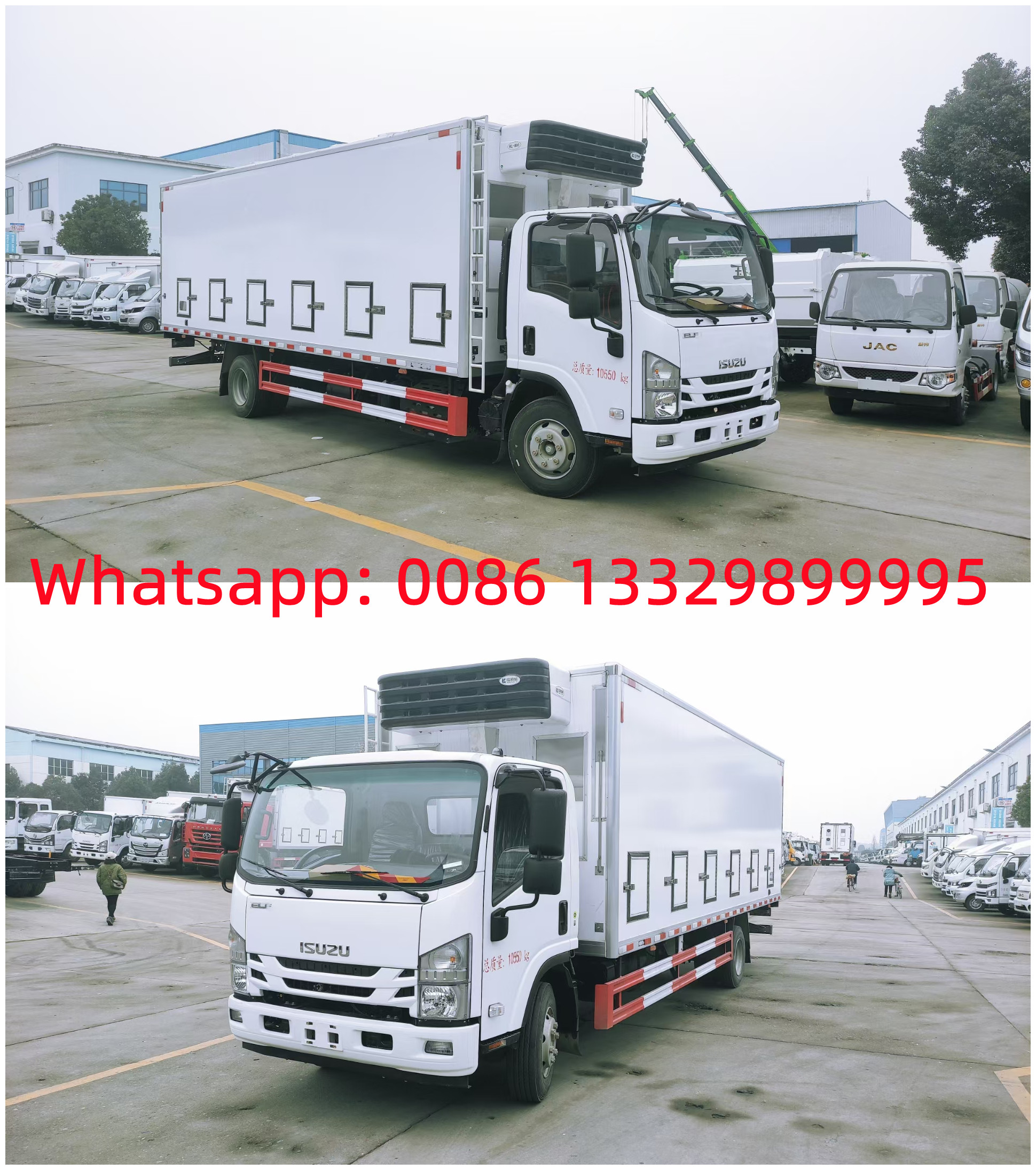

More pictures of ISUZU 600P 4*2 LHD 5M length 30,000 day old chicks transported vehicle is as below.

Main technical parameters of ISUZU Brand 600P day old chicks transported truck is as below.

Overview
Product nameIsuzu Brand 4*2 LHD day old chick transported truck(5tons)
Dimension(L*W*H)(mm)7000*2130*3000
Total mass(kgs)6795
Rated payload(kgs)3310
Kerb weight(kgs)3470
Driver cab seats3(driver included)
Approach/departure angle(°)19/13
The parameters of chassis
Truck chassis manufacturerISUZU
Driving type4*2 LHD(Left hand drive)
Wheelbase(mm)3815
GearboxISUZU MSB 5 speed manual gearbox
Front/rear track(mm)1685/1520
Tyre specification7.50R16*6+1(spare)
Front/rear suspension(mm)1110/2015
Leaf Spring number3/3+2
Driver cab A/CEquipped
The parameters of engine
Engine manufactuer/modelISUZU 4KH1CN5HS
Engine rated power130hp/96KW
Fuel typeDiesel/oil
Displacement/capacity(ml)2999
Emission standardEuro 5
Cylinders4 cylinder in line
Max .torque290N.m
Velocity1500rpm
The parameters of van body
Van box body dimension(L*W*H)(mm)5000*1800*1900
Material2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS
Rubber sealingEquipped
Van body skeleton rimAluminum
Doorframe and locksStainless steel material
LightingLED lights
Cooling systemCARRIER reefer unit(model: C-500)
VentilationsBoth van body sides total with 8 windows(4*2), ceiling 3 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents

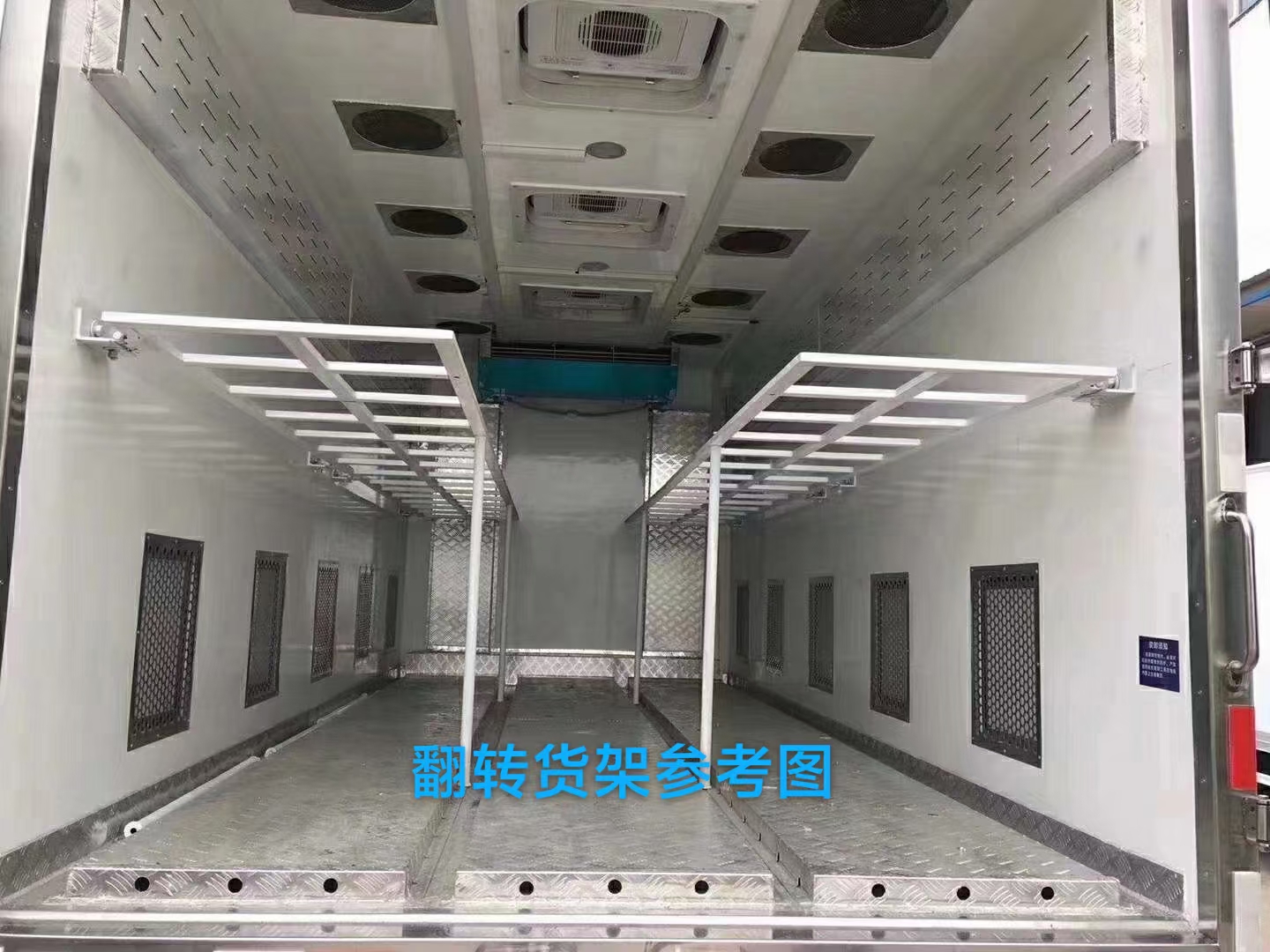

ShelvesTwo sides and tiltable

Chicks transporter truck is mainly used to transport baby chicks. The material and main structures are very similar to common refrigerated trucks, with FRP inside and outside plate, and middle material of box plate is PU foam insulation material, so it has very good thermal insulation capacity. The ventilation system is very important: blind window, electric fans, hot and cold air aisle, front air inlets. The heating system: for some cold areas, the box body will be equipped with heating device to warm the inside of box body. The cooling system: for the inside temperature of box body, commonly should be maintained at 10~20℃ which is the best comfortable temperature for chicks. The installed refrigeration unit lowers the temperature inside the compartment under the hot temperature.

Quality Customized ISUZU Brand Euro 5 600P day old chicks transported truck for sale, Professional poultry carrier day-old chick for sale
