Purple Heat Shrink Insulation Tube 2x PE 6mm Fire Resistant

Categories Heat Shrink Insulation Tube
Brand Name: Long
Model Number: 6mm
Certification: ISO
Place of Origin: China
MOQ: 1m
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Delivery Time: 1-9days
Packaging Details: Roll/Carton
Price: 0.033
Material: PE
Color: Purple
MOQ: 10meter
Wall: Ultra Thin Wall
Glue: without glue
Flame: Flame Retardant
Tensile strength(MPa): >10.4
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

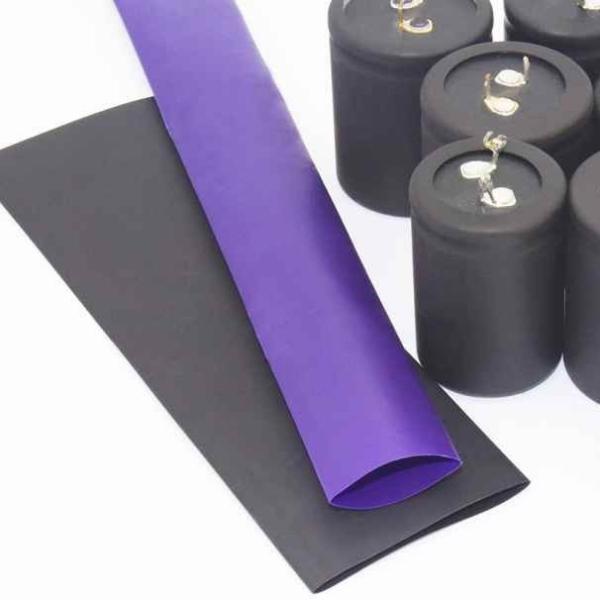

Purple Heat Shrink Insulation Tube 2x PE 6mm Fire Resistant

Purple PE Flame Retardant Multi Purpose Heat Shrink Tubing With Shrink Raito 2X


Flame retardant,multi-purpose

heat shrink tubing


Features


• Flexible


• Suitable for various applications


• Continuous Operating Temperature:-55°C to 135°C


• Fully shrink temperature: 120°C


• RoHS compliant


• Meet SAE-AMS-DTL


Dimensions


SizeAs SuppliedAfter RecoveryStandard Package
InchmmInternal Diameter mmInternal Diameter mmWall Thickness mmSpool Lenqth M/spooF
3/641.0N1.20W0.600.41±0.10200
1/161.55=1.60W0.800.43±0.10200
3/322.5N2.40W1.200.51±0.10200
1/83.0N3.20^1.600.5110.10200
3/164.5^4.80<2.400.51±0.10100
1/46.0N6.4.W3.200.64±0.10100
3/89.0N9.50W4.800.64±0.10100
1/2125=12.7<6.400.64±0.10100
3/418N19.1W9.500.76±0.15100
125N25.4W12.70.89±0.1550
5/432N32W15.90.8910.1550
3/238N38W19.11.00±0.1550
250N51<25.41.15±0.1525
375N76W38.11.27±0.2025
4100N102W50.81.40±0.2025
512025W63.51.40±0.2525

Technical Data


I PropertyTest MethodTypical Performance I
Tensile strength(MPa)ASTM D 2671^10.4
Ultimate elongation(%)ASTM D 2671N200
Tensile strength after heat aged (Mpa)175°CX168h>7.3
Ultimate elongation after heat aged (%)175°CX168hN100
Longitudinal change(%)ASTM D 2671-5%~+5%
FlammabilityASTM D 2671 C methodVW-1
Voltage withstandUL 224,2500V,60sNo breakdown
Heat shockUL224,250°Cx4hNo cracks, fl owing or dripping
Dielectric strength (kV/mm)ASTM D 149M15
Volume resistivity (Q-cm)ASTM D876mio"



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
