| Categories | Weighing Module |
|---|---|
| Brand Name: | FIBOS |
| Model Number: | FA821A |
| Certification: | ISO CE RoHS |
| Place of Origin: | Jiangsu, China |
| MOQ: | To Be Negotiated |
| Price: | To Be Negotiated |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Pieces per Month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | 1.Opp bag 2.Custom box 3.According to your request |
| Product name: | Weighing Module |
| Capacity: | 10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000kg or customized |
| Rated output: | 2±0.2%mV/V or customized |
| Creep(30min): | ≤0.15%F.S. or customized |
| Non-linearity: | ≤0.17%F.S. or customized |
| Cable size: | ⌀4X4000mm or customized |

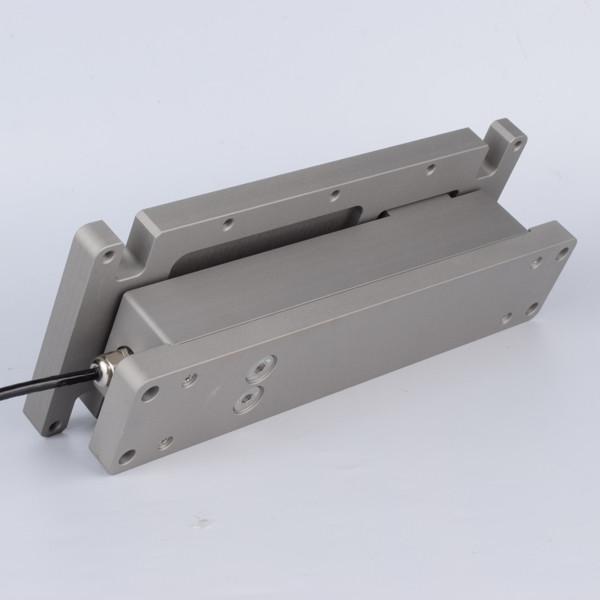

Parallel Beam Weighing Module
1. Descriptions
Parallel Beam Weighing Module FA821A is a model of our brand FIBOS FA8-Series, it belongs to FA821 which is in Weighing Module category, FA821A can be used to measure weight ranges from 10kg,30kg,50kg,100kg,300kg,500kg,1000kg,3000kg,5000kg,10000kg,30000kg,50000kg,100000kg,300000kg up to 500000kg or customized capacity.
2. Specifications
| Product name | Weighing Module |
| Capacity | 10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000kg or customized |
| Rated output | 2±0.2%mV/V or customized |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.15%F.S. or customized |
| Non-linearity | ≤0.17%F.S. or customized |
| Hysteresis | ≤0.15%F.S. or customized |
| Repeatability | ≤0.16%F.S. or customized |
| Input resistance | 385±10Ω |
| Output resistance | 350±1Ω |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -40~65 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀4X4000mm or customized |
| IP Class | IP65 or customized |
3. Dimension
Need to be customized
4. Application
Parallel Beam Weighing Module FA821A can be used for Ship scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
|
