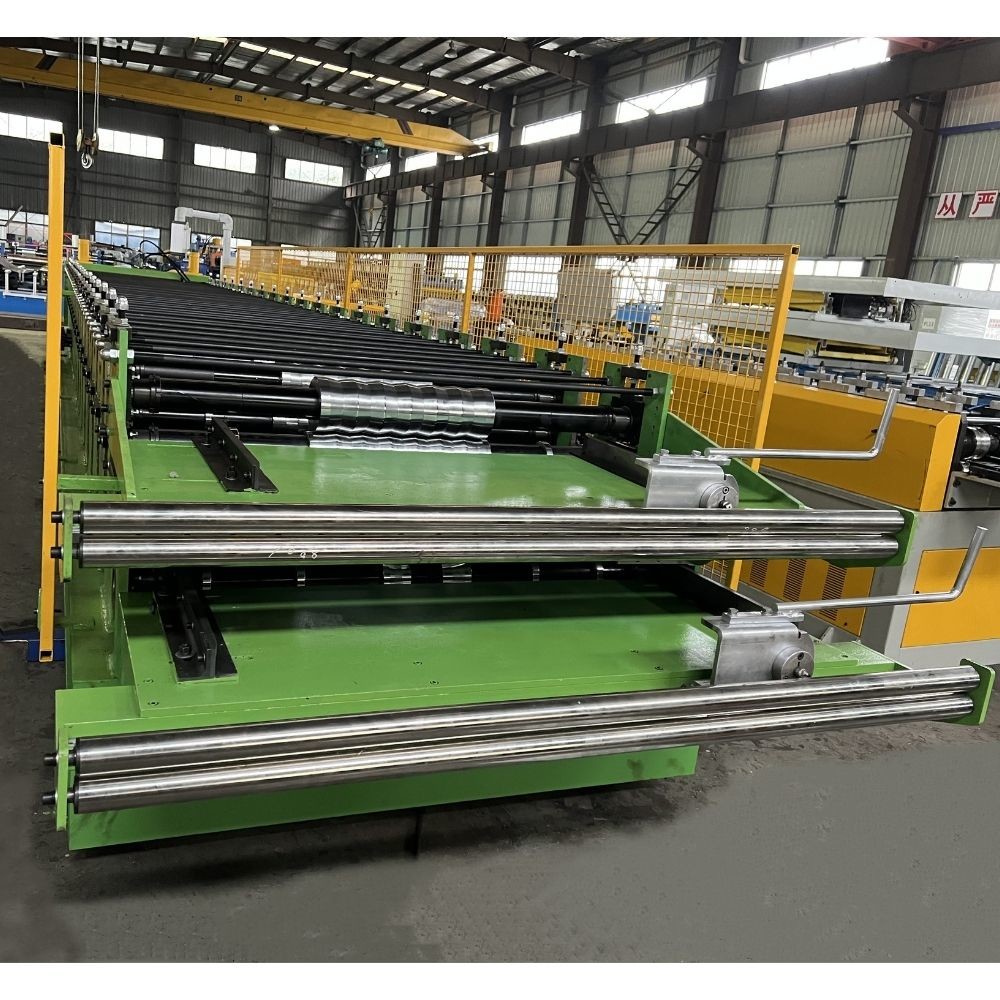

Galvanized Steel Coating Roof Panel Roll Forming Machine 380V High Speed 5.5kw

Galvanized Steel Coating Panel roll forming machine

Technological process

Uncoiling—Feedingwithguide——PreCutting——Rollforming—Cutting—Products collecting

Coating=Galvanized Iron/Zinc-Aluminium
Thickness=0.20-0.7mm
Sheet width=1000mm (Input)
Sheet width=840mm (Output)
Yield Strength=550Mpa

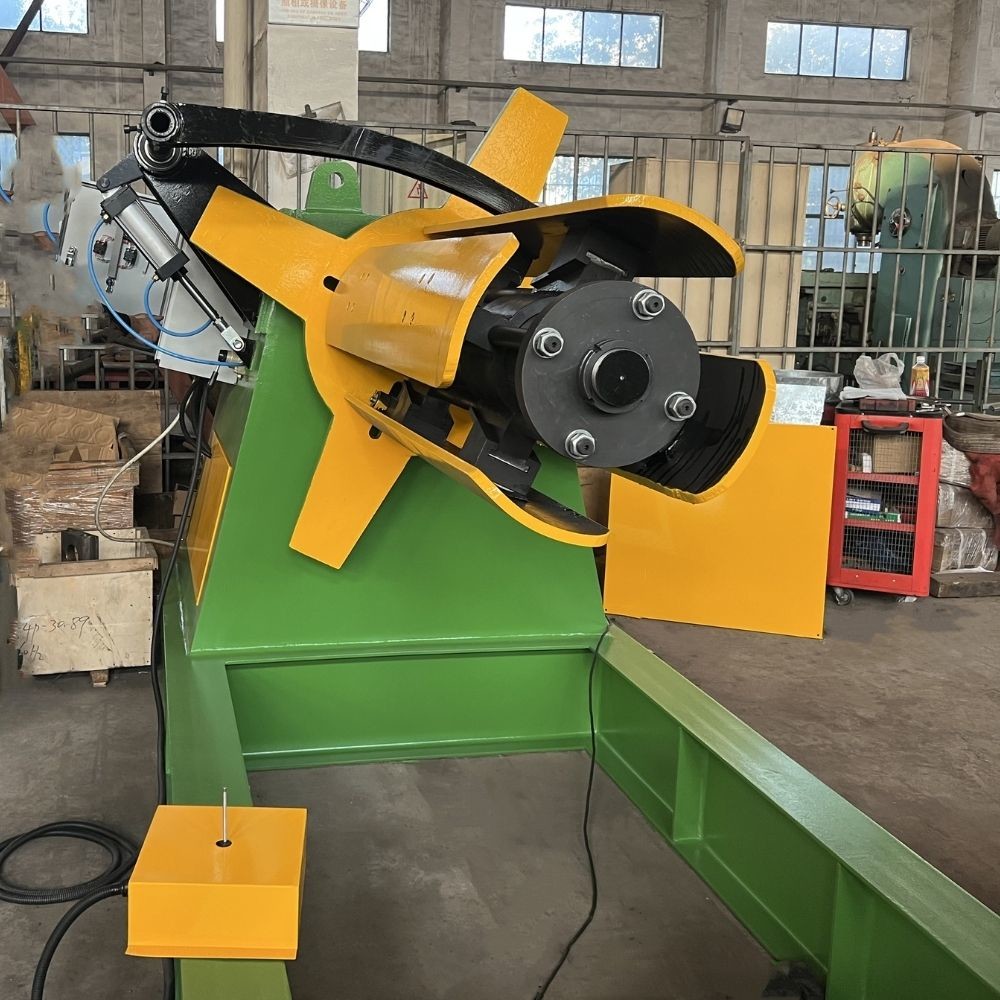

hydraulic de-coiler

Coil inner Diameter: ￠460-520mm

Max out diameter of the coil:￠1500mm

Max Coil Width: 1000mm

Control box: cantilever

Electrical control system part

(1) Power supply :380V, 50hz, 3Phase(can be adjusted according to requirements)

(2) automatic measurement of length and quantity;

(3) Length and quantity are controlled by PLC

(4) The length error correction is convenient.

(6) Control panel: push-button switch and touch screen

(7) Length unit: mm (open the control panel)

some photos about productions:

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can

through negotiation for to solve the problems,and we supply the technical support for the whole life of the

equipment.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
