RFID Reader Flap Barrier Turnstile AC220V 110V 0.6s Open Speed Anti Trailing

Dry Contact Signal Flap Barrier Gate 304 SUS Turnstile Security Gate

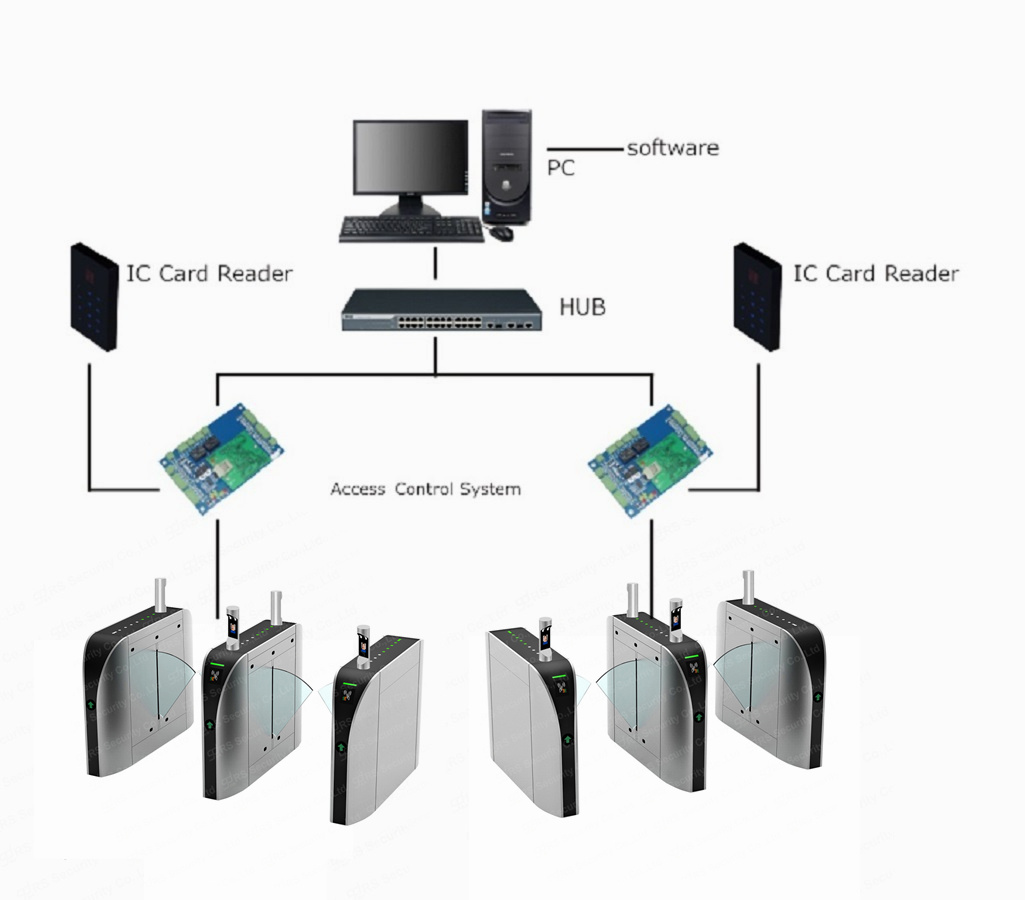

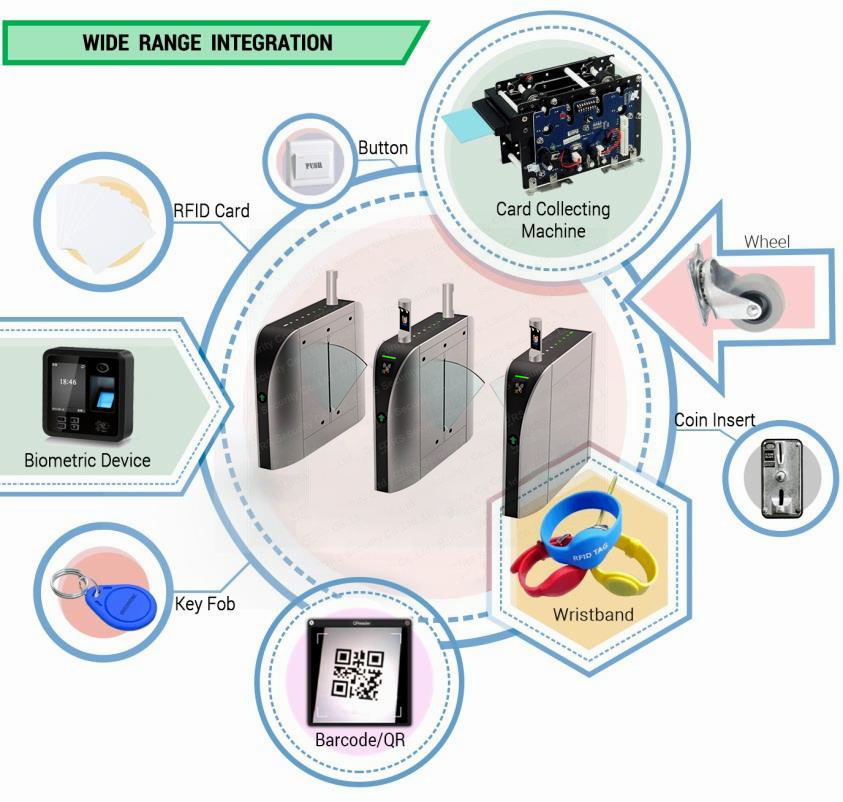

Flap Turnstiles RS 288-F1 housing shell is made of 1.5-2.0mm thinckness 304# stainless steel.Flap Barrera RS 288-F1 is consist of led lamp,electric circuit,battery,buzzer,mechanism,servo motor,wings,sensors and so on.Subway Turnstiles RS 288-F1 Also Called( Fare Turnstile,Flap Barrier,Flap Turnstiles )etc.Flap Torniquete RS 288-F1 due to its aesthetic look, Flap Barreira is widely installed in high-end places. such as Stadiums,brt station,University,office,metro station,school,gym,supermarketFlap Barriere RS 288-F1 with standard fire interface,wing open for evacuation even power is not cut off when fire alarm triggered.Flap Barrera RS 288-F1 memory can be set,swipe cards several times for group pass,fast transit speed.Subway Gates RS 288-F1 has sufficient space, which can mount with any type of external device.( e.g.:coin insert,counter,wheel,barcode/QR reader,display,reader,push button,card collector) and so on.Flap Turnstiles RS 288-F1 has standard relay signal, which can be integrated with any kind of third-party access control system: Smart Card,Fingerprint,Face Recognition,Biometeric Reader,IC/ID Card Reader,RFID etc.Flap Barrier RS 288-F1 wing color,casing size and sensor numbers are customized.

1.Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering
complete entrance control solutions.
3.Malfunction self-detection, which is easy for operation and maintenance.
4.Operational mode can be set up through the built-in menu on the control panel.
5.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing,
the arms wing will stop its movement to prevent the user from being clamped.
6.Anti-collision function, the flaps will stay close if not receiving the open signal.
7.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency.
It will open automatically in case of emergency.
8.Flaps reset to close position when power resume.
9.Flaps reset to lock position when access time expire.
10.Prevents Invalid/Tailgate/Wrong direction access.
11.LED Array indication for access granted/denied.
12.Compatible with diverse access control devices.
13.Pedestrian flow directions can be single or double directions.
14.RS485 socket is available to connect the computer.

1. Cabinet part:
1.1. Frame material: 304 #, thickness 1.2- 1.5 mm;
1.2. Multi-layer drawing on the surface of the frame;
1.3. The frame is welded by fixtures;
2. Drive Movement part:
2.1. Low noise;
2.2. Movement frame material 6061 profile aluminum;
2.3. The inner guide pulley adopts metal bearings;
3. Electric control accessories:
3.1.Switching power supply adpots brand power supply to make tis operating voltage more stable
3.2. The infrared sensor uses a domestic brand, and the internal parts are imported parts
