| Categories | Air Cooled Diesel Engine |
|---|---|
| Brand Name: | HUAN NENG |
| Model Number: | HP1105F（E） |
| Certification: | CE, ISO 14001, ISO 9001 |
| Place of Origin: | Chongqing, China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20000 sets per month |
| Delivery Time: | 7-15 work days |
| Packaging Details: | Carton box packing for each set |
| Condition: | Entirely New |
| Weight: | 27kg |
| Warranty: | 12months or more |
| Dimension(l*w*h): | 53*49*58cm |
| Feature: | Convenient Price |
3000rmp Manufacturer's Outlet Convenient Price Diesel Engine

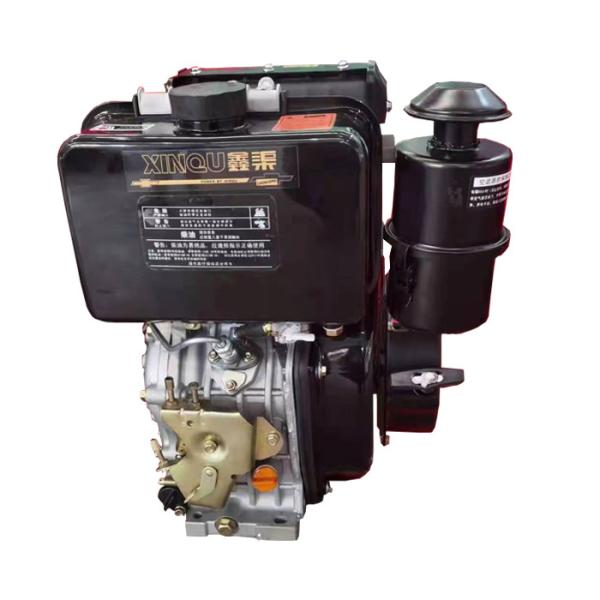

Air-Cooled Diesel Engine
Advantage,
1. Our engines have a number of patents, high product performance and collaborations with domestic and foreign academic institutions.
2. High-end assembly, high-quality components, technologically advanced raw materials from NSK and the wafer group
3. lightweight design, compact effect, high output power in the same volume, can meet a wide range of applications
The Details of this diesel engine
| 型号 Model | HN173FB | HN178F | HN186FA | HN188FA | HN192F | HN195F |
| 类型 type | 单紅,四沖程,风冷,立式' 直原式 | |||||
| 燃烧系统 Combustion system | 直喷 | |||||
| 缸径X行程 The cylinder diameter x Trip | 73x59 | 78x62 | 86x72 | 88x75 | 92x75 | 95x75 |
| 排量(L) Displacement | 0.247 | 0.296 | 0.418 | 0.45€ | 0.499 | 0.532 |
| 压缩比 Compression Ratio | 20:1 | 20:1 | 19:1 | 20:1 | 19:1 | 19:1 |
| 發定功率/转速(Kw/rpm ) Rated Power/speed | 3.2/3000,3.6/3600 | 3.7/3000.4.0/3600 | 5.8/3000,6.6/3600 | 6.6/3000.7.5/3600 | 7.5/3000,8.2/3600 | 8.5/3000,9.2/3600 |
| 最大功率/转速(Hp/rpm ) Max Power/Speed | 4.3/3000,4.8/3600 | 5.0/3000,5.5/3600 | 7.9/3000,9.0/3600 | 9.0/3000,10.2/3600 | 10.2/3000,11.2/3600 | 10.2/3000,11.2/3600 |
| 额定转速 Rated Speed | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
| 启动方式 Start The Way | F:手启动 E:电启动 F: Manual start e: electric start | |||||
| 油箱容积(L) Tank Volume | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| 润滑油容员(L ) Lubricating Oil Capacity | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| 油耗(L/H) Fuel Consumption | w1.2 | W1.41 | W2.15 | w2 | w2 | w2 |
| 燃油牌号 Fuel Brand | 柴油:0# (§) , -10# (冬) Diesel: 0 x 10 (summer), - 10 x 10 (winter) | |||||
| 润滑油牌号 Lubncating Oil Brand | SAE10W30 (CD级以上) Sae10w30 (above CD level) | |||||
| 外型尺寸LXWXH ( mm ) Dimensions | 332x376x415 | 385x420x450 | 420x440x495 | 420x440x495 | 420x440x495 | 420x440x495 |
| 净車(kg) The Net Weight | 手启动:28电启动:32手启动:33电启动:38 Manual start: 28 Manual start: 33 Electric start: 32 Electric start: 38 | 手启动:47电启动:53手启动:48电启动:53 Manual start: 47 Manual start: 48 Electric start: 53 Electric start: 53 | 手启动:50电启动:55 Manual start: 50 Electric start: 55 | 手启动:50电启动:55 Manual start: 50 Electric start: 55 | ||
|
