Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission

QRL series Round Flange Mount Ratio 3-100 Transmission Planetary Gear Box

Characteristics:

1. Hole output structure,easy installation.

2. Straight tooth drive ,single cantilever structure.simple design,economic price.

3. Working steady. Low noise.

4. Low return backlash. Can suit most occasion.

5. The input connection specifications are complete and there are many choices.
6. Keyway can be opened in the force shaft.
7. Square mount flange output,high precision,high torque.
8. Speed ratio range:3-100
9. Precision range:8-16arcmin
10. Size range:60-160mm

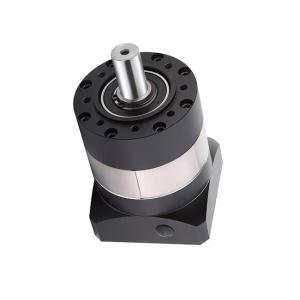

Products show:

Our advantage:

1.Output threaded connection, standard installation,universal usage.
2.Single cantilever structure.simple design,economic price
3.Working steady. Low noise.
4.Round flange output,threaded reverse connection,standardized size.
5.Keyway can be opened in the force shaft.
6.The output connection specifications are complete and there are many choices
7.Backlash 8-16 arcmin. Can suit most occasion.

Frequently Asked Questions:

Q: In what areas are your products mainly used?

A: At present, we mainly specialize in precision planetary gear reduction engines. Precision planetary reducer is mostly used in the field of automation, such as medical equipment, 3D printers, door opening machines, tapping machines, CNC lathes and a series of automation equipment.

Q: How to choose the right planetary gearbox?

A: First of all, we need you to provide relevant parameters. If you have motor drawings, it will allow us to recommend a suitable gearbox for you more quickly. If not, we would like you to provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.

Q: Do you offer customized services?

A:Yes, we offer a custom service. You just need to put forward your needs, we will do our best to provide you with a plan, make plans, do our best to meet your needs.

Q: What is the price?

A: The main determinant of the price of each product is the quantity of the order. You can communicate with us and let us know each other. We believe that our price, product quality and our service will make you satisfied.
